Automatic Plastic Granules Making Machine For Recycled PET Bottle Chip Flake SJSL65B
Automatic Plastic Granules Making Machine For Recycled PET Bottle Chip Flake SJSL65B
Automatic Plastic Granules Making Machine For Recycled PET Bottle Chip Flake SJSL65B
Automatic Plastic Granules Making Machine For Recycled PET Bottle Chip Flake SJSL65B
Automatic Plastic Granules Making Machine For Recycled PET Bottle Chip Flake SJSL65B
Automatic Plastic Granules Making Machine For Recycled PET Bottle Chip Flake SJSL65B
Automatic Plastic Granules Making Machine For Recycled PET Bottle Chip Flake SJSL65B
Automatic Plastic Granules Making Machine For Recycled PET Bottle Chip Flake SJSL65B
Specifications
Brand Name :
Yongjie
Model Number :
SJSL65
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
35-50 days
Packaging Details :
sea worthy film ( or wooden box per requirements)
Screw design :
twin screw extruder
Application :
recycled PET flake less than 20mm
Moisture :
<1%
Overseas engineers :
Available for installation and Comissioning
Screw diameter :
62.4mm
Motor :
90kw
Pelletizing system :
water strand
Capacity :
200-300kg/h
Description

SJSL65B Recycled PET Bottle Chip Flake Plastic Pellet Making Machine

Nanjing Yongjie started to make pet plastic recycling machine since 2005, beside for pet pellets making machine, our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

Quick details

Power:90kw,others available

Screw diameter:62.4mm

Barrel diameter:63mm

L/D:40:1

Output:200-300kg(500-600kg by our SJSL95)

Cutting way: water bath cooling system

Warranty:one year

Lead time:45 days after deposit

Revolution speed:300rpm

Revolution ratio:5:1

Special design : first weak shear of the screw , second increased vacuum system, lower revolution speed of screw as way to maximum decrease the loss of IV of pet

SJSL65 Water Tank Auxiliary Machine

Die head

1).Made of 38CrMoAlA, which has been treated by the azotizing on the surface, HV=950~1100.

2). Hole: 15-∮3.8.

Water tank

1).Width=340mm, depth=200mm,length: 4000mm;

2).Three rubber roll brackets.

Dryer

1). Power: 2.2kw;

2). Made of stainless steel.

Pelletizer

1). Power: 4kw, inverter speed regulation 0-1480rpm;

2). Capacity: 300kg/h;

3). Pineapple cutting way;

4). Air-actuated granulating.

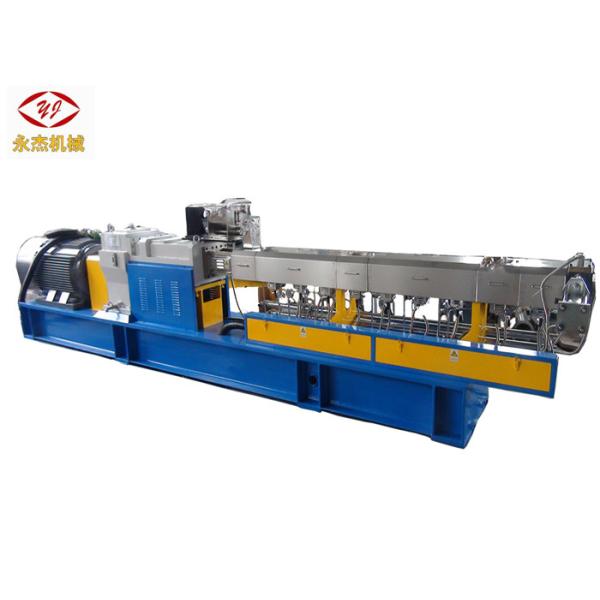

Photo of SJSL65B Recycled PET Bottle Chip Flake Plastic Pellet Making Machine

Automatic Plastic Granules Making Machine For Recycled PET Bottle Chip Flake SJSL65B

Automatic Plastic Granules Making Machine For Recycled PET Bottle Chip Flake SJSL65B

Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

Main advantages of our recycled PET flake granulating machine

1. Lower IV loss due to good screw array and wear shear of it

2. Clean and white color
