ABB Inverter Brand Filler Masterbatch Machine 500rpm Gearbox Revolution Speed
ABB Inverter Brand Filler Masterbatch Machine 500rpm Gearbox Revolution Speed
ABB Inverter Brand Filler Masterbatch Machine 500rpm Gearbox Revolution Speed
ABB Inverter Brand Filler Masterbatch Machine 500rpm Gearbox Revolution Speed
Specifications
Brand Name :
Yongjie
Model Number :
SJSL51
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
35-50 days
Packaging Details :
sea worthy film ( or wooden box per requirements)
Screw design :
twin screw extruder
Cutter :
3kw
Warranty :
one year
L/D :
48:1
Screw diameter :
50.5mm
Inverter brand :
ABB
Motor :
45kw
Capacity :
100-150kg/h
Description

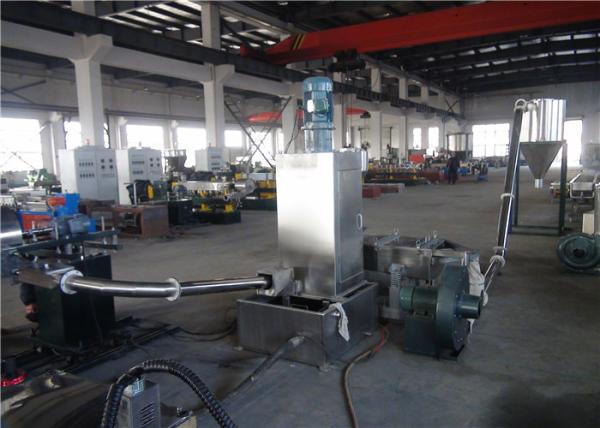

Water Ring Pelletizer Twin Screw Extruder for Masterbatch Plastic Extrustion Machine

Water Ring Pelletizer Application:

1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.

2.LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.

3.PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.

4.PE, ABS, PS, EVA masterbatch etc.

5.ABS, EVA flaming retarding masterbatch etc.

6.PE, PP, PS filling and biodegradable masterbatch, etc.

Quick details of sjsl36 water ring pelletizer

Screw diameter:50.5mm

Screw material:W6Mo5Cr4V2

Barrel diameter:51mm

Barrel material:W6Mo5Cr4V2

Motor power:45kw

Motor brand:SIEMENS

L/D:48:1

Output:200-350kg/h

Gearbox revolution speed:500rpm, reduction rate:3:1

ABB Inverter Brand Filler Masterbatch Machine 500rpm Gearbox Revolution Speed

Pre-sales service
♦1. Inquiry and consulting support.

♦2. Selecting economical and suitable extruder and related machines for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.

♦5. Factory tour & assistance of invitation letter when needed.
Sales service
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
After-sales service
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new product.
♦5. Providing free maintenance for a year.

Scope of supply of sjsl36 water ring pelletizer

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 High speed mixer set 1 50L
1.2 Main feeding system set 1 0.75KW
1.3 SJ36 twin screw extruder set 1 18.5KW, 44:1
1.4 Vacuum venting system set 1 0.75KW
1.5 Water recycling system set 1 0.55KW
1.6 Hydraulic screen changer set 1 0.75KW
2 Electric cabinet set 1
3 Water-ring assembly system set 1
3.1 Die head set 1
3.2 Face cutter set 1 1.5KW
3.3 Water-ring cutting cover set 1
3.4 Centrifugal dehydrator set 1 2.2KW, 3KW
3.5 Production container set 1 3KW
4 Documents set 1

Main Technical Details of Plastic Pelletizing Machine Models

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500
