2000kg/H Biodegradable Filler Masterbatch Machine Customzied Color One Year Warranty
2000kg/H Biodegradable Filler Masterbatch Machine Customzied Color One Year Warranty
Specifications
Brand Name :
Yongjie
Model Number :
SJSL75D
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Price :
USD98000-110,000/set
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
35-50 days
Packaging Details :
sea worthy film ( or wooden box per requirements)
Screw design :
twin screw extruder
Plastic type :
PP/PE white filler masterbatch
Warranty :
one year
Screw diameter :
71mm
Screw & barrel material :
W6Mo5Cr4V2
Cutting type :
water ring hot cutting
Capacity :
2000kg/h
Color :
any color can be customzied
Description

White Filler Masterbatch Machine Twin Screw Extruder Plastic Pellets Machine

Water Ring Pelletizer Application:

1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.

2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.

4. PE, ABS, PS, EVA masterbatch etc.

5. ABS, EVA flaming retarding masterbatch etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.

Quick details

Screw diameter:71mm

Screw material:W6Mo5Cr4V2 high speed tool steel

Barrel diameter:72mm

Barrel material:W6Mo5Cr4V2 high speed tool steel

L/D:48/52:1

Output:2000-2500kg/h

Formula:PE/PP+80-85% caco3+PE wax+additives

Main technical data of various model of twin screw extruder pelletizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL20 A/B 22 21.7 32-44 500/600 4/5.5kw 30/30
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

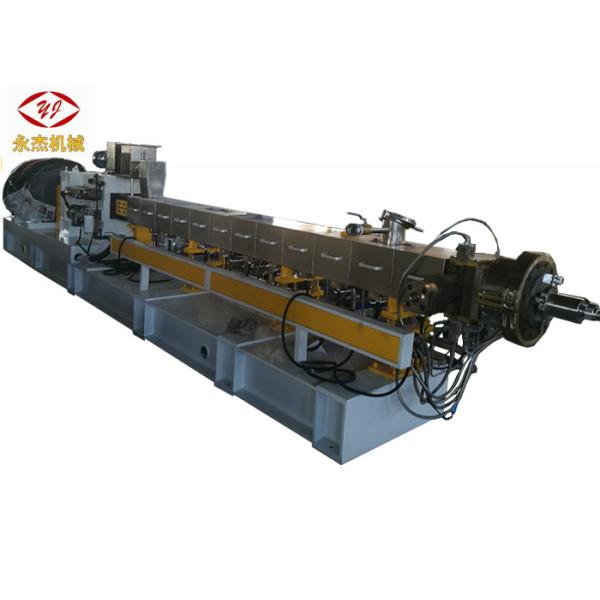

Photo of SJSL75D filler masterbatch machine


2000kg/H Biodegradable Filler Masterbatch Machine Customzied Color One Year Warranty


2000kg/H Biodegradable Filler Masterbatch Machine Customzied Color One Year Warranty

Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
