High Efficiency Polymer Extrusion Machine With Two Stage Conveying System
High Efficiency Polymer Extrusion Machine With Two Stage Conveying System
High Efficiency Polymer Extrusion Machine With Two Stage Conveying System
High Efficiency Polymer Extrusion Machine With Two Stage Conveying System
High Efficiency Polymer Extrusion Machine With Two Stage Conveying System
High Efficiency Polymer Extrusion Machine With Two Stage Conveying System
High Efficiency Polymer Extrusion Machine With Two Stage Conveying System
High Efficiency Polymer Extrusion Machine With Two Stage Conveying System
Specifications
Brand Name :
Yongjie
Model Number :
SJSL75B
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Price :
USD49000-110,000/set
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
35-50 days
Packaging Details :
sea worthy film ( or wooden box per requirements)
Screw design :
twin screw extruder
Plastic type :
Various polymer compunding, modification, filling etc
Warranty :
one year
Screw diameter :
71mm
Screw & barrel material :
W6Mo5Cr4V2
Motor :
110/132/160kw
Cutting type :
water ring hot cutting
Capacity :
500-900kg/h
Description

500-600kg/h PE PP Filler Master Batch Twin Screw Polymer Extrusion Machine


Characteristics of twin screw extruder
The screw arrangement are adopted “toy bricks” principle, which assembly according to different machine L/D, different feeding way, different barrel and screw combination, different screen changing and cutting way, different electrical control mode, etc. it meets the features of material and technological process. Give consideration to the plastic universality commonality and appropriability.

Quick details of machine
Power:110kw/132kw/160kw
Screw material:W6Mo5Cr4V2
Barrel material: 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth
and abrasion resistant. The hardness is HRC60-64.
L/D:48/52:1
Output:500-600kg/h according to different material, formula and technology of process etc.
Revolutions: 0-600rpm；
Reduction ratio: i = 2.5:1

Scope of supply

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 Feeding system set 1 1.5kw
1.2 SJ-75B Twin screw extruder set 1 160kw, 40:1
1.3 Water cycling system set 1 0.55kw
2 Electric cabinet set 1
3 Air-cooling auxiliary system set 1
3.1 Die head set 1
3.2 Face cutter set 1 1.5kw
3.3 Two-stage conveying system set 1 4kw/set, 8kw totally
3.4 Product silo set 1 4kw
4 Documents set 1

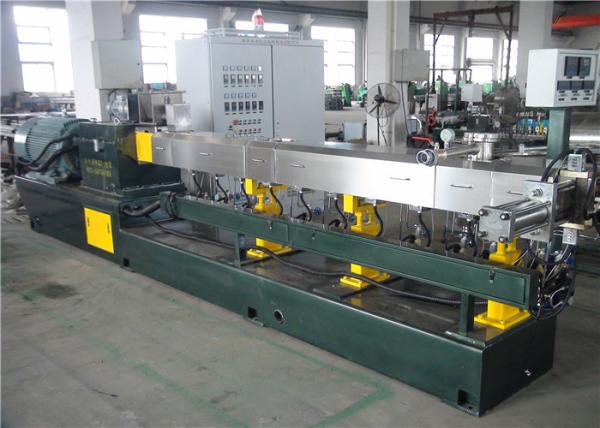

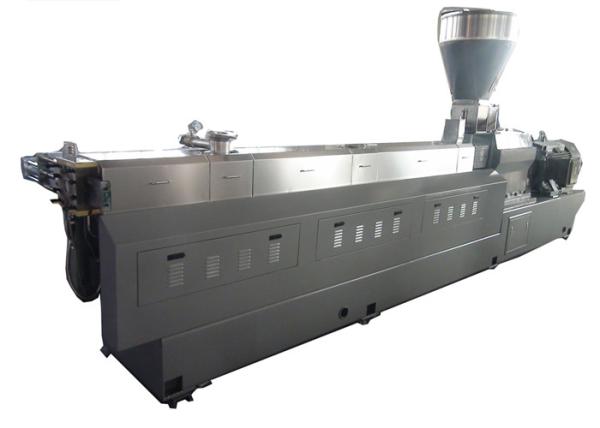

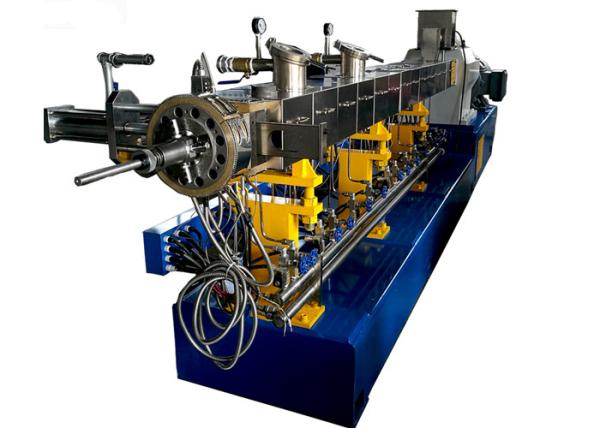

Photo of machine
High Efficiency Polymer Extrusion Machine With Two Stage Conveying System

High Efficiency Polymer Extrusion Machine With Two Stage Conveying System

Main models of tiwn screw extruder

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL20 A/B 22 21.7 32-44 500/600 4/5.5kw 30/30
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500


Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
