500kg/h Vertical PVC Pulverizer Machine With 75kw Motor / Water Cooling System
500kg/h Vertical PVC Pulverizer Machine With 75kw Motor / Water Cooling System
500kg/h Vertical PVC Pulverizer Machine With 75kw Motor / Water Cooling System
500kg/h Vertical PVC Pulverizer Machine With 75kw Motor / Water Cooling System
500kg/h Vertical PVC Pulverizer Machine With 75kw Motor / Water Cooling System
500kg/h Vertical PVC Pulverizer Machine With 75kw Motor / Water Cooling System
Specifications
Brand Name :
HB
Model Number :
SMW-800
Certification :
CE ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 Set
Price :
$18000-$21000/Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 Sets per Month
Delivery Time :
20-30 working days
Packaging Details :
Wrapping Film
Motor :
75kw
Capacity :
320-880kg/h
Material Applied :
Rigid PVC
Powder Size :
10-80 mesh
Sieving Method :
Vibrating Sieving
Dust Collection :
16 Bags
Description

500kg/h Vertical PVC Pulverizer Machine With 75kw Motor / Water Cooling System

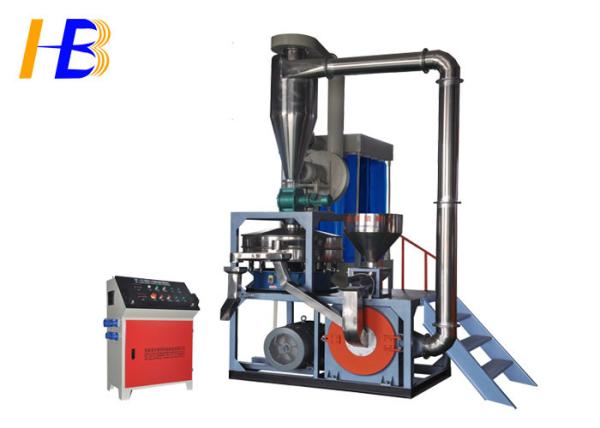

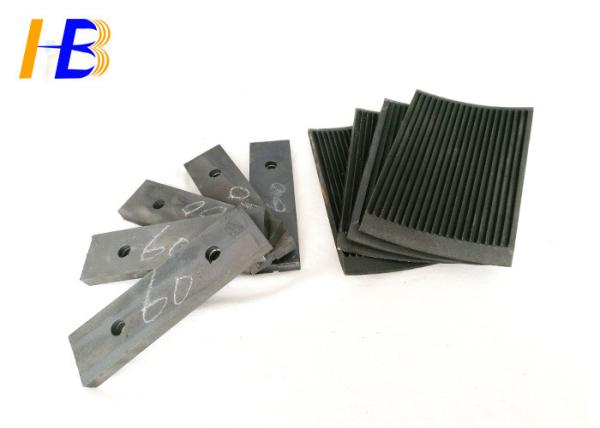

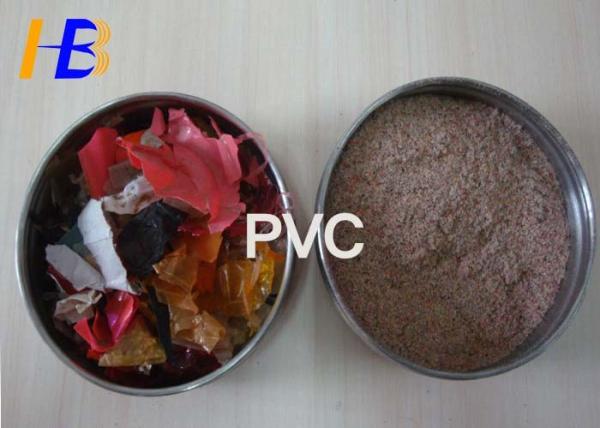

SMW Series plastic pulverizers are high-speed grinders designed to pulverize rigid PVC profile, PVC pipe, wood, activated Carbon, EPS and other PVC extruded products. This Vertical 500kg/h 75 kw motor PVC pulverizer pulverizing machine is equipped with vibrating sieving machine, adding with economic rotaty and fixed blades, it is a desiered pulverizer product for customers to grind the PVC plastic.

Type Main Motor(KW) Total Power(KW) Weight(KG) Capacity(KG/H)
SMW-500

37

 43 1680 120-300
SMW-600 45/55 52/62 2280 180-480
SMW-800 75 88 2880 320-880

Specifications are not binding and subject to change without notice.

  • Compared with similar grinders, its output is greatly improved (increased by 20%-50%) under the same power.
  • It is energy-saving.
  • The dust collector is added to effectively reduce dust pollution, We also provide pulse dust collector
  • The discharging of the main fan reduces labor intensity of operating workers.
  • The door cover of the host can be opened for convenience of cutters.
  • Wind and water cooling system are adopted to decrease the working temperature inside the machine body

There are a number of important factors that have to be considered when choosing the best suited Huibang size reduction unit for your particular application. To ensure that the system we recommend offers the best specification, we ask that you fill out this form and answer the following questions:

  • Type of Plastic: MFI (Melt Flow Index)
  • Size of regrind to be fed into the pulverizer:
  • Machine currently using to make regrind?
  • What process:(eg. Extrusion, blow molding, etc.)
  • Size of powder desired:
  • Mesh/Micron size
  • Required throughputs per hour:
  • Any special characteristics to your particular material:(eg. Additives etc.)

500kg/h Vertical PVC Pulverizer Machine With 75kw Motor / Water Cooling System
