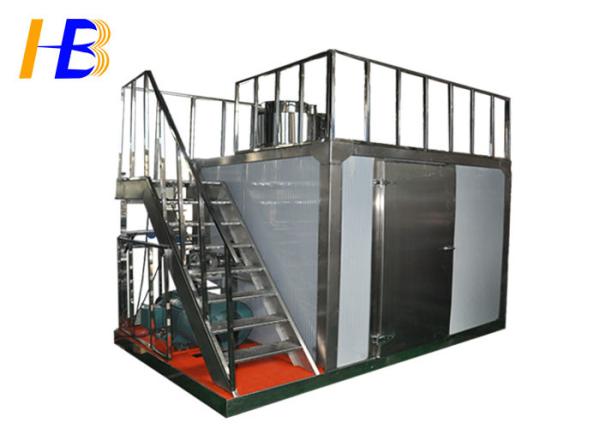

Integrated Cooling System Pepper Grinding Machine For Food Industry 100 - 1000kg/h
Integrated Cooling System Pepper Grinding Machine For Food Industry 100 - 1000kg/h
Integrated Cooling System Pepper Grinding Machine For Food Industry 100 - 1000kg/h
Integrated Cooling System Pepper Grinding Machine For Food Industry 100 - 1000kg/h
Integrated Cooling System Pepper Grinding Machine For Food Industry 100 - 1000kg/h
Integrated Cooling System Pepper Grinding Machine For Food Industry 100 - 1000kg/h
Specifications
Brand Name :
HB
Model Number :
HBLN-500
Certification :
CE ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 SET
Price :
$38000-45000/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets per month
Delivery Time :
50-60 working days
Packaging Details :
wrapping film
Motor :
55kw
Capacity :
100-1000kg/h
Medium :
Liquid Nitrogen -196℃-0℃
Material Applied :
Hot Pepper, Chilli and other food
Mesh Size :
10-700mesh
Warranty :
12 month
Description

Integrated Cooling System Pepper Grinding Machine For Food Industry 100 - 1000kg/h

Nowadays, the liquid nitrogen has played an increasingly important role in food industry. This hot pepper and chilli pulverizer is designed to mill the materials that are difficult to pulverize at room temperature, especially suited to heat sensitive products, including plastics and foodstuffs. For example, liquid nitrogen mill /cryogenic mill is widely used in grinding PP, EVA, TPU, TPEE, nylon,PA11, PA1010, PA12, PA6, PA66, PA610, spices/pepper, herb and so on.

The grinding room is continually cooled with liquid nitrogen from the integrated cooling system before and during the grinding process. The liquid nitrogen circulates through the system and is continually replenished from an auto fill system in the exact amount. The temperature can be cooled down to -196°C, which can be adjusted according to the brittleness point of different stuffs. Thus the material is embrittled and volatile components are well preserved. Powerful impact blade lead to a perfect grinding efficiency. Admittedly, the auto fill system avoids direct contact with liquid nitrogen and makes the operation very safe.

Model Motor(KW) Total Power(KW) Weight(KG) Capacity(KG/H)
HBLN-500 55 65 3000 100-1000
HBLN-300 7.5 12 360 50-150

  • Closed loop design, energy saving
  • Unique pulverizing design
  • Compact space usage
  • Mesh size afjustable, 10-700mesh
  • Independent human-oriented electric control box
  • Closed grinding vials eliminate sample cross-contamination

Integrated Cooling System Pepper Grinding Machine For Food Industry 100 - 1000kg/h

Integrated Cooling System Pepper Grinding Machine For Food Industry 100 - 1000kg/hIntegrated Cooling System Pepper Grinding Machine For Food Industry 100 - 1000kg/h
