Specifications
Brand Name :
HB
Model Number :
MF-500
Certification :
CE ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Wrapping Film OR Wooden Case
Motor :
37kw
One set Capacity :
80-500kg/h
Material Applied :
PET
Powder Size :
10-80 mesh
Sieving Method :
Vibrating Sieving
Dust Collection :
5 Bags
Description

Full Stainless Steel DISK PET Grinder Machine 10 Mesh PET Powder

This page is to introduce you about the stainless steel MF series grinder. It is a good grinder machine to grind medium hard, impact resistant and friable materials. The material to be pulverized( PET, SBS PE LLDPE HDPE MDPE PP...) is going through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system.

One thing need to mention is that, the pipe, rotary valve, sieving machine are all the stainless steel while other types are alloy steel.So if you have a strict requirement for the plastic & the powder, this model is a good choice.

Main Features

  • The surfaces that touch the plastic are stainless steel

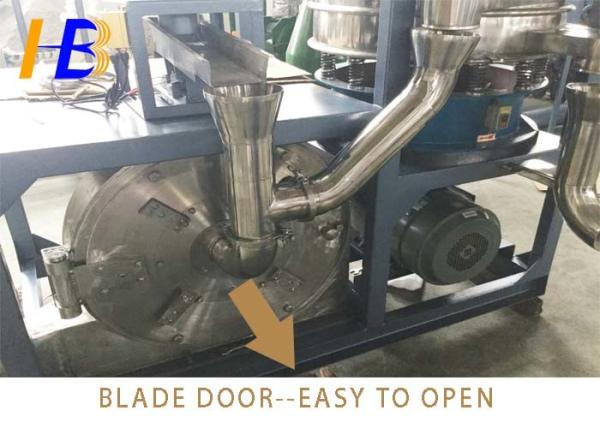

  • Easy to maintenance and replacement of blades .
  • Simple installation and easy maintenance
  • Installation and maintenance easy, open the door to cover clean-up.
  • Milling process of the whole seal, without dust leakage.
  • Full automatic feeding the materials and sorting.
  • Water and wind cooling system

SPECIFICATIONS FOR MF500 PET GRINDER MACHINE

Model
MF-500
Main Motor Power
37KW
Draft Fan Power
5.5KW
Vibration Sieve Power
0.75KW
Feeder Power
0.75KW
Capacity
80-500kg/h
Dimension
3000*2800*3900mm
Weight
2280kg

Specifications are not binding and subject to change without notice.

RFQ

There are a number of important factors that have to be considered when choosing the best suited Huibang size reduction unit for your particular application. To ensure that the system we recommend offers the best specification, we ask that you fill out this form and answer the following questions:

NO. ITEMS
1

Type of Plastic: MFI (Melt Flow Index)
2

Size of regrind to be fed into the pulverizer:
3

Machine currently using to make regrind?
4

What process:(eg. Extrusion, blow molding, etc.)
5

Size of powder desired:
6

Mesh/Micron size
7

Required throughputs per hour:
8

Any special characteristics to your particular material:(eg. Additives etc.)

Automatic PET Plastic Crusher Machine , 80 - 500kg/H Waste Grinder MachineAutomatic PET Plastic Crusher Machine , 80 - 500kg/H Waste Grinder Machine

Pre-Sales Service

After-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
