Full Stainless Steel Disk PET Grinder Machine With Mesh / Micron Size
Full Stainless Steel Disk PET Grinder Machine With Mesh / Micron Size
Full Stainless Steel Disk PET Grinder Machine With Mesh / Micron Size
Full Stainless Steel Disk PET Grinder Machine With Mesh / Micron Size
Full Stainless Steel Disk PET Grinder Machine With Mesh / Micron Size
Full Stainless Steel Disk PET Grinder Machine With Mesh / Micron Size
Specifications
Brand Name :
HB
Model Number :
MF400
Certification :
CE ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Wrapping Film OR Wooden Case
Motor :
22kw
One set Capacity :
50-300kg/h
Material Applied :
PET
Powder Size :
10-80 mesh
Sieving Method :
Vibrating Sieving
Dust Collection :
5 Bags
Description

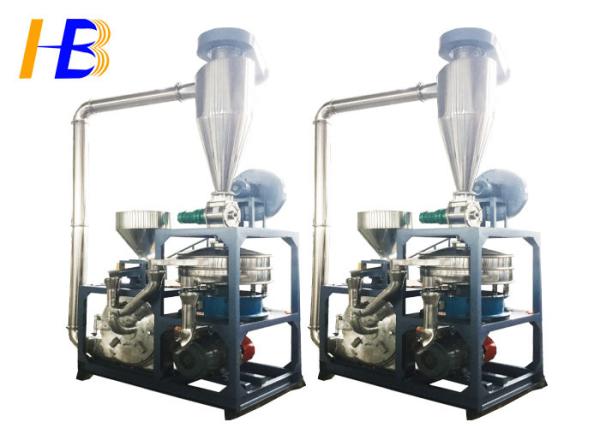

Full Stainless Steel Disk PET Grinder Machine MF400 PET Grinding

Here we are going to introduce you about the stainless steel MF series grinder. It is a good grinder machine to grind medium hard, impact resistant and friable materials. The material to be pulverized( PET, SBS PE LLDPE HDPE MDPE PP...) is going through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system.

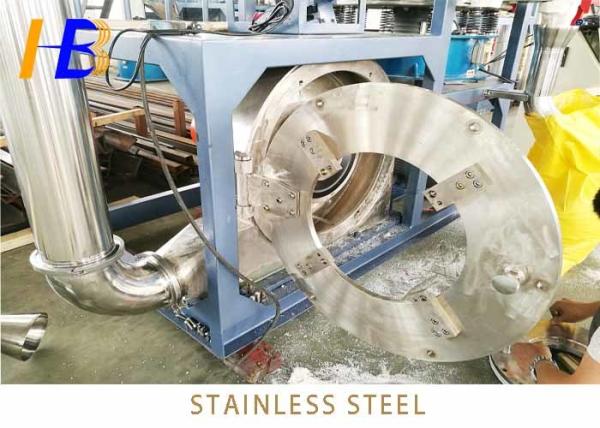

One thing need to mention is that, the rotary valve, cooling pipe, blade holder, sieving machine are all the stainless steel while other types are alloy steel.So if you have a strict requirement for the plastic & the powder, this model is a wonderful grinder.

Main Features

  • The surfaces that touch the plastic are stainless steel
  • Easy to maintenance and replacement of blades .
  • Simple installation and easy maintenance
  • Installation and maintenance easy, open the door to cover clean-up.
  • Milling process of the whole seal, without dust leakage.
  • Full automatic feeding the materials and sorting.
  • Water and wind cooling system

SPECIFICATIONS FOR MF400 PET GRINDER MACHINE

Model
MF-400
Main Motor Power
22KW
Draft Fan Power
4KW
Vibration Sieve Power
0.45KW
Capacity
50-300kg/h
Dimension
2800*2600*3700mm
Weight
1680kg

Specifications are not binding and subject to change without notice.

RFQ

There are a number of important factors that have to be considered when choosing the best suited Huibang size reduction unit for your particular application. To ensure that the system we recommend offers the best specification, we ask that you fill out this form and answer the following questions:

NO. ITEMS
1

Type of Plastic: MFI (Melt Flow Index)
2

Size of regrind to be fed into the pulverizer:
3

Machine currently using to make regrind?
4

What process:(eg. Extrusion, blow molding, etc.)
5

Size of powder desired:
6

Mesh/Micron size
7

Required throughputs per hour:
8

Any special characteristics to your particular material:(eg. Additives etc.)

Pre-Sales Service

After-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.


Full Stainless Steel Disk PET Grinder Machine With Mesh / Micron SizeFull Stainless Steel Disk PET Grinder Machine With Mesh / Micron Size
