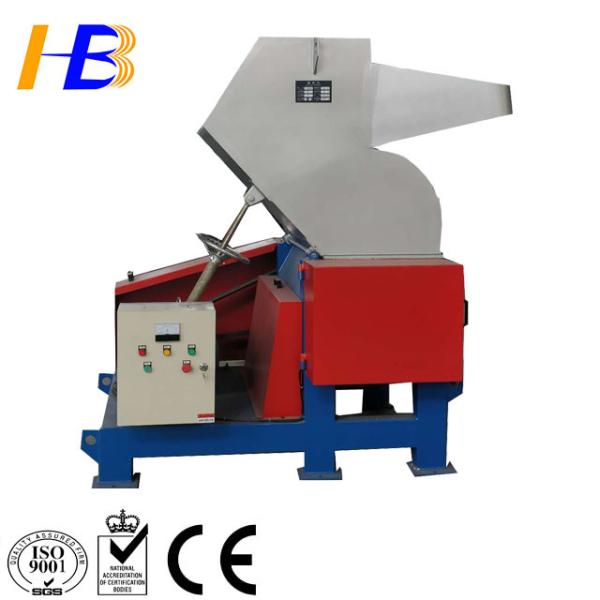

PC-600 Industrial Plastic Crusher Machine Moving Cutting Knife Stand Founded
PC-600 Industrial Plastic Crusher Machine Moving Cutting Knife Stand Founded
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
HB industrial plastic crusher
Model Number :
PC-600
Certification :
CE certification
Price :
US $6,500-8,500 / Sets | 1 Set/Sets (Min. Order)
MOQ :
1 Set/Sets
Condition :
New
Use :
Waste Plastic Crusher
Plastic Type :
PET
Shaft Design :
Double
Power :
22-30kw
Capacity :
400-600kg/h
Voltage :
Customized
Dimension(L*W*H) :
1550x1200x1730
Weight :
1600KG, 1600kg
After-sales Service Provided :
Engineers available to service machinery overseas
Moving knife :
18
Static kinfe :
4
Output :
400-600kg/h
Dimension :
1550x1200x1730
Motor power :
22-30kw
Sieve diameter :
6-12mm
Name :
industrial plastic crusher
Rotation diameter :
400mm
The number of bearings :
2
Description

PC-600 Powerful plastic machinery industrial plastic crusher

Model PC-200 PC-400 PC-600 PC-800 PC-1000
Moving knife 6 pcs 12 pcs 18 pcs 24 pcs 30 pcs
Static knife 2 pcs 2 pcs 4 pcs 4 pcs 4 pcs
Blade specification 100*85*22mm 100*85*22mm 100*100*22mm 100*100*22mm 100*100*25mm
Motor power 4 kw 7.5 kw 22-30 kw 30-37 kw 45-55 kw
Screen plate thickness 8 mm 10 mm 10 mm 10 mm 10 mm
Sieve diameter 10 mm 6-12 mm 6-12 mm 6-12 mm 6-12 mm
Material of kinfe qsicr qsicr qsicr qsicr qsicr
Output 100-150 kg/h 200-300kg/h 400-600kg/h 600-800kg/h 800-1000kg/h
Rotation diameter 220mm 260mm 400 mm 450mm 480mm
Source voltage 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz
The number of bearings 2 2 2 2 2
Dimensions 750x600x1130mm 1050*900*1430mm 1550*1200*1730mm 1950*1550*2130mm 1750*1550*1730mm
Weight 300kg 700kg 1600kg 1900kg 2100kg

>It adopts imported high-quality tool steel, special cutting-tool. It is specially durable. The installation of the cutting tool can be adjusted. The cutting tool can be sharpened again and again. Its use life is very long.

>The material of the moving cutting knife stand is T7A high-quality tool steel. Its hardness and softness is reasonable. It is not easily broken or worn, it adopts high-strength steel screw (8. 8grade) to fix it. The structure is film and durable.

>The main body is Q235A thick-wall, high-quality steel to avoid that the machine is used for a long time and affect its mechanical performance.

>The axle core of the machine is fished processmg once to ensure concentric clrcle and verticality error is not larger than 0.05mm.. Each part has reference hole. Twice rough fish and fine finshing are carried out. The past has strong changeability and high precision.
