Powerful Pvc Pulverizer Machine / Plastic Grinding Machine Easy Operation

Pvc Pulverizer Machine Introduction

1. By new designed, the bearing can load high-speed rotation.

2. No need any fixed measures on the ground, and no high demands of ground planeness in the installation of pulverizer. The pulverizer can be put on a normal inner ground.

3. High degree of automation of operation of the machine makes automatic feeding, discharging and sorting.

4. The grinding process can all be sealed, and no dust pollution and secondary pollution of materials in grinding process.

5. Fineness can be adjusted within 120 mesh conveniently.

6. Host uses water and wind double cooling system which is use of water and air as the cooling medium. It's very economical.

Pvc Pulverizer Machine Operating Procedure

The operation procedure of the machine is very easy, one operator can make the pulverizer work well. Show you as follow:

· Starting

Put your raw materials which dimension less than 8mm (hereinafter referred to as granule) into hopper (Part 14); Start the pulverizer system by the independent control cabinet (Part 1); Then open the valve in the hopper and vibration feeder (Part 6).

· Stopping

Close the valve and vibration feeder, then stop the pulverizing system by the independent control cabinet two minutes later.

Pvc Pulverizer Machine Application

PP PE PVC ABS PC PET plastic pulverizer/milling machine/miller for powder is mainly suitable for milling PVC,PE,HDPE,LDPE,LLDPE,PMMA,PC,PS,PET,ABS,MBS,PLA,EVA and so on.The suitable flake size can sending into directly is below than 12mm,final powder size is 20mesh to 100mesh.With different milling capacity 100kg/h,200kg/h,300kg/h,400kg/h by different machine model.

Pvc Pulverizer Machine Advantages

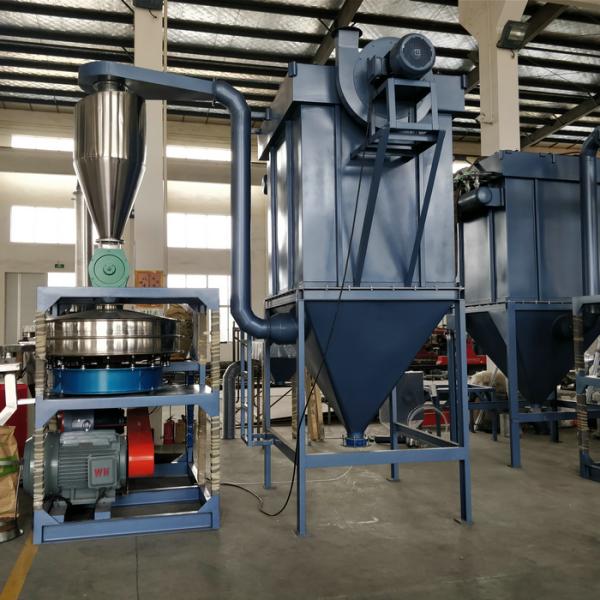

It is obvious that Huibang plastic grinder is able to grind PE, PVC, PP, ABS, PET, PLA, EVA and so on. This plastic grinder consists of feeding equipment, blades, cooling pipe, cyclone separator, sieving machine, dust collection equipment. Grinder capacity ranges from 50kg/h to 880kg/h.
1. Adjustable outlet powder size: 0.18mm-1.7mm
2. Adjustable feeding speed of raw plastic
3. Offer the service of installation on site
4. Low consumption, high capacity and save labor cost

Pvc Pulverizer Machine Technical Parameters

Attention:the throughput depends on the types and size of grinding materials,along with the fineness of the grinding materials.Usually, the original diameter of the material ranges from 5 to 8 mm.

Products & Advantages

Our main business product includes plastic pulverizer, crusher, shredder, mixer, single and double screw extruder, plastic pipe/profile (wood & plastic)/ sheet/plate extrusion line, haul-off, cutter, loader, mold temperature control, etc., which all show the characteristics as simple adjustment, low energy-consumption and high product efficiency and throughput. The company, with quite stable strength advantages in the brand, quality, technology, market, scale and benefit, has been trusted and supported by many new and old consumers for over 10 years, making important contribution to the local economic development

Pvc Pulverizer Machine Details
