Disc Small Pulverizer For Rotational Moulders Final Particle Size Between 0.15-0.50 Mm
Disc Small Pulverizer For Rotational Moulders Final Particle Size Between 0.15-0.50 Mm
Disc Small Pulverizer For Rotational Moulders Final Particle Size Between 0.15-0.50 Mm
Disc Small Pulverizer For Rotational Moulders Final Particle Size Between 0.15-0.50 Mm
Specifications
Brand Name :
HUIBANG
Model Number :
MF-400
Certification :
CE ISO9001:2008
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, D/A, D/P, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
10 work days
Packaging Details :
wooden case or wrapping film
Classification :
Plastic Pulverizer Machine
Condition :
New
Voltage :
Customized
Color :
Customized
Motor :
22kw
Capacity :
50-500kg/h
Powder size :
10-80mesh
Weight :
1680kg
Description

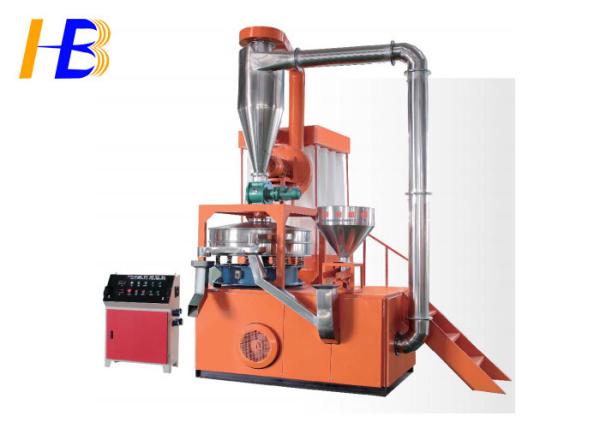

Plastic pulverizing machine Systems for Rotational Moulders with a final particle size between 0,15 – 0,50 mm

MF Series New-Type vertical disc pulverizer belongs to disc pulverizer series, which has the advantages of high-output and low-power. This pulverizer is mainly applied for pulverizing polyethylene (PE, including LLDPE,LDPE,MDPE,HDPE), polyvinylchloride (PVC, including hard PVC and soft PVC), polypropylene (PP), polystyrene (PS), ABS, Nylon, EVA, PET and other materials. This pulverizer is used to reduce the costs of materials, materials modification and improve product quality. Main parts of the pulverizer system is independent control cabinet, pulverizing host, cyclone separator, air shutter, vibration sieve, draft fan, dust catcher, hopper and pipes .

Advantages

  • Save and simple adjustment of cutting gap
  • Low drive power and High throughput
  • Innovative efficient design
  • Easy to maintain and control
  • Wide range of accessories
  • Automatically regrinding coarse powder
  • Dual cooling system

Applications

One of the main fields of use of HUIBANG MF series plastic pulverizer is the pulverization of PE for rotomolding applications. In this process, a screening machine is necessary to ensure the right output size, other applications are the working in line with a shredder and crusher to have a balance and efficient system to handle in house production waste.

Technical Parameters

Model MF-400 MF-500 MF-600 MF-800
Diamete(mm) ￠400 ￠500 ￠600 ￠800
Total power(kw/hp) 26/35 44/59 54/72 88/118
Main(kw) 22 37 45 75
Air shutter(kw) 4 5.5 7.5 11
Draft fan(kw) 0.75 0.75 0.75 1.1
Vibration Sieve ZDS-800 ZDS-1000 ZDS-1000 ZDS-1200
Weight(kg) 1680 2280 2680 3580
Dimensions(mm) 2800×2600×3700 3000×2800×3900 3200×3000×4200 4000×3500×4500
Capacity(kg/h) 50-300 80-500 120-800 200-1200

Disc Small Pulverizer For Rotational Moulders Final Particle Size Between 0.15-0.50 Mm

Disc Small Pulverizer For Rotational Moulders Final Particle Size Between 0.15-0.50 Mm

Disc Small Pulverizer For Rotational Moulders Final Particle Size Between 0.15-0.50 Mm

Welcome to contact us and get more information.
