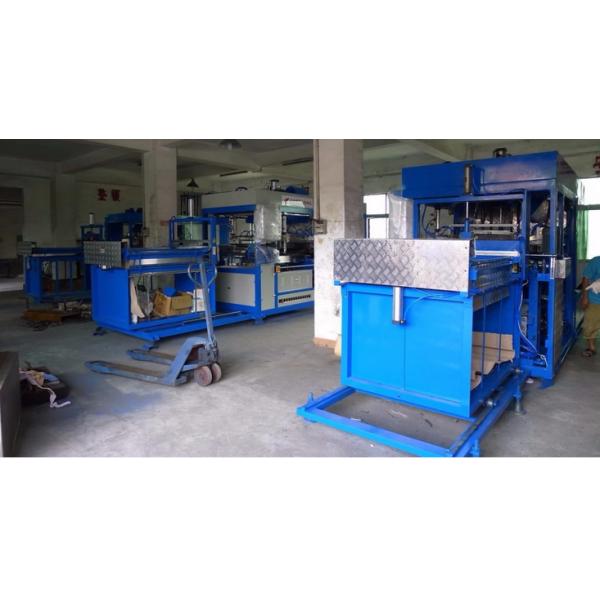

Thermal Vacuum Forming Machine
Thermal Vacuum Forming Machine
Specifications
Brand Name :
ALLEPACK
Model Number :
XG-F
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD49000/Set
Payment Terms :
T/T,L/C
Supply Ability :
2set/month
Delivery Time :
30 days
Packaging Details :
Standard Export Packing+BOPP streching film
automaticity :
automatic
forming method :
negative
Control system :
PLC
Max Forming Area :
2100*1100mm
Max Forming Depth :
600mm
Sheet Thickness :
2-12mm
Sheet Material :
PVC, ABS, PC, PET, PETG, LDPE, HDPE, PMMA
sheet width(max) :
810mm
Production Efficiency :
6-30piece/hour
automaiton type ength :
servo drive
Weight :
5000kg
type :
new
Product name :
thick sheet plastic thermoforming machine
Warranty :
2 year
quality :
100% Strictly Tested, 100%Brand
Description

Automatic thick sheet plastic vacuum thermoforming machine for car parts,XG-F series thick sheet vacuum forming machine adopts the markets latest sheet anti-sagging technology during heating,infrared heater allows for minimum sheet heating time; meanwhile intelligent computers assists with simplicity in operation.

Technical parameters

Name of commodity
Automatic Thick Sheet Vacuum Thermoforming Machine
Suitable Material
ABS,PP,PS,PVC,EPS,HIPS,PE,HDPE,EVA,PETG etc.
Forming Area
Customized according to customer's physical sample.
Forming Depth
400mm or customizable
Suitable Sheet Thickness
2-12mm
Vacuum Pump
Elmo Rietschle
Heater
Infrared heating tube
Air Pressure
0.6-0.8Mpa
Production Speed
3-8 minutes per cycle
Safety Protection Method
Safety light curtain
Power Supply
380V/50HZ
Material Loading
Manual or Automatic
Finished Porudct Discharing
Manual or Automatic

Thermal Vacuum Forming Machine

Thermal Vacuum Forming Machine

Q1:I'd like to know the specific product information, how to contact your company?

A1:You can directly contact us telephone or email to us, after we received will reply to you the first time.

Q2:Your company can produce non-standard machine?

A2:Sure, our factory has 30 years experience in manufacturing,we also supply the machine based on the specification provided by the customers.You just need to give us parameters, our engineers will give you worked out the first time.
