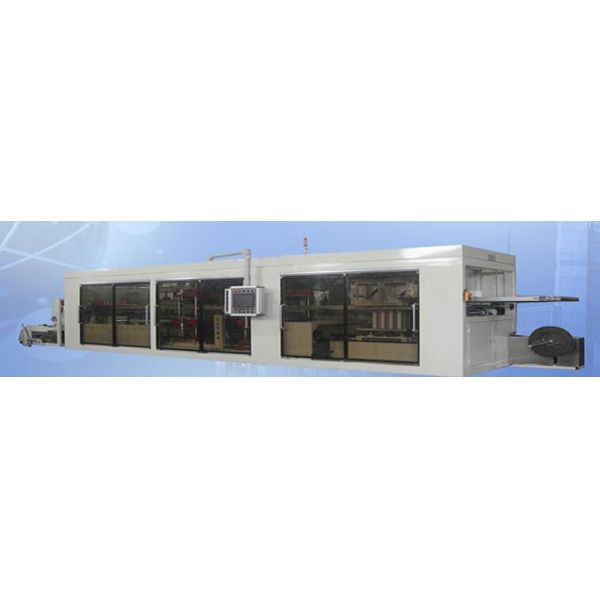

2.0mm Multi Station Plastic Thermoforming Machine SIEMENS PLC Control
2.0mm Multi Station Plastic Thermoforming Machine SIEMENS PLC Control
Specifications
Brand Name :
ALLEPACK
Model Number :
XG-A
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
2set/month
Delivery Time :
35 days
Packaging Details :
Standard Export Packing+BOPP streching film
automaticity :
full-automatic
forming method :
positive&negative
Operation :
SIEMENS PLC Control
SPEED :
10-32Cycles/min
Certificate :
ISO,CE
Sheet Thickness :
0.2-2.0mm
Sheet Material :
PP, BOPS, PE, PVC, Pet, ABS, HIPS, EPS etc.
Dimension :
11500×2000×2500mm
Cutting Pressure :
100ton
Automation type :
Servo motor
Cooling of mold :
Tap water or recycled water
Description

2.0mm Multi Station Plastic Thermoforming Machine SIEMENS PLC Control

Automatic Multi-Station Plastic Thermoforming Machine (forming/cutting/stacking) is fully automatic multi-stations thermoforming machine are designed and manufactured by our company, It absorbs the most advanced thermoforming technology from Germany, this full automatic production line combines sheet roll feeding, forming,cutting,stacking,conveying compleated on one machine. The whole system is fully-automatic and controlled by PLC through a touching screen. The machine is wildely used bowl covers and cups,flowerpot,daily blister packages,pharmaceutical blister packaging.

2.0mm Multi Station Plastic Thermoforming Machine SIEMENS PLC Control

Main Features:

1. Touch screen, PLC and servo motor adopt Siemens brand from Germany.

2. Servo motor to feed sheet and stretch forming,movement of high precision,controlled easily.

3. SIEMENS PLC integrated control,touch screen digital display,easy to control.

4. Positive & negative air pressure system of forming station--more efficient.

5. Combination to different types,cutting in mould-stacking or forming-cutting-stacking or forming -punching-cutting-stacking depond on products.

6. Feeding,forming,cutting and stacking processing are complete production automaticlly.

Product description:

MODEL XG-A1
SPEED 10-32Cycles/min
Max forming area 420X160X35(mm) special can reach to 50mm
Air pressure 0.5-0.7Mpa
Total power 380V/220V/415V 50/60Hz 3.0Kw
Main electrical power 0.75kw
PVC rigid film 0.15-0.5x400mm
Cooling of mold Tap water or recycled water
Outline dimension 2700x830x1450mm(LxWxH)
Weight 800kg

2.0mm Multi Station Plastic Thermoforming Machine SIEMENS PLC Control

Packaging and shipping:

2.0mm Multi Station Plastic Thermoforming Machine SIEMENS PLC Control

Our Services:


>>The warrantly is one year, in this term, we will change spare parts for you
when parts worn-out free of charge. We will deliver the needed parts to you.
>Allepack also provides installation service and machine operation training,
if necessary, our engineers will service you overseas.


Any Problem please contact our Allepack sales team!
