PP / PE / PS Automatic Vacuum Forming Machine Make Plastic Packaging
PP / PE / PS Automatic Vacuum Forming Machine Make Plastic Packaging
PP / PE / PS Automatic Vacuum Forming Machine Make Plastic Packaging
PP / PE / PS Automatic Vacuum Forming Machine Make Plastic Packaging
Specifications
Brand Name :
ALLEPACK
Model Number :
XG-A
Certification :
CE,ISO
Place of Origin :
Shanghai,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
USD140000/Set
Delivery Time :
35 days
Packaging Details :
Standard Export Packing+BOPP streching film
automaticity :
full-automatic
mold :
forming mold and cutting mold
Product Type :
plastic thermoforming machine
Max Forming Area :
600*760mm
Max Forming Depth :
140mm
Sheet Thickness :
0.2-2.0mm
Sheet Material :
PP, BOPS, PE, PVC, Pet, ABS, HIPS, EPS etc.
Cutting Pressure :
100ton
Max.Cutting Length :
1500mm
Weight :
12T
Description

PP / PE / PS Automatic Vacuum Forming Machine Make Plastic Packaging

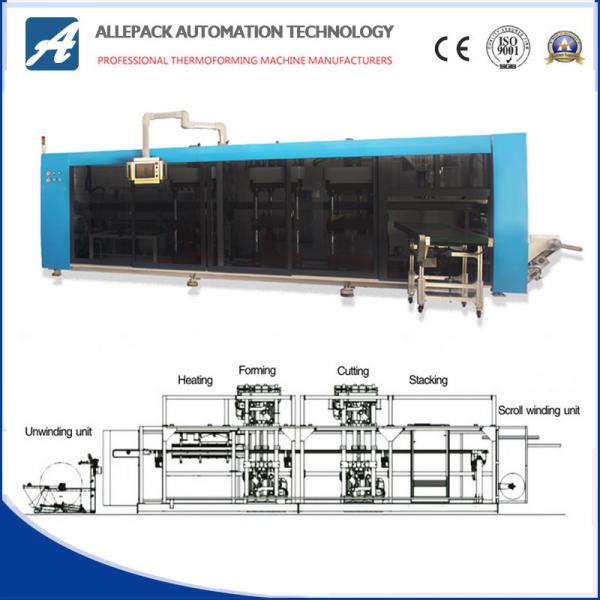

PP/PE/PS Automatic vacuum forming Machine to make Plastic Packaging are designed and manufactured by our company, It absorbs the most advanced thermoforming technology from Germany, this full automatic production line combines sheet roll feeding, forming,cutting,stacking,conveying compleated on one machine. The whole system is fully-automatic and controlled by PLC through a touching screen. This machine is wide used in plastic containers/boxes/trays/bowls producing field.

PP / PE / PS Automatic Vacuum Forming Machine Make Plastic Packaging

Technical parameters

Model XG-A-3
Power supply 380V 50/60Hz
Total Power 160 kw
Actual electrical consumption 20-60kw/H
Heating Oven with preheating Length of 1800mm,width of 800mm
Suitable sheet width 350-800mm
Max forming area 600*760mm
Min. forming area 350*410mm
Max forming depth 150mm
Maximum cutting force 100Ton
Output capacity 10-35cycles/min
Forming mold stroke 2x150mm
Cutting mold stroke 2x150mm
Parallel precision ofcutting table ±0.02MM
Precision of sheet pulling ±0.05MM
Cutting accuracy ±0.05MM
Suitable material PP PE PVC PS PETPS Foam(biodegraded material)etc.
Product thickness 0.15-2.0mm
Dimension 11000*2200*2500mm
Weight 12Tons without mold

Application:

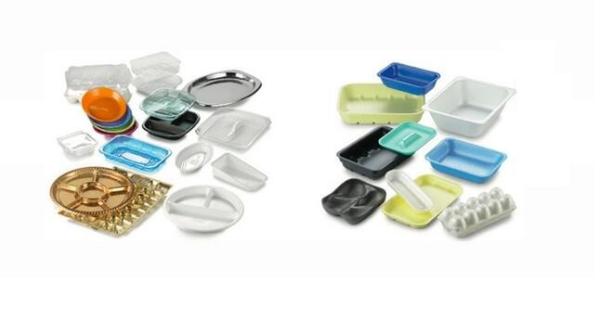

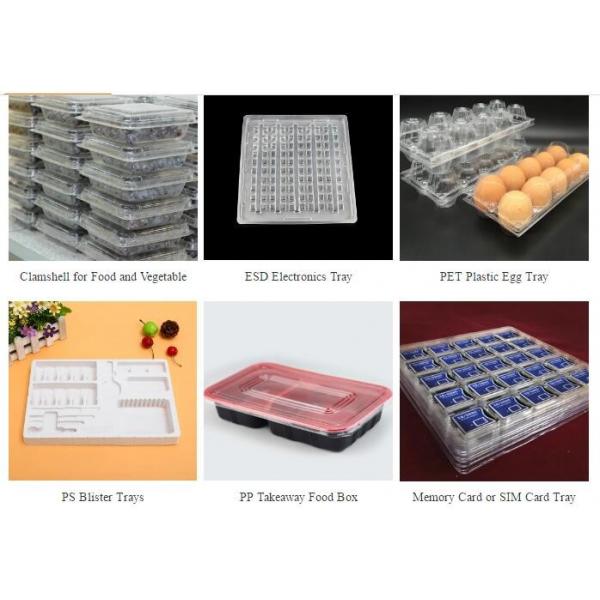

The machine is suitable for forming sheet materials such as PP,BOPS,HIPS,PS,PVC,PET,PLA.The machine is wildely used in the production of tray of Microwave Oven,disposable snack box,trays for seafood and moon cakes,chocolate inner box,bowl covers and cups,flowerpot,daily blister packages,pharmaceutical blister packaging,liquor blister packaging and all kinds of electronic blister packaging,sealed package of toys, hardware, cosmetics, electronic products (batteries, electronic components and so on), foodstuff (fruits pallets, snack boxes, biscuit boxes, food dishes, trays etc.).

PP / PE / PS Automatic Vacuum Forming Machine Make Plastic Packaging
