Specifications
Brand Name :
ANXIN
Model Number :
AX-PSS8509
Certification :
ISO9001 MSDS ROHS
Place of Origin :
GuangDong CHINA
MOQ :
500 Square Meter/Square Meters
Price :
$2.24-$3.22/Kilogram
Payment Terms :
L/C, D/P, T/T, Western Union, Paypal
Supply Ability :
12000 Ton/Tons per Month
Delivery Time :
8-14 days as your requier
Packaging Details :
Both sides with PE film, outside covered with craft paper. Other package are available based on customer's requirement.
Material :
100% virgin Bayer or Lexan material
Color :
Clear, green, blue , brown , opal ,clear or as request
Standard Width :
1220mm,1560mm,1820mm,2100mm
Density :
1.2
Light transmittance :
Up to 93%
Thickness :
0.9mm-4.5mm
Feature :
Anti-aging,Impact-resistant, Sound insulation etc.
Type :
Polycarbonate soild sheet
Application :
Awning,Canopy,Greenhouse ,Skylight,Highway barrier
Warranty :
10 years,8 years,5 years
Surface :
With UV coated
After-sale Service :
Online Technical Support, Onsite Installation, Onsite Training
Description

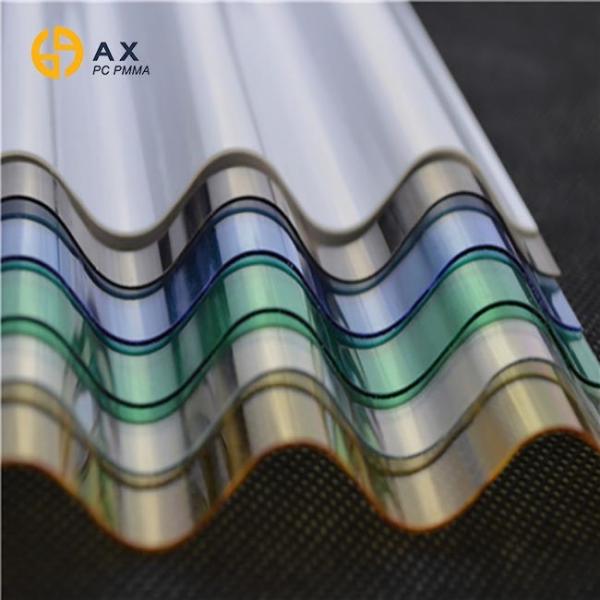

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

ANXIN China Factory professional colored PC polycarbonate corrugated sheet price for industrial application​

Product description:

Polycarbonate corrugated board is a kind of high quality, strong toughness of polycarbonate wave board, its characteristics for high impact resistance, clear, light weight, diversity and uv tolerance.PC wave board shows excellent weather resistance, durability, and fire performance.It can be used as the ideal roofing material for building capping, patio, car shed, balcony, canopy, screen, pavilion and swimming pool, etc. PC wave board can also be used as the roofing material for industrial and agricultural buildings.PC modification can resist acid and alkali, need to add UV to resist aging

Specifications:

Product Polycarbonate Solid Corrugated Sheet
Material 100% bayer material or sabic material or customized
Place of origin Guangdong, China
Color Clear, Blue, Lake Blue,Green, Bronze, Opal or Customized
Standard Width 740mm,830mm,900mm,930mm or can be cut
Thickness 0.7mm-5mm
Length 5800mm,11800mm other size is available
Certification ISO 9001:2008 SGS
Surface Anti-fog, UV protection
UV thickness 50 micron
Retardant standard Grade B1(GB Standard)
Technology Co-extrusion

Features

1.High light transmission: Up to 85% that of same thickness of general glass.
2. Excellent impact resistance: 80 times that of glass.
3. Weather and UV resistant-properties retained for years: Temperature resistance range is 40°C ~ +120°C, with an ultraviolet coextruded film on the sheet surface. It can prevent the resin fatigue or yellowing caused by the ultraviolet.
4. Flame resistance: High fire performance rating is class B1.
5. Sound and heat insulation: Superb sound insulation for freeway barrier and super thermal insulation save energy.
6. An engineering plastic of excellent integration capability. It has outstanding physical, mechanical, electrical and heat capabilities.
Samples Free samples for test(Freight will be on your account)


1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

Embossed Polycarbonate Sheet Techniacal Data:

Impact strength
850J/m
Light transmission
70%-85% for different thickness of clear color
UV resistance
50μm UV layer, can filter 99% ultraviolet radiation in sunlight
Coefficient of thermal expansion
0.065 mm/m°c
Service temperature
-40°c to 120°c
Heat conductivity
2.3-5.0 W/m2 °c
Tensile strength
>60N/mm2
Flexural strength
100N/mm2
Tensile street at break
>65mPa
Heat deflection temperature
140°c
Soundproof index

4mm thickness--27dB,5mm--28dB,6mm--29dB

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

Application:

1.Telephone booths, advertising boards, light boxes and exhibition.

2.Sign boards for advertisement, sky light cover.

3.Robbery counters in banks,jewelry counters and police anti-riot shields.

4.Sound absorption wall for freeways,express ways,high-speed ways.

5.Indoors swimming pools,sun bath pools,greenhouse roofs and sidings.

6.Subway exits,parking lots,garage tents,bus stops,terminals,shopping arcades.

7.Large stadium and rain tents,pagodas,hallway tent.

8.Amusement centers,hospitals etc.

9.Satety roof light for airports and plants.

10.Roof light for office buildings, department stores,hotels,villas,stadiums,schools.

11.House glasses,indoor partitions,sidewalk,sight window,sunshade,terraces and shower doors.

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

Product specification of Embossed sheet polycarbonate :

Item

Standard width

(mm)

Thickness

(mm)

Weight

(kg/m2)

Min curving radius

(mm)

General color Remark
PC embossed sheet

1220

1560

1820

2100

2.0 2.4 360

Clear

Opal

Blue

Green

Bronze

Orange

1.5mm-3.0mm, 30m/roll

3.6mm-4.5mm, 18m/roll

5mm or above packed as sheet

2.4 2.88 430
3.0 3.6 540
3.8 4.56 680
4.0 4.8 720
5.0 6 900
6.0 7.2 1080

Note: Special colors and specifications can be customized.

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

1.2g/Cm3 Opaque Soundproof Corrugated Polycarbonate Sheet

FAQ:

1.What kind of a company we are ?

We are a manufacturer located Guangdong, China .We have gained good reputation among our customers for our professional,warm and thoughtful service, Because we know that a long terms business based on the quality control ,delivery time etc.

2.Is your company a factory or trade company ?

We have a factory ourself , we are on this business for few years in China.Our factory is very famous for surrounding countries and region

3.What's the quality assurance we provided and how do we control quality ?

1) Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. Besides, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.

2) 100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels

4.How many different kinds of PC sheet can your company produce?

Our company now have following several products: Glittering Polycarbonate Sheet,Multi-wall Structure Polycarbonate Sheet,Greenhouse Polycarbonate Sheet, General Polycarbonate Solid Sheet,Advertising Polycarbonate Sheet,Polycarbonate Embossed Sheet, Polycarbonate Frosted Sheet, Soundproof Polycarbonate Sheet, Greenhouse Polycarbonate Sheet etc.

5.Do you take special orders ?

Yes , We accept customized products.

6.What are polycarbonate sheets?

Polycarbonate sheets are a transparent, synthetic product. Because of its exceptional impact, weather and temperature resistance, it provides solutions where other synthetics fail. Polycarbonate has a different chemical composition, and therefore different properties, from other transparent plastics such as PS.

7.Can I install polycarbonate sheets myself ?

Polycarbonate sheets are particularly user-friendly and very light, so that fewer cross bars are needed. This makes the supporting structure more straightforward and cheaper.

8. Won’t a polycarbonate roof make things very hot?
Polycarbonate roofing sheets come with an energy reflective coating, which helps solve this problem. Moreover,polycarbonate sheets have excellent insulating properties so that heating costs are considerably
reduced during intermediate seasons.
9. Do the sheets break very easily?
No! Polycarbonate sheets are not only extremely impact resistant but thanks to their temperature and
weather resistance they have a much longer service life.
10.Is polycarbonate sheet bad for the environment?
Polycarbonate sheets are a very sustainable material that can be recycled and does not emit toxic substances during combustion. Moreover, there are sustainable polycarbonate sheets being manufactured using 20% renewable energy!

11.What will happen in the event of a fire ?
Fire safety is one of polycarbonate's strong points. Polycarbonate sheeting is flame retardant and do not emit toxic substances, which is why they are so often incorporated in public buildings, where the most stringent safety regulations apply.
12.How many different kinds of PC sheet do your company produce?
Our company now have following several products:hollow polycarbonate sheet, Solid polycarbonate sheet and corrugated polycarbonate sheet.
