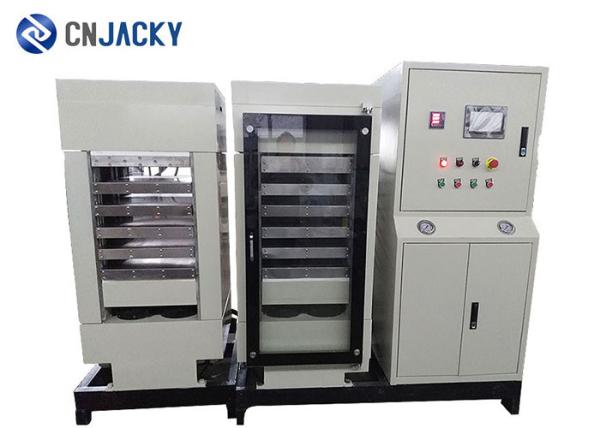

PVC Plastic Card Making Machine , Auto Transfer Hot Press PVC Card Laminator
PVC Plastic Card Making Machine , Auto Transfer Hot Press PVC Card Laminator
PVC Plastic Card Making Machine , Auto Transfer Hot Press PVC Card Laminator
PVC Plastic Card Making Machine , Auto Transfer Hot Press PVC Card Laminator
PVC Plastic Card Making Machine , Auto Transfer Hot Press PVC Card Laminator
PVC Plastic Card Making Machine , Auto Transfer Hot Press PVC Card Laminator
PVC Plastic Card Making Machine , Auto Transfer Hot Press PVC Card Laminator
PVC Plastic Card Making Machine , Auto Transfer Hot Press PVC Card Laminator
Specifications
Brand Name :
CNJACKY
Model Number :
CNJ-5200A
Certification :
CE
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
20 sets/month
Delivery Time :
30 days after payment
Packaging Details :
Standard export wooden box packaging
Automatic Grade :
Automatic
Driven Type :
Hydraulic
Voltage :
380V ,50/60HZ
Power :
26 KW
Pressure :
0-16Mpa
Weight :
3000 KG
Laminating Platen Size :
420mm×520mm
Laminating Plate :
Aluminum Alloy
Description

9000 Cards / hour Plastic Card Making Machine Materials Auto Transfer PVC Card Hot Press Laminator Machine

Product description:

This credit card laminating machine breaks with traditional designs and realizes automatic material transfer instead of manual transfer,achieving safe and high efficiency working.

PLC industrial automation control system & touch- screen display are imported, convenient for operation.

With its powerful functions, the software can save several lamination parameters automatically.

Trouble alarm and record functions make the machine more humanized.

Both heating and cooling tower are made of aluminum alloy, realizing fast heating & cooling functions with non-rusty.

The luxury energy saving model with whole sealing design for heating insulation saves energy.

The credit card laminating machine with 7 working daylights improved 20%efficiency compared to similar products.

With automatic frequency conversion function, high quality imported VFD matched with variable fluid technique, the precision up to ±0.1Mpa.

With automatic moving type of transfer, materials can be transferred easily and automatically.

With special laminated trays.

Technical Parameter:

Model CNJ-AU5200A Materials Auto Transfer Laminator
Cooling Method Water Cooling
Heating Method Electric Heating
Pressure Stages Heating 12 stages/cooling 5 stages
Pressure Precision ±0.1 MPa
Temperature Precision 0-200℃ ±1(℃)
Laminating Plate Smoothness ±0.05mm
Laminating Plate Aluminum Alloy
Hydraulic Cylinder Single/Four
Pressure 0-16Mpa
Laminating Platen Size 420mm×520mm
Opening 7
Opening Space 50mm
Laminating Plate thickness 45mm
Electric 380V ,50/60HZ, 30 KW
Dimension L2500mm×W1400mm×H1700mm
Weight 2500 KGS
Output around 9,000 cards/hour

Our Advantages:


1.Factory direct sale
2.Industry and trade integration development
3.16 years experience
4.Various products
5.CE certificate
6.Flexible payment
7.Fast accurate quote
8.Our good service

FAQ:


1.Question: How long time of warranty for machines?
Answers: 1 year free of charge.


2.Question: Do you get CE certified ?
Answers: Yes, we get CE certificate for all our machines.


3.Question: Can you supply door to door installation service for machines ?
Answers: Yes ,we supply ,buyer need to afford all dinners ,hotels and tickets .


4. Question: Can you provide samples for test?
Answers: Yes, we provide samples for consumables of standard size. But the buyers need to pay for the delivery cost.
