RFID Plastic Card Manufacturing Machines Smart Card Cutter 3x8 5x5 6x8 Layout
RFID Plastic Card Manufacturing Machines Smart Card Cutter 3x8 5x5 6x8 Layout
RFID Plastic Card Manufacturing Machines Smart Card Cutter 3x8 5x5 6x8 Layout
RFID Plastic Card Manufacturing Machines Smart Card Cutter 3x8 5x5 6x8 Layout
RFID Plastic Card Manufacturing Machines Smart Card Cutter 3x8 5x5 6x8 Layout
RFID Plastic Card Manufacturing Machines Smart Card Cutter 3x8 5x5 6x8 Layout
RFID Plastic Card Manufacturing Machines Smart Card Cutter 3x8 5x5 6x8 Layout
RFID Plastic Card Manufacturing Machines Smart Card Cutter 3x8 5x5 6x8 Layout
Specifications
Brand Name :
CNJACKY
Model Number :
CNJ-5A -25PLC punching machine
Certification :
CE
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
20 sets / month
Delivery Time :
30 days after payment
Packaging Details :
Standard export carton packaging
Power :
5.5KW
Applicable materials :
PVC,ABS,PET,mixed material of PVC and ABS paper cards
Layout :
5*5, 3*8, 6*8 or customized
Weight :
200kg
Control method :
PLC program + Servo system
Overall dimension :
L3000 x W1240 x H 1750mm
Application :
Punching Card
Description

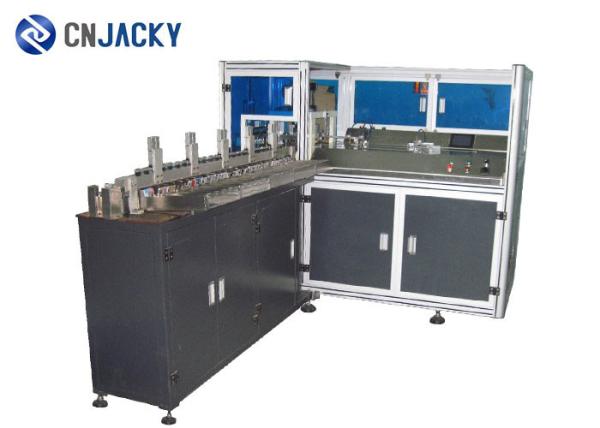

3*8 / 5*5 Layout Large Plastic Card Making Machine Format PLC Control RFID Card Punching Machine Smart Card Cutter

Function and Application Introduction:

This automatic card punching machine can help you to save about 12 workers and increase 50% your production capacity. This business card cutting machine is the specialized equipment for handling a complex printed sheet that printed several different designs or combinations of card. This card punching machine provides cutting, collating and separating the different design cards automatically. Such as a sheet printed 5x5 up (also 3x8, 6x8..etc) ups format card sheet 25 (24, 48 pcs) different card designs will be cut and separated to a 5 or 25 groups by the 25 (24, 48) chambers card collating system automatically, operator doesn’t need to separate or group card again, in order to increase the production rate, save labor cost, reduce scrape and scrap.

Of course we can tailor-make and design the automatic collecting system according your special request, such as 3x8 ups, 6x8 ups format of card sheet, etc.

Technical parameter:

Model 5A -25PLC Punching Machine
Power AC 380V 50/60 HZ 5.5KW
Air pressure 6kg /cm square
Layout 5*5, 3*8, 6*8, or customized
Applicable materials PVC,ABS,PET,mixed material of PVC and ABS paper cards
Production Capacity 18000 cards/hour
Card separation 5,25
Control method PLC program + Servo system
Operator 1 person
Weight 1200kg Approx
Overall dimension 3000mm(L) * 1240mm(W) * 1750mm(H)

After service:

We provide cheap & safe &fast shipping company and track the order until receipt.sure, Once we get the tracking number we will also send to you.


If any defect not by Human being,just take a video for us, we will help you fix it.
