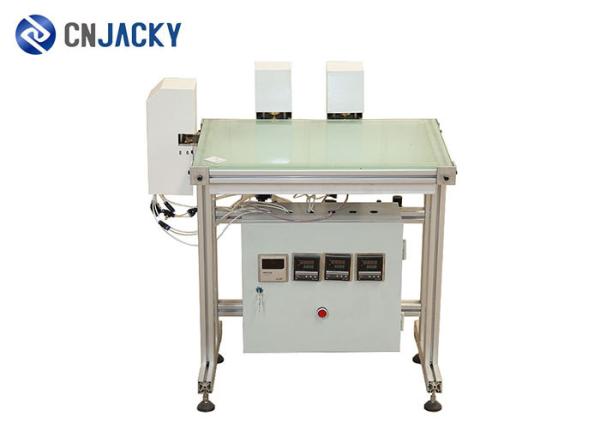

Relay Control Small Spot Position Welding Machine For PVC / ABS Card Making Sheet
Relay Control Small Spot Position Welding Machine For PVC / ABS Card Making Sheet
Relay Control Small Spot Position Welding Machine For PVC / ABS Card Making Sheet
Relay Control Small Spot Position Welding Machine For PVC / ABS Card Making Sheet
Relay Control Small Spot Position Welding Machine For PVC / ABS Card Making Sheet
Relay Control Small Spot Position Welding Machine For PVC / ABS Card Making Sheet
Relay Control Small Spot Position Welding Machine For PVC / ABS Card Making Sheet
Relay Control Small Spot Position Welding Machine For PVC / ABS Card Making Sheet
Specifications
Brand Name :
CNJACKY
Model Number :
CNJ-DH400
Certification :
CE
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
20sets / Month
Delivery Time :
15 days after payment
Packaging Details :
Standard export wooden box packaging
Available sheet :
3*8,4*8,5*5((with choice)
Air source :
6 kg/Square cm(no water)
Total power :
2KW
Output :
Approx.200~400 sheet/h
Temperature control range :
Degree Celsius 0-40(can be set)
Temperature control precision :
Degree Celsius ±2
Description

Relay Control Card Making Auxiliary Equipment Small Spot Position Welding Machine For PVC / ABS Sheet

Function:

The machine is controlled by relay, the welding machine uses the import temperature control instrument to control the temperature and the time relay to control the welding time. It is available for the contraposition welding of the multilayer card making sheet.

Available material range:

PVC, ABS, PET etc, different materials have different welding parameter (such as temperature, time, and pressure)

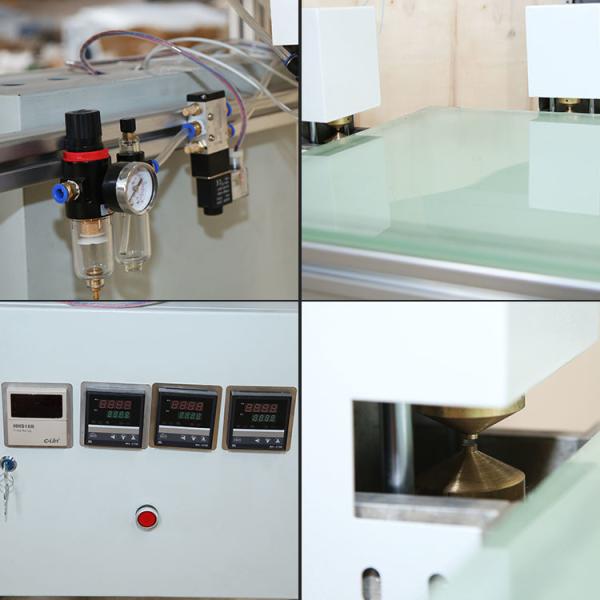

1, The machine uses double cylinders as the motivity,the pressure of the welding spot can be adjusted.

2, Equipped with three welding head,the welding position can be adjusted to assure the welding material go to the wrong position.

3, Use the clarity glass as the table, with light in the interior of the machine,so that the counterpoint of material can be kept to the side and be positioned by printed wireframe, which means positioning is more precise.

4, Heating temperature control method:use the heater to heat up and the import thermocouple cooperating with temperature controller to control the temperature,it is easy to set and the temperature controller is precision.

5, Spot welding time is controlled by time relay,it is simply to set

Technical parameter :

Power source AC 220V/50 HZ Welding spot quantity 3 PCS(the position can be moved)
Air source 6 kg/c㎡(no water) Weight Approx.80Kg
Total power 2KW Available sheet 3X8,4X8,5X5((with choice)
Temperature control range 0-400℃(can be set) Operator 1 Person
Temperature control precision ±2℃ Overall dimension L600×W600×H1000mm
Output Approx.200~400 sheet/h
