Aluminum Laminating Plate Plastic Card Laminating Machine 9000 Cards/Hour 0-16Mpa
Aluminum Laminating Plate Plastic Card Laminating Machine 9000 Cards/Hour 0-16Mpa
Aluminum Laminating Plate Plastic Card Laminating Machine 9000 Cards/Hour 0-16Mpa
Aluminum Laminating Plate Plastic Card Laminating Machine 9000 Cards/Hour 0-16Mpa
Aluminum Laminating Plate Plastic Card Laminating Machine 9000 Cards/Hour 0-16Mpa
Aluminum Laminating Plate Plastic Card Laminating Machine 9000 Cards/Hour 0-16Mpa
Aluminum Laminating Plate Plastic Card Laminating Machine 9000 Cards/Hour 0-16Mpa
Aluminum Laminating Plate Plastic Card Laminating Machine 9000 Cards/Hour 0-16Mpa
Specifications
Brand Name :
CNJACKY
Model Number :
CNJ-5200A
Certification :
CE
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
20 sets / month
Delivery Time :
30 days after payment
Packaging Details :
Standard export carton packaging
Cooling Method :
Water Cooling
Pressure Stages :
Heating 12 stages/cooling 5 stages
Pressure Precision :
+/-0.1 MPa
Temperature Precision :
0-200℃ +/-1(℃)
Laminating Plate Smoothness :
+/-0.05mm
Laminating Plate :
Aluminum Alloy
Hydraulic Cylinder :
single/four
Laminating Platen Size :
420mm*520mm
Description

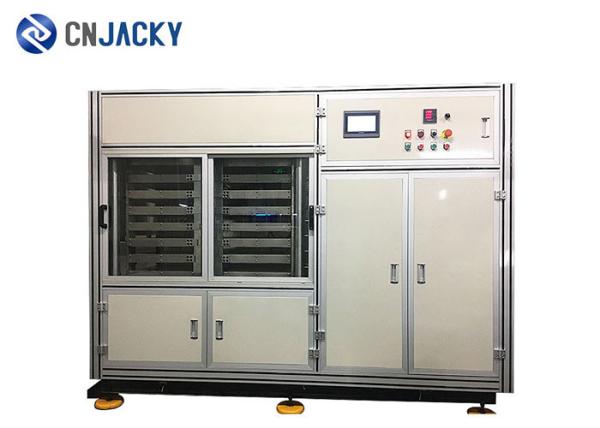

Automatic Aluminum Laminating Plate Plastic Card Laminating Machine With Computer Control

Production:

This machine breaks with traditional designs and realizes automatic material transfer instead of manual transfer,achieving safe and high efficiency working.

PLC industrial automation control system & touch screen display are imported, convenient for operation; With its powerful functions, the software can save several lamination parameters automatically.

Trouble alarm and record functions make the machine more humanized.

Both heating and cooling tower are made of aluminum alloy, realizing fast heating & cooling functions with non-rusty.

The luxury energy saving model with whole sealing design for heating insulation saves energy.

The machine with 7 working daylights improved 20%efficiency compared to similar products.

With automatic frequency conversion function, high quality imported VFD matched with variable fluid technique, the precision up to ±0.1Mpa

With automatic moving type of transfer, materials can be transferred easily and automatically.

With special laminated trays.

Technical Parameter:

Cooling Method Water Cooling
Heating Method Electric Heating
Pressure Stages Heating 12 stages/cooling 5 stages
Pressure Precision +/-0.1 MPa
Temperature Precision 0-200℃ +/-1(℃)
Laminating Plate Smoothness +/-0.05mm
Laminating Plate Aluminum Alloy
Hydraulic Cylinder single/four
Pressure 0-16Mpa
Laminating Platen Size 420mm*520mm
Opening 7
Opening Space 50mm
Laminating Plate thickness 45mm
Electric 380V ,50/60HZ, 26 KW
Dimension L2650mm*W1100mm*H1950mm
Weight 3000 KG
Output around 9,000 cards/hour

Our Services:
◊ 24 hours on-line services for you.

◊ Professional person reply your questions.

◊ One year warranty for you.

◊ Perfect and careful after-sale service.
