Specifications
Model NO. :
65/33
Feeding Mode :
One Feed
Assembly Structure :
Separate Type Extruder
Screw :
Single-Screw
Engagement System :
Full Intermeshing
Screw Channel Structure :
Deep Screw
Exhaust :
Exhaust
Automation :
Automatic
Computerized :
Computerized
Certification :
ISO9001
Raw Material :
PP PE Granules
Machine Type :
Extrusioin Line
Processing Type :
Extrusion Process
Transport Package :
Film
Specification :
20-63mm
Trademark :
HYD
Origin :
Shandong, China
Package Size :
2100.00cm * 250.00cm * 200.00cm
Package Gross Weight :
6000.000kg
Type :
Pipe Extruder
Plastic Processed :
PE
Product Type :
Extrusion Molding Machine
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
Shandong, China
Brand Name :
Changyue
Packaging Details :
Export Film Packing / According To Customer
Delivery Time :
15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)
Description
HDPE pipe production line

Prouduct description
PE pipe extrusion machine is mainly used for producing agricultural irrigation pipes,drainage pipes,gas pipes,water supplying pipes,cable conduit pipes etc. The pipe has some excellent features such as heating resistant,etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise,Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the priecise of the pipes.Turn key solution can be provided, like laser printer , crusher,shredder, water chiller,air compressor etc. to achieve high-grade and automatic tube production.

Process Flow:PP PE Granules HDPE Pipe Production Line with Innovative Single-Screw Technology
PP PE Granules HDPE Pipe Production Line with Innovative Single-Screw Technology

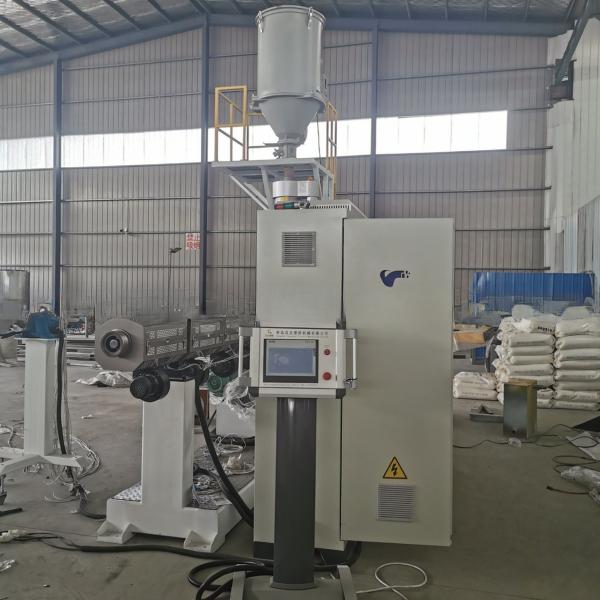

Raw material+master batches-Mixing-Vacuum feeder-Plastic hopper drier-Single screw extruder- Co-extruder for color string&multi layers-Mould-Vacuum calibration tank-Spray cooling water tank-Haul off-No dust cutter-double/single disc winding/stacker-Final product inspecting&packing

Technical parameter
pipe range(mm) 20-63 20-110 75-250 90-315 110-450 250-630 400-800
extruder model SJ65/33 SJ65/33 SJ60/38 SJ75/38 SJ75/38 SJ90/38 SJ120/38
extruder power(kw) 45 75 110 160 160 280 315
max.output(kg/h) 130 220 410 580 580 900 1150

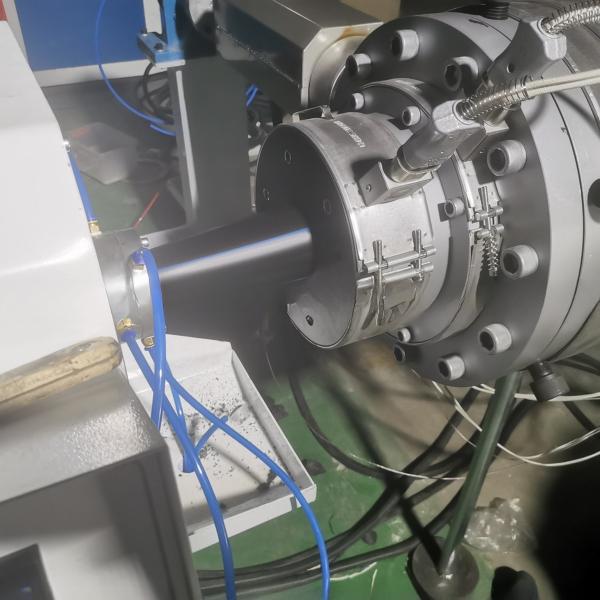

Machine details
PP PE Granules HDPE Pipe Production Line with Innovative Single-Screw Technology

Company profile &exhibition
Qingdao Changyue Plastic Machinery Co.,Ltd is a professional plastic extrusion machine manufacturer located in Qingdao city - abeautiful seaside city. We are using the latest technology. Our products include plastic pipe machine, plastic profile machine,plastic sheet machines, plastic board machines, PP PET strap band lines. Geostrap band lines. Our machines have been exported to more than 30 countries include Canada, USA, Russia, Bulgaria, Turkey, India, Kuwait, Saudi arab, Nepal, Sri Lanka, Israel, Nigeria, Rawanda, Indonesia, Vietnam,Thailand etc..
PP PE Granules HDPE Pipe Production Line with Innovative Single-Screw Technology
PP PE Granules HDPE Pipe Production Line with Innovative Single-Screw Technology
PP PE Granules HDPE Pipe Production Line with Innovative Single-Screw Technology

Packing
PP PE Granules HDPE Pipe Production Line with Innovative Single-Screw Technology
