Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Specifications
Model NO. :
SJSZ 65/132
Plastic Processed :
PVC
Product Type :
Extrusion Molding Machine
Feeding Mode :
One Feed
Assembly Structure :
Separate Type Extruder
Screw :
Twin-Screw
Engagement System :
Full Intermeshing
Screw Channel Structure :
Deep Screw
Exhaust :
Exhaust
Automation :
Automatic
Computerized :
Computerized
Certification :
ISO9001 CE
Extruder Size :
Sjsz 65/132 / Sjsz 80/156
Machine Output :
200-450 Kg/H
Pipe Size :
2-8 Inch
Transport Package :
Film
Specification :
25*1.5*3.5m
Trademark :
CHANGYUE
Origin :
Shandong, China
Package Size :
1800.00cm * 200.00cm * 250.00cm
Package Gross Weight :
7500.000kg
After-sales Service :
on Site Installtion
Warranty :
One Year
Type :
Pipe Extruder
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
Shandong, China
Brand Name :
Changyue
Packaging Details :
Export Film Packing / According To Customer
Delivery Time :
15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)
Description

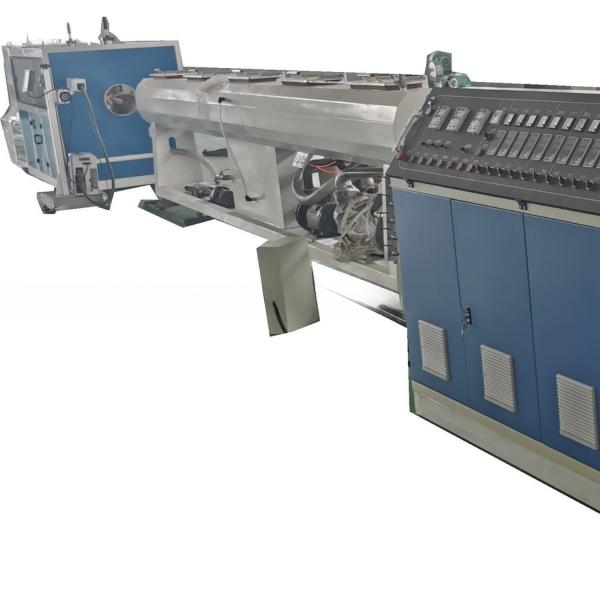

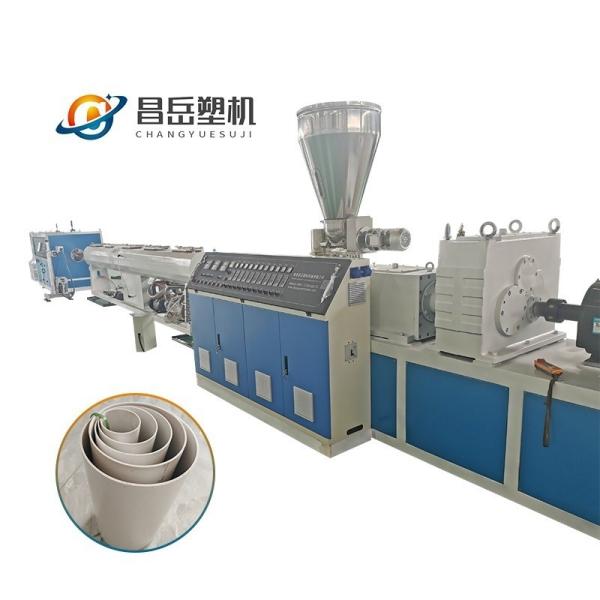

PVC pipe production line / PVC tube making machine


Description of PVC pipe makign machine

PVC pipe extruder machine/UPVC pipe making machine is mainly used in the manufacturer of the UPVC and PVC pipes with various tube diameters and wall thickness such as agricultural and constructional plumbing, water supply and drain etc. This set is composed of conical twin-screw extruder,vacuum calibration tank, hual-off machine,cutter, stacker etc.
Our machine can produce the PVC pipe with diameter from 16-630mm.

Main parameter of PVC pipe making machine
Model pipe range(mm) extruders max.speed(m/min) total power(kw) max.output(kg/h) line length(m)
PVC-50*2 16-50 SJSZ51/105 6 60 150 20
PVC-63 16-63 SJSZ45/90 10 45 120 20
PVC-110 50-110 SJSZ51/105 6 60 150 24
PVC-160 63-160 SJSZ65/132 5 100 300 24
PVC-250 110-250 SJSZ80/156 3.5 120 400 28
PVC-315 160-315 SJSZ80/156 3 160 400 36
PVC-450 250-450 SJSZ92/188 1.5 200 700 36
PVC-630 315-630 SJSZ92/188 0.9 230 700 36

Machine details
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
SPIRAL AUT LOADER

1. MOTOR POWER: 2.2 KW

2. LOADING CAPACITY: 600 KG/H

3. MATERIAL : SS304

4. LENGTH OF THE SS PIPE: 4.5 M / COMTOMERIZED

5. SUITABLE MATERIAL: PVC POWDER
SJSZ 65/132 twin conical screw extruder

1. double screw feeder 1.5 kw
2. main motor : 37 kw
3. gear box brand: JIANGYIN
4. screw barrel brand: Demaji / Guangming
5. cooling type: fan cooling
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing

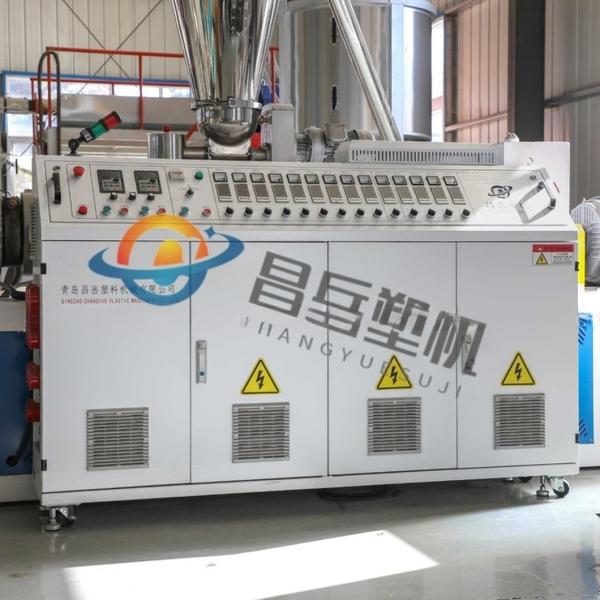

control panel

1. inverter brand: ABB / SIEMENS / DELTA
2. contactors / relays: siemens
3. air switch: siemens
4. temperature control meter: Omran
die

1. heater: ceramic heater
2. heating power: 25 kw
3. pvc pipe size: 3-8 inch
4. with support frame
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing

Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
vacuum tank:

1. vacuum pump: 5.5 kw
2. water pump power: 4 kw
3. vacuum tank length: 6000 mm
4. tank material: ss304
5. frond & back movement: 600 mm
6. all fitting material: SS304

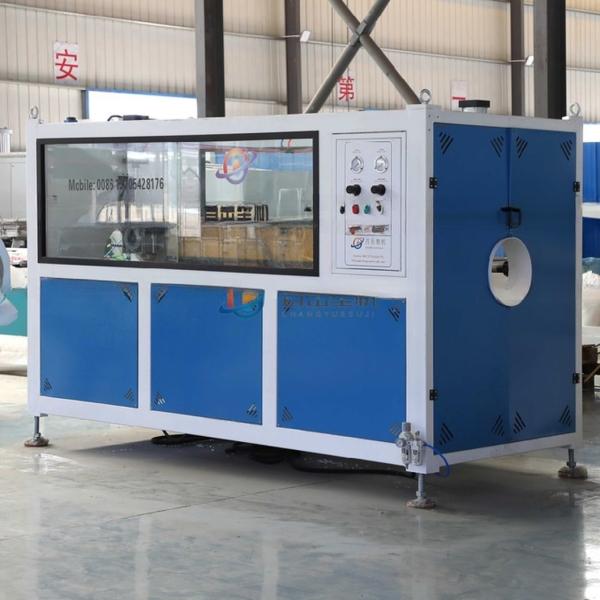

HAUL OFF

1. 3-CLAW HAUL OFF
2. MOTOR POWER: 4 KW
3. ELECTRICAL PARTS: SIEMENS
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing
Sjsz 65/132 / Sjsz 80/156 PVC Pipe Extruder for Plastic Water Drainage Manufacturing

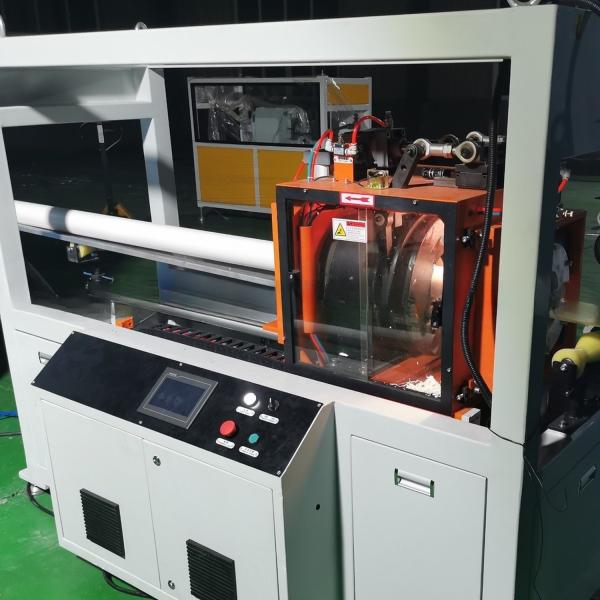

CUTTER

CUTTING RANGE: 3-8 INCH
