Specifications
Model NO. :
SJSZ65
Automation :
Automatic
Computerized :
Computerized
Certification :
CE, ISO9001:2008
Customized :
Customized
Condition :
New
After-sales Service :
1 Year
After-Sales Service Provided :
Engineers Available to Service Abroad
Loading Port :
Qingdao Port
Motor Brand :
Weg/Siemens
Inverter Brand :
ABB/Delta
Machine Output :
150 Kg/H
Raw Material :
PVC Powder
Transport Package :
Film Packing
Specification :
50-200 mm
Trademark :
Changyue
Origin :
Qingdao, China
HS Code :
84772090
Package Size :
500.00cm * 250.00cm * 200.00cm
Package Gross Weight :
5000.000kg
Lead Time :
15 days (1 - 1 Sets) To be negotiated ( > 1 Sets)
Warranty :
1 Year
Product Type :
PVC Pipe
Screw No. :
Double-screw
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
Shandong, China
Brand Name :
Changyue
Packaging Details :
Export Film Packing / According To Customer
Delivery Time :
15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)
Description

Double-screw UPVC / CPVC Pipe Production Line Making Machine for Diverse Applications
Double-screw UPVC / CPVC Pipe Production Line Making Machine for Diverse Applications
Double-screw UPVC / CPVC Pipe Production Line Making Machine for Diverse Applications
Double-screw UPVC / CPVC Pipe Production Line Making Machine for Diverse Applications
Double-screw UPVC / CPVC Pipe Production Line Making Machine for Diverse Applications
Double-screw UPVC / CPVC Pipe Production Line Making Machine for Diverse Applications
Double-screw UPVC / CPVC Pipe Production Line Making Machine for Diverse Applications
Double-screw UPVC / CPVC Pipe Production Line Making Machine for Diverse Applications
PVC drain pipe/water supply pipe/conduit pipe production line

China good quality UPVC / CPVC pipe production line

2. pvc pipe making machine adopts advanced design concept to ensure the efficient extrusion of PVC powder,
combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high
capacity production.

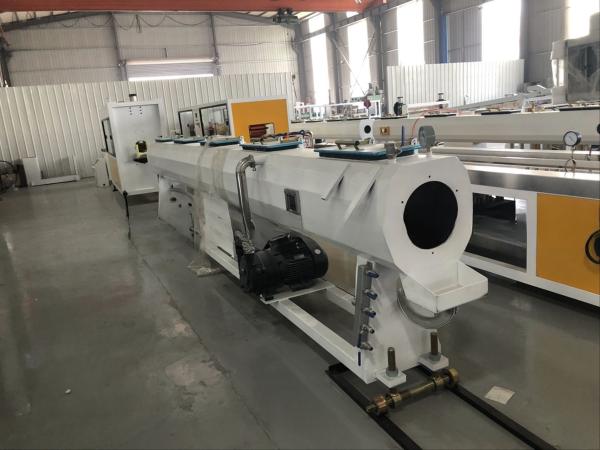

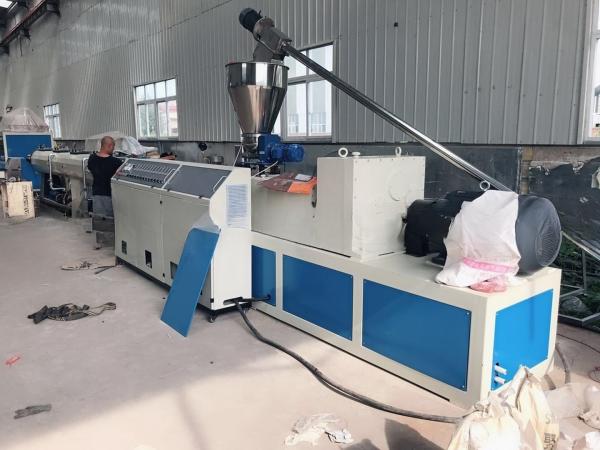

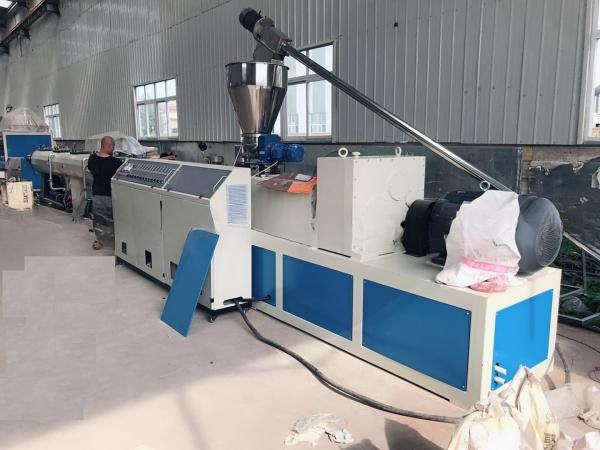

3. pvc pipe making machine consists of : Conical twin screw extruder, pipe die head, vacuum calibrating tank,
water spraying tank, haul off machine, cutting machine, and stacker etc.

4. pvc pipe making machine can produce the PVC pipe with diameter :

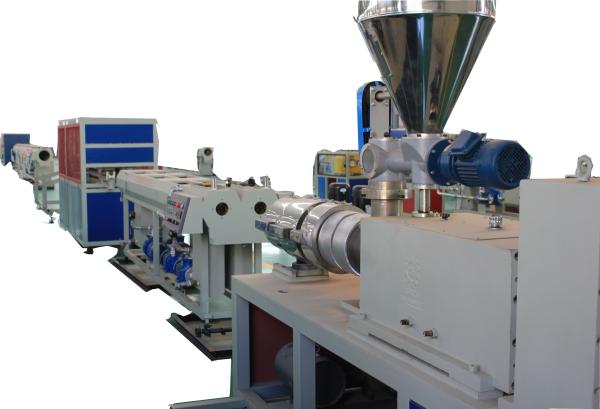

Layout of UPVC pipe extrusion machinery:

Feeder →Conical Twin Screw Extruder → Pipe Mould →Vacuum Calibration Tank → Haul Off → Cutter → Stacker

Main parameter

Model Pipe range
(mm)		 extruders Max.output
(kg/h)		 Max.speed
(m/min)		 Total power(kw) Line length(m)
PVC-50X2 16-50 SJSZ51/105 150 6m 60 20
PVC-63 16-63 SJSZ45/90 120 10m 45 20
PVC-110 50-110 SJSZ51/105 150 6m 60 24
PVC-160 63-160 SJSZ65/132 300 5m 100 24
PVC-250 110-250 SJSZ80/156 400 3.5m 120 28
PVC-315 160-315 SJSZ80/156 400 3m 160 28
PVC-450 250-450 SJSZ90/188 700 1.5m 200 36
PVC-630 315-630 SJSZ90/188 700 0.9m 230 36
