Specifications
Model NO. :
SJSZ 65/132
Customized :
Customized
Condition :
New
After-sales Service :
Site Installation
Transport Package :
Export Package
Specification :
50-160 mm
Trademark :
Changyue
Origin :
Qingdao, China
HS Code :
84772090
Supply Ability :
250 Kg/H
Warranty :
One Year
Product Type :
PVC Pipe
Screw No. :
Double-screw
Automation :
Automatic
Computerized :
Computerized
Certification :
CE, ISO9001:2008
Customization :
Available | Customized Request
Place of Origin :
Shandong, China
Brand Name :
Changyue
Packaging Details :
Export Film Packing / According To Customer
Delivery Time :
15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)
Description
Product Description

China best PVC pipe extrusion production line

Main Features:
Specified screw design for better material plasticizing&mixing effect and lower cost formula.
Higher density and stronger mechanical properties of the pipe as a result of large compression ratio of mold design.
More stable and reliable hauling, no deformation, multi-caterpillar structure of haul-off unit, suitable for different size range.
Planetary cutting with chambering function for stable&reliable cutting and precise length-counting.

machine component:

1. material auto loader
2. SJSZ65/132 twin conical screw extruder
3. mould
4. vacuum water tank
5. haul off
6. cutter
7. stacker

Product Parameters

Main technical parameters


Model
Pipe range/mm

Capacity kg/h
 Maximum linear velocity
(m/min)

Main motor power /kw
Total length/m
SJSZ-65/132 50-110
120-250
 6
37
 22
SJSZ-80/156 110-250
250-400
 5
75
 23
SJSZ-92/188 315-630
400-700
 1.5
110
 32
PVC Double-Pipe Production Line
Model Pipe Diameter Output Max Speed Motor Total Length
SJSZ-65/132 50-75mm 250-350 kg/h 6m/min*2 30kw 22m
SJSZ-80/156 50-110mm 500-750kg/h 8m/min*2 55kw 23m

Detailed Photos
SJSZ 65/132 Double-screw PVC Pipe Extrusion Line for Customized Requirements
spiral type auto loader

SJSZ 65/132 twin conical screw extruder.

37 kw main motor

special screw designed for PVC pipe

high output extruder

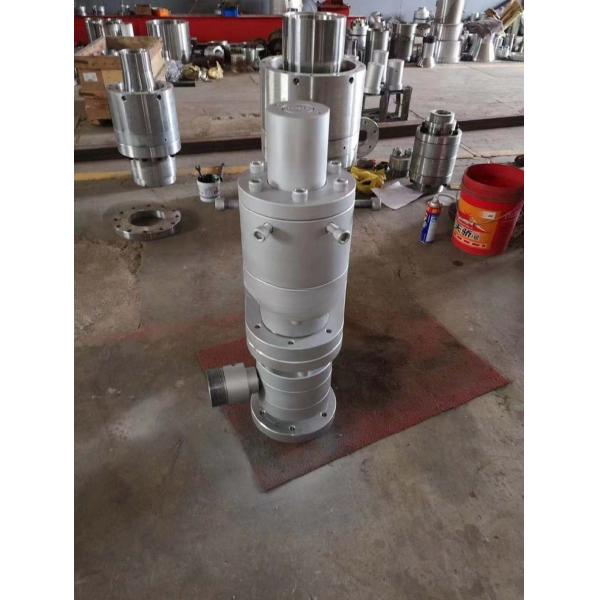

special PVC pipe mould
cups & nozzal & stainless steel sizer
size: 50-110 mm, 75-160 mm 110-200 mm 160-315 mm

SJSZ 65/132 Double-screw PVC Pipe Extrusion Line for Customized Requirements

SJSZ 65/132 Double-screw PVC Pipe Extrusion Line for Customized Requirements
vacuum tank length: 6 m
material of tank: stainless steel 304
vacuum pump: 5.5 kw
SJSZ 65/132 Double-screw PVC Pipe Extrusion Line for Customized Requirements
SJSZ 65/132 Double-screw PVC Pipe Extrusion Line for Customized Requirements

Certifications

SJSZ 65/132 Double-screw PVC Pipe Extrusion Line for Customized Requirements
SJSZ 65/132 Double-screw PVC Pipe Extrusion Line for Customized Requirements
SJSZ 65/132 Double-screw PVC Pipe Extrusion Line for Customized Requirements
Our Advantages

1. After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine,
we will test the machines and send the sample to buyer.

2..After shipment, the seller will send one or two technicians to the buyer's factory to help the buyer install the machine and train
workers for buyer.

3. We will supply all electricity drawing, machine installation drawing.

4. When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays,
and other items which is easier broken.
