Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Specifications
Condition :
New
Plastic Processed :
PVC
Application :
PIPE
Screw Design :
Double-screw
Twin Screw Type :
Counter-rotating conical Twin-screw
Screw Material :
40CrMoTi
Screw L/D Ratio :
22:1
Screw Speed (rpm) :
40 rpm
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, So
Place of Origin :
Shandong, China
Brand Name :
Changyue
Voltage :
220-415V
Power (kW) :
75
Weight :
6000 KG
Warranty :
1 Year
Key Selling Points :
MACHINE
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Construction works
Video outgoing-inspection :
Provided
Warranty of core components :
3 years
Core Components :
Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox, Screw
Machinery Test Report :
Provided
Name :
pvc conduit pipe extrusion machine
Raw material :
PVC Resins+CaCo3
Final product :
PVc conduit pipe
Inverter :
ABB / DELTA / SIEMENS
Motor :
WEG / SIEMENS
Temperature controller :
Omron Japan
Extruder type :
TWIN CONICAL SCRWE EXTRUDER
Pipe diameter :
16- 63 MM
Price :
$28,000.00/pieces >=1 pieces
Packaging Details :
Export Film Packing / According To Customer
Delivery Time :
15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)
Description
Products Description
1. Process flow:
PVC powder + additive → mixing → spiral auto loader → twin screw extruder → mould → vacuum calibration tank →
haul off machine →laser pinter →cutting machine → stacker or automatic belling machine

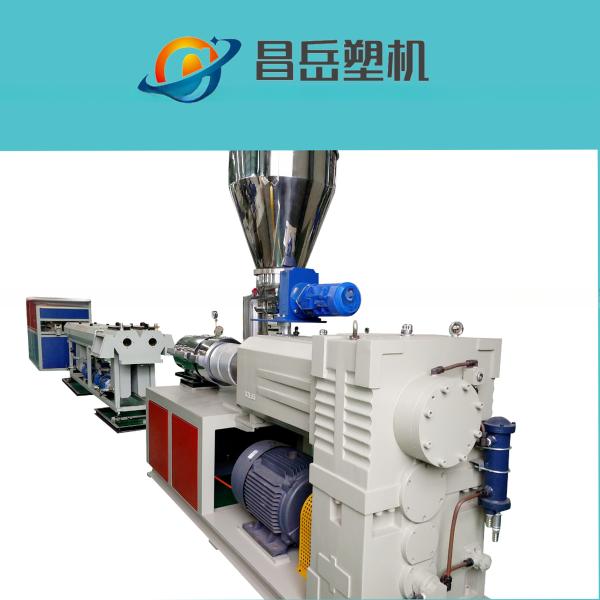

2.Conical twin screw extruder

3.Die head. Due to the diameter, it can be single, double and four die head

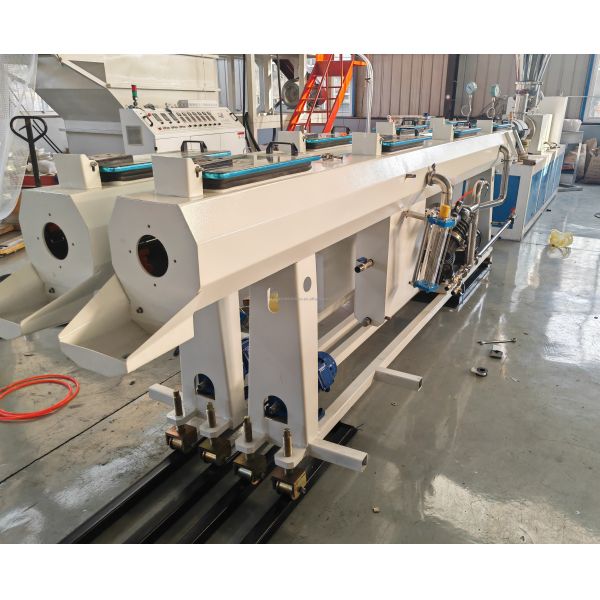

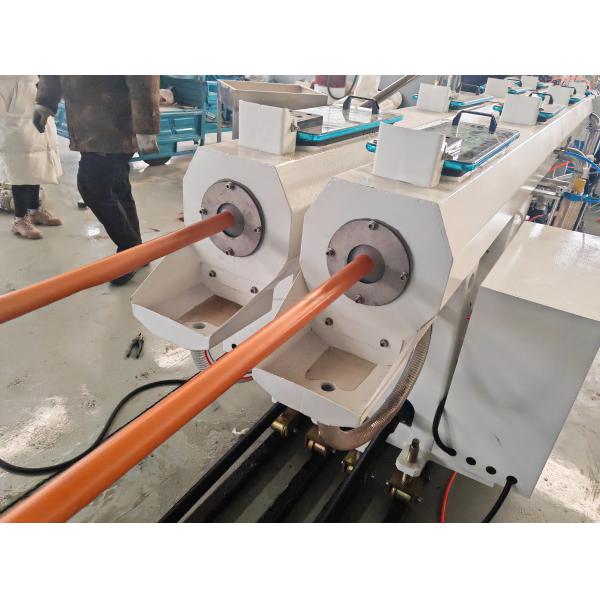

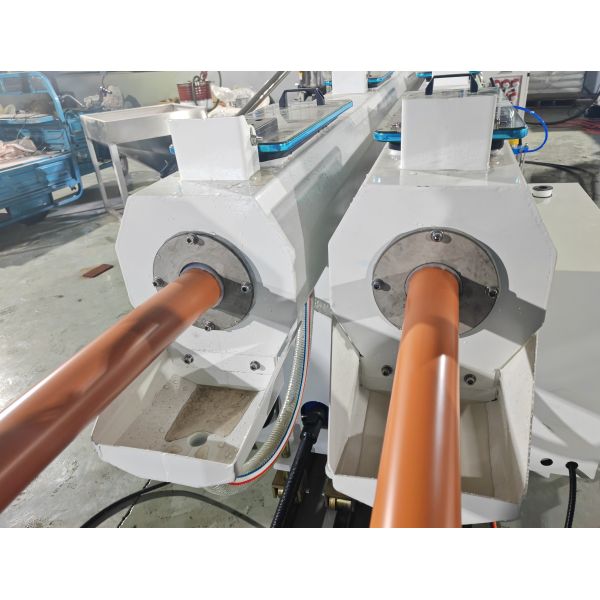

4.Vacuum tank: due to diameter, it can be designing of single, double vacuum chambers

5.Haul-offs: due to diameter, it can be designing of double, three, four, six, eight caterpillars

6.Cutter: due to diameter, it can be designing of saw cutter or planetary cutter

7.stacker or automatic belling machine

8. laser printer: print the company name or brand name on pipe
Product Paramenters
model
diameter range
extruder
main motor
output
CY-PVC 50 x 2
16-50 mm
51/105
22 kw
150 kg/h
CY- PVC -63
16-63
45/90
18.5 kw
80 kg/h
CY-PVC 110
50-110 mm
51/105
22 kw
150 kg/h
CY-PVC 160
63-160
65/132
37 kw
250 kg/h
CY-PVC 250
110-250 mm
80/156
55 kw
400 kg/h
CY-PVC 315
160-315 mm
80/156
75 kw
450 kg/h
CY-PVC 450
250 - 450 mm
92/188
90 kw
700 kg/h
CY-PVC 630
315-630
92/188
90 kw
700 kg/h
Details Images
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Company Profile
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
our workshop
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Certifications
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Plastic CPVC UPVC Dual Electrical Conduit Pipe Machine with 40 rpm Screw Speed
Why Choose Us
1. Low cost
* All the machine ,we make it ourself to reduce the cost of our customer.

2. Genuine product with excellent quality
* We choose our material very strict.
* All the material come to our factory must pass the quality test
* Substandard goods are returned to the supplier.

3. Engerneers available to serve oversea

4. Quick delivery
* The company provide just in time delivery with its streamlined supply chain.

5. Cost saving
* Se take strong attention to every detail in the manufacturing process.
* The quality control in our factory is very strict.
* All defective semi-manufactures must be treated again or reject.
* All the machine must be checked out ,then delivered to our customer.
* All about that pushing up the price,but get good quality machine.
* What we want to do is give our customer a good quality product with stable working and long lived.
