Specifications
Model NO. :
65/132
Condition :
New
Pipe Diameter :
50-200 mm
Extruder Size :
Sjsz 65 / 132
Main Motor :
37 Kw
Total Power :
80 Kw
Transport Package :
Export Package
Specification :
50-160 mm
Trademark :
HLD
Origin :
Qingdao, China
HS Code :
84772090
Supply Ability :
200 -300 Kg/H
Product Type :
PVC Pipe
Screw No. :
Double-screw
Automation :
Automatic
Computerized :
Computerized
Certification :
CE, ISO9001:2008
Customized :
Customized
Customization :
Available | Customized Request
Place of Origin :
Shandong, China
Brand Name :
Changyue
Packaging Details :
Export Film Packing / According To Customer
Delivery Time :
15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)
Description

PVC water drainage pipe extrusion production line / making machine
PVC pipe extrusion machine / extrusion line
full automatic UPVC water drainage pipe production line
turnkey PVC pipe extrusion production line
complete PVC pipe extrusion production line extrusion line for pvc water supply pipe
China best PVC pipe extrusion production line
full automatic PVC pipe production line
UPVC drainage pipe extrusion line
automatic pvc pipe extrusion machine/production line
good quality UPVC pipe extrusion machine / production line

We supply turnkey PVC pipe extrusion project,
include hot cold mixer, extrusion machine, belling machine, laser printer, slotting machine, threading machine

Main Features:
Specified screw design for better material plasticizing&mixing effect and lower cost formula.
Higher density and stronger mechanical properties of the pipe as a result of large compression ratio of mold design.
More stable and reliable hauling, no deformation, multi-caterpillar structure of haul-off unit, suitable for different size range.
Planetary cutting with chambering function for stable&reliable cutting and precise length-counting.

machine component:

1. material auto loader
2. SJSZ65/132 twin conical screw extruder
3. mould

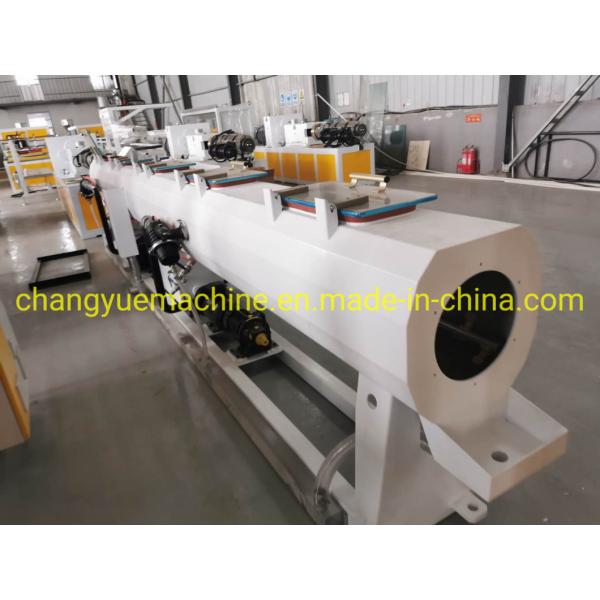

4. vacuum water tank

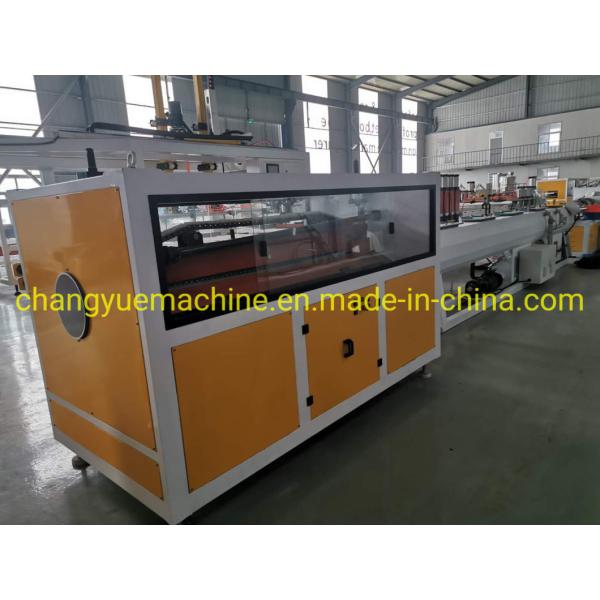

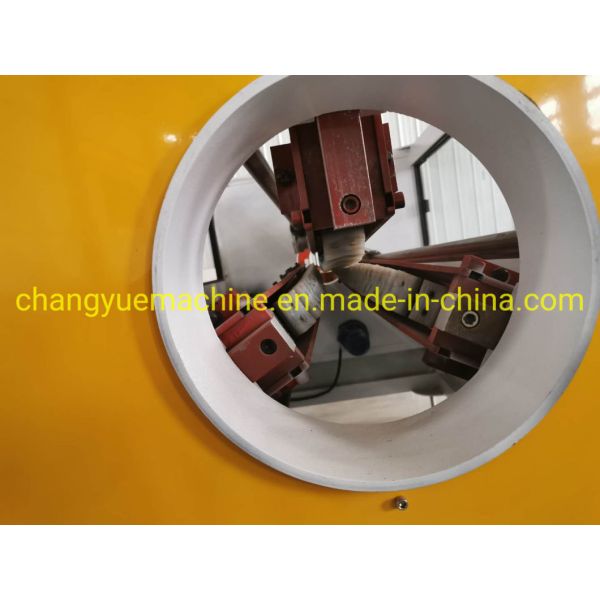

5. haul off
6. cutter
7. stacker

Main technical parameters


Model
Pipe range/mm

Capacity kg/h
 Maximum linear velocity
(m/min)

Main motor power /kw
Total length/m
SJSZ-65/132 50-110
120-250
 6
37
 22
SJSZ-80/156 110-250
250-400
 5
75
 23
SJSZ-92/188 315-630
400-700
 1.5
110
 32

PVC Double-Pipe Production Line
Model Pipe Diameter Output Max Speed Motor Total Length
SJSZ-65/132 50-75mm 250-350 kg/h 6m/min*2 30kw 22m
SJSZ-80/156 50-110mm 500-750kg/h 8m/min*2 55kw 23m
