6-50mm Diameter Range PVC Fibre Reinforced Pipe Making Machine 20-110kg/h Output 35-65kw Installation Power

Specifications

Brand Name :

Changyue

Model Number :

SJSZ55/33

Certification :

CE,ISO9001

Place of Origin :

Shandong, China

MOQ :

1 SET

Price :

USD 25000-USD 35000 / SET

Payment Terms :

L/C, T/T

Supply Ability :

5 SETS

Delivery Time :

45 DAYS

Packaging Details :

Export Film Packing / According To Customer

Model NO. :

SJSZ 55/33

Screw No. :

single screw

Automation :

Automatic

Computerized :

Computerized

Customized :

Customized

Condition :

New

After-Sales Service Provided :

Engineers Available to Service Abroad

Speed :

12-20m/min

Loading Port :

Qingdao Port

Transport Package :

Film

Specification :

35*3.5*3.5m

Trademark :

CHANGYUE

Origin :

Shandong, China

HS Code :

84772090

Package Size :

3500.00cm * 250.00cm * 350.00cm

Package Gross Weight :

15000.000kg

After-sales Service :

Site Installation

Warranty :

One Year

Customization :

Available | Customized Request

Shipping Cost :

about shipping cost and estimated delivery time.

Voltage :

380V 50HZ 3Phase(Customized)

Description

PVC fibre reinforced pipe making machine/PVC soft pipe line

Description of PVC fibre reinforced pipe makign machine

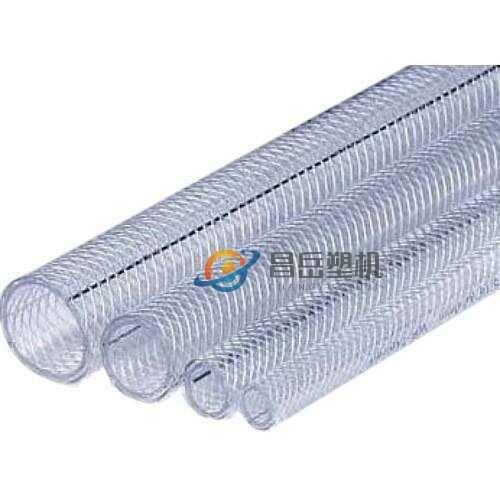

This line is designed to produce PVC fibre reinforced hose,the wall of which is three layers,outer and inner layer are soft pvc hose ,middle layer is terylene fibre network,which has good chemical and physical propery.It is mainly used for the transportation of high pressure or corrosive gas,and is widely used in the machinery; coal mine,oil,chemical,agriculture irrigation,gas and building.

Technical data

extruders	SJ45/30	SJ55/30	SJ65/30	SJ75/30
diameter range(mm)	6-16	8-25	12-50	20-50
output(kg/h)	20-40	30-60	40-80	60-110
installation power(kw)	35	42	50	65

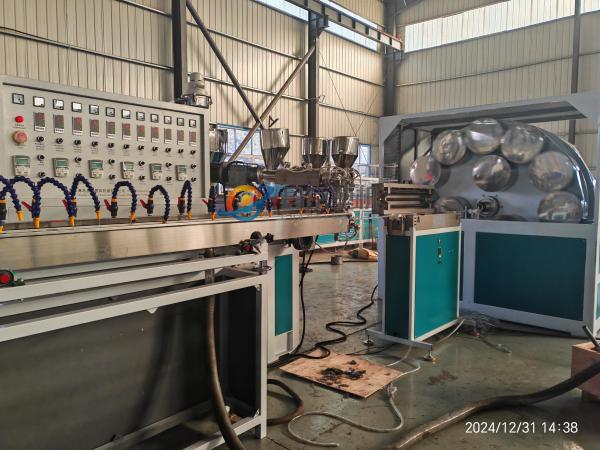

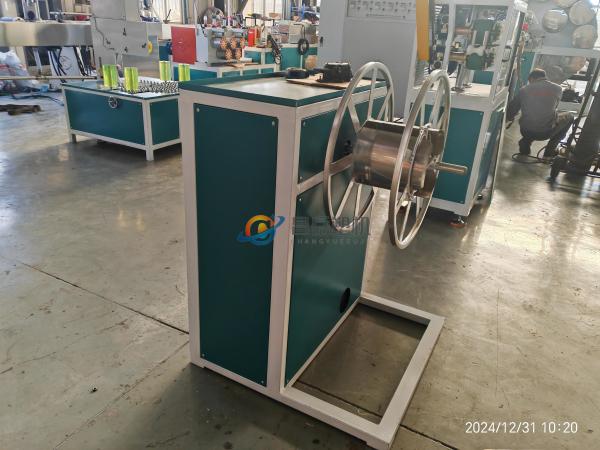

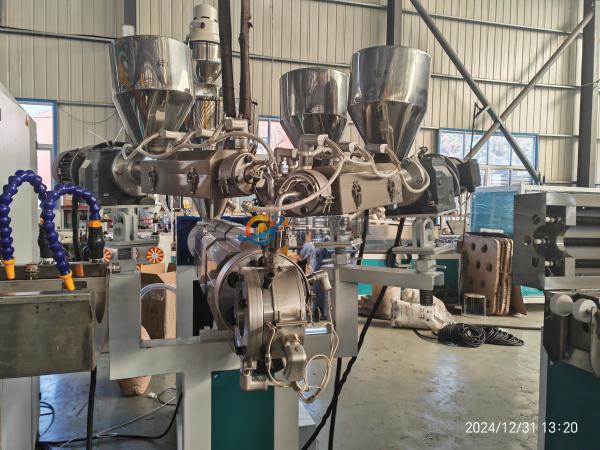

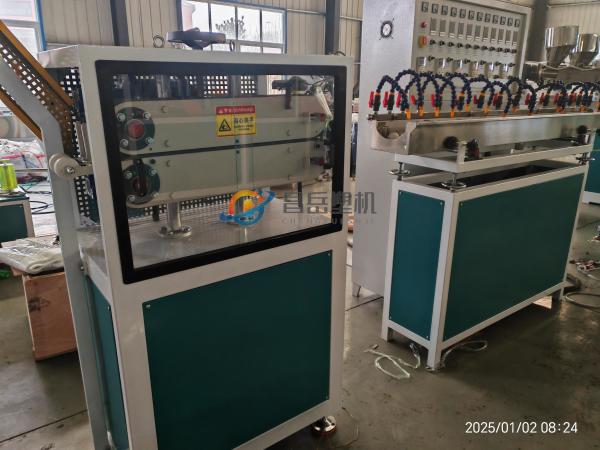

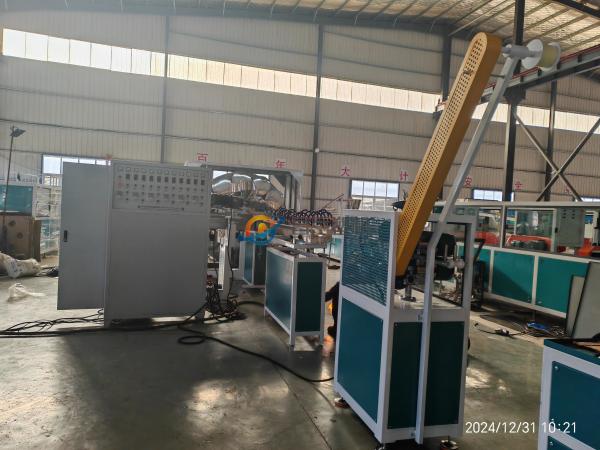

Product details

6-50mm Diameter Range PVC Fibre Reinforced Pipe Making Machine 20-110kg/h Output 35-65kw Installation Power

Our customer & exhibition
Qingdao Changyue Plastic Machinery Co.,Ltd is a professional plastic extrusion machine manufacturer located in Qingdao city - abeautiful seaside city. We are using the latest technology. Our products include plastic pipe machine, plastic profile machine,plastic sheet machines, plastic board machines, PP PET strap band lines. Geostrap band lines. Our machines have been exported to more than 30 countries include Canada, USA, Russia, Bulgaria, Turkey, India, Kuwait, Saudi arab, Nepal, Sri Lanka, Israel, Nigeria, Rawanda, Indonesia, Vietnam,Thailand etc

Packing
