Specifications
Brand Name :
YAOAN
Model Number :
AF-150
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
TT,LC
Supply Ability :
100 SETS PER MONTH
Delivery Time :
30-90 DAYS
Packaging Details :
WOODEN BOX
Machine color :
Blue
Screw :
single screw
Capacity :
100-500kg/hr
Processing material :
PP, ABS, PA, PVC, PC EVA, Pet, PMMA
LD :
28:1
Inverter :
ABB
Description

Two Stages PE/PP/HDPE/LDPE Film/Bag/Woven Bag/Non Woven/Fiber/Granulating Line/Granulation Plant/Agglomeration Recycling/Compact Pelletizing Machine
The screws and another consisting parts are designed respectively against the features ot different materials such as PP,PE,PS,ABS,PA,PVC,PC,POM, EVA, PET, PMMA etc, they are suitable for the purpose of material color blending.
High torque design enables speed reducer to work stably without noise. Hardness treatment features the screw and barrel with good
tear and wear resistance, good compounding effect and high production.
Air-exhausted system or common vented hole can get rid of water and waste gas out of the material. This enables more stable extrusion and more solid pellet, so the super quality of product is guaranteed

The customer can select a suitable machine among single segment style, and two-segment style according to production requirements. The special design can assure the good compounding effect and more solid pellet. This kind of production line is especially suitable for recycling dirty waste and production of repelletizing.

Gear box: High-torque design; Low-noise; Smooth running
Special barrel design can assure better compounding effect so as to improve the problem of black point and chromatism.
Equipped with a force feeder and hydraulic screen changers according to material's special character,
Vacuum or common gas exhaust system, which fascinates getting rid of damp, waste gas, impurity, can ensure a more stable extrusion and more solid pellets.

Process flow of plastic granulating machine:
Conveyor→ hopper→ Extruding system→ hydraulic screen changer system and mould→ water tank →pelletizer→ vibrating selector→ Air Blower → Storage silo

Detailed description of plastic granulating machine:
1. Conveyor:convey waste plastic material scraps and flakes into extruder hopper.
2. Extruding system:plasticizing material and exhausting gas.
3. Hydraulic screen changer system and mould: filter material impurity,to make production more clean and stable.
4. Water tank:cooling plastic material.
5. Pelletizer:cut plastic to pellets.
6. Vibration selector:remove bad pellet and keep good pellet.
7. Air Blower:convey good pellets into silo.
8: Storage silo:keep pellet

Recycling pelletizing granulating machine models:

Model screw dia. L/D motor power output (kgs/hr)
AF-45 45mm 25-35 7.5kw 30-60
AF-65 65mm 25-35 22kw 60-100
AF-80 80mm 25-35 30kw 100-150
AF-100 100mm 25-35 45kw 120-200
AF-120 120mm 25-35 55kw 200-350
AF-150 150mm 25-35 110kw 300-500

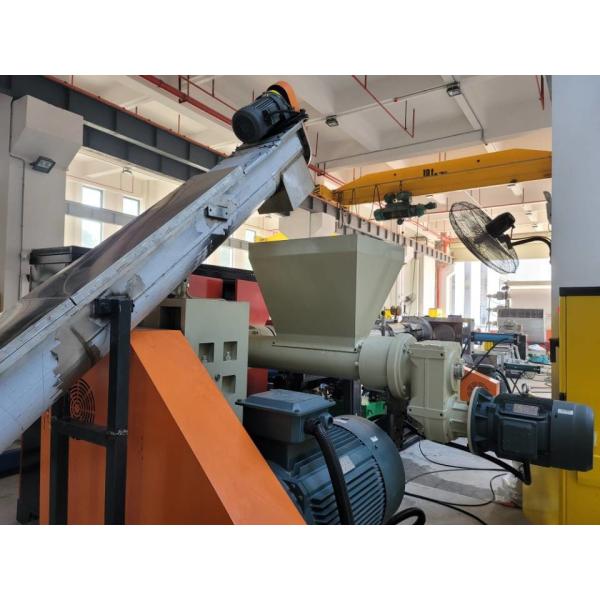

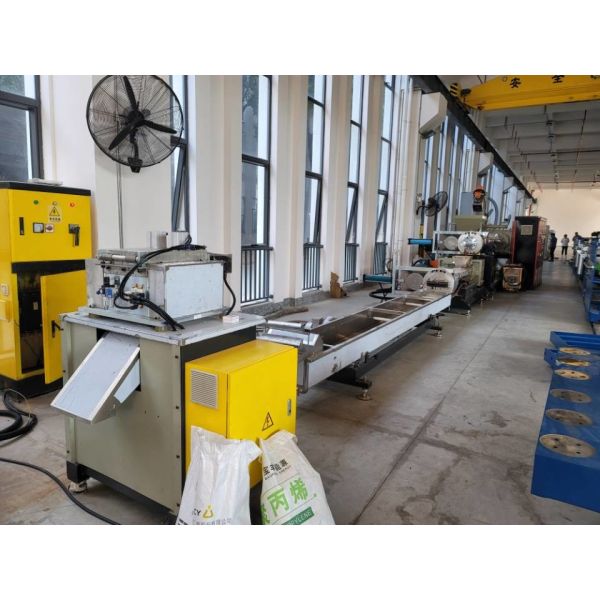

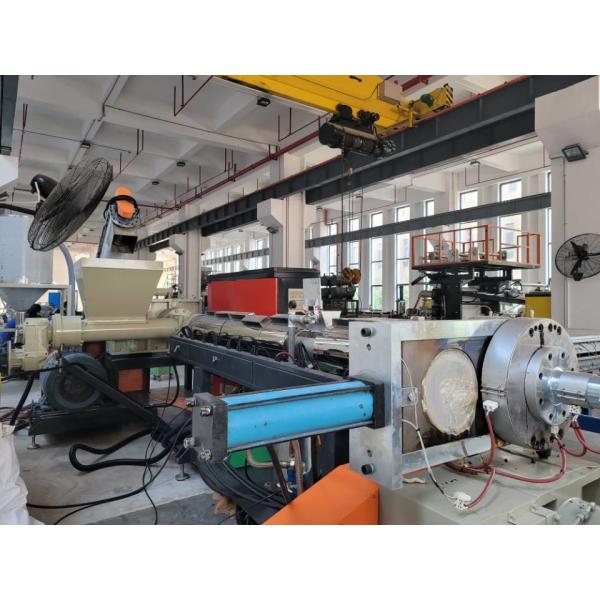

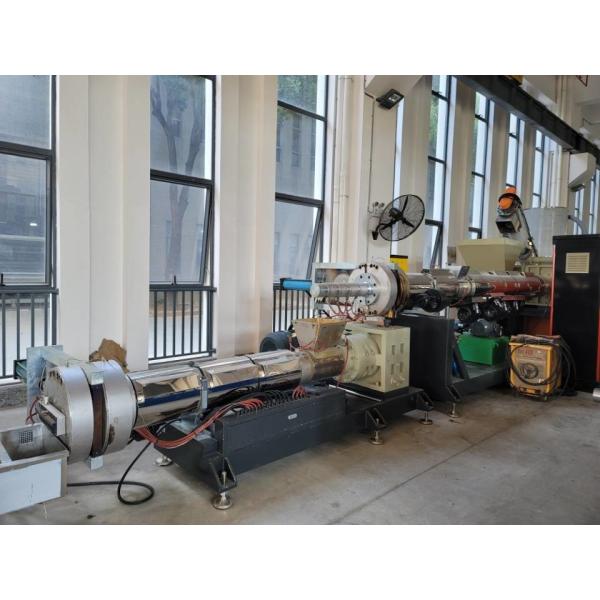

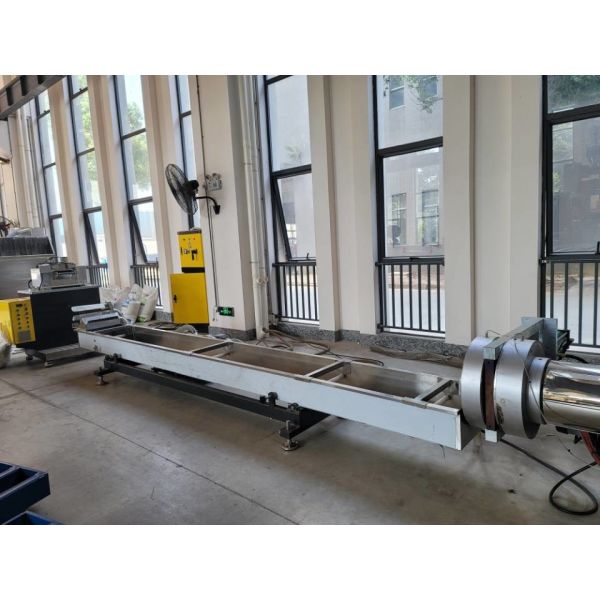

Waste plastic recycling pelletizing granulating machine photo:
Single extruder pelleitzing machine
Water ring die face pelletizing machine

Two stages pelletizing machine

Two Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating LineTwo Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating LineTwo Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating LineTwo Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating LineTwo Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating LineTwo Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating LineTwo Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating Line

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory and giving you the quickest reply in 24 hours.

2. Q: What's your company mainly in?

A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 30 years.

Other machines have included machines in production line, such as luggage edge cutting machine and punching machine.

(We can produce total production line. )

3. Q: What's the material should have for our extruder machine( produce luggage purpose)

A: ABS. PC. PP.PE.PS.PET.HIPS granulates etc plastic material can do.

4. Q: How's your strength of your company?

A: Has a group of senior technical personnels, strong technical force, we have the

whole running system, including design, development, production, installation,service.

One year quality guarantee, life-time service.

5. Q: If your company has passed some certificates?

A: Yes, we have passed CE, ISO.

About Us

Two Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating Line

Two Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating Line

Two Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating Line

Two Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating Line

Two Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating Line

Two Stages PE / PP / HDPE / LDPE Film / Bag / Woven Bag / Non Woven / Fiber Granulating Line

Packaging and shipping

PACKAGING

plastic film + stretch film + wooden case + drying agent.

DELIVERY

About 120 days (all new parts)

SHIPPING

We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.


What is our service system?

PRE-SALE

a. Detailed machine introduction;
b. Suggest suitable turnkey solution as per clients requirements;
c. Provide test production for reference;

IN PRODUCTION

a. Supply layout drawing to clients for preparation;
b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
c. Keep the clients be informed of the production status;

AFTER SALE

a. Send engineers to overseas for installation ,commissioning and training;
b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
c. Offer help if any need from clients like spare parts need etc;
d. Supply necessary technical support at request;


Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
