The main application fields of PVC transparent granule granulation production line are as follows:

Features Specifications:
PVC was once the world's largest general-purpose plastic and is widely used in building materials, industrial products, daily necessities, floor leather, floor tiles, artificial leather, pipes, wires and cables, packaging films, bottles, foaming materials, sealing materials, fibers, etc.

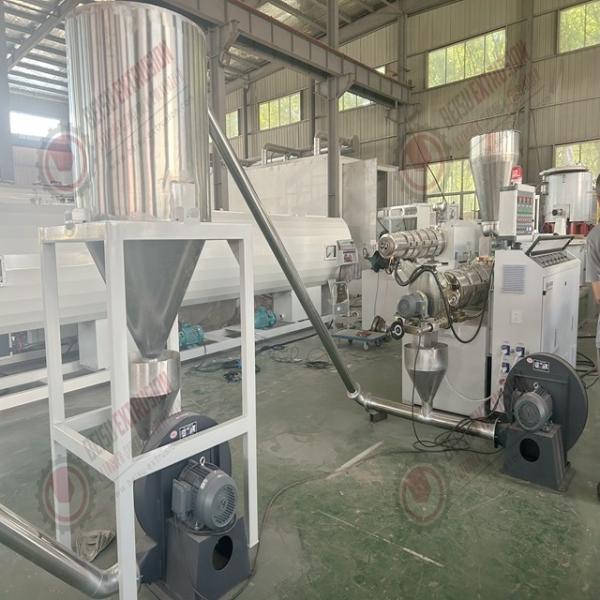

PVC transparent material granulator uses screws of different designs and can be used for granulation of hard PVC, soft PVC and waste PVC recycled materials. The PVC granulation production line consists of a PVC mixer, a forced feeder, an extruder, a drawing die, a cooling motor, a dryer, and a storage hopper. It adopts pneumatic conversion and strong wind blowing. At the same time, the stainless steel storage container can be adjusted, which can run at high speed for a long time and extrude stably at the same time. The output ranges from 100kg/h to 800kg/h.

Structure and characteristics of PVC transparent material granulator:
A1. Weighing: The raw materials are weighed according to the process, and the higher the accuracy, the better.
A2. Mixing: According to the formula of plastic products, the raw materials are mixed evenly.
A3. The raw materials are fed into the extruder barrel through the hopper.
A4. The screw rotates continuously, and the plasticized material is extruded from the twin-screw extruder and cut into pellets by the hot cutter.
A5. After air cooling and molding, the plastic product is completed.
A6. The pellets are sent to the storage bin.

Process flow:
Raw material+ additive → Mixing → Conveying feeding → Force feeding → Conical twin screw extruder → Blowing hot-cutting mould → Cyclone separator → Vibrating screener → Blowing system → Storage hopper → Finished product packing

Technical datas of Plastic PVC pelletizing line:

Features of PVC pellet machine:
A1. PVC pellet making machines are specifically designed to convert PVC resin into small, uniform pellets.
A2. These machines typically consist of a feeding system, extruder, pelletizing system, and cooling system.
A3. The feeding system of a PVC pellet making machine ensures a steady supply of PVC resin into the extruder.
A4. The extruder then melts and homogenizes the PVC resin, creating a molten PVC mixture.
A5. The molten PVC mixture is then forced through a die, which shapes it into cylindrical strands.
A6. These strands are then cut into small, uniform pellets by the pelletizing system of the machine.
A7. The pellets are then cooled down to solidify and stabilize their shape and size.
A8. PVC pellet making machines are widely used in industries such as plastics manufacturing, construction, and packaging.
A9. The pellets produced by these machines can be used for various applications, including injection molding, extrusion, and compounding.
A10. PVC pellet making machines are known for their efficiency, reliability, and ability to produce high-quality pellets consistently.

Zhangjiagang Beisu Machinery Co,Ltd is a certified manufacturer, exporter and supplier of

plastic PVC/PE/PP/PET/EVA/ABS processing machinery. Due to our constant commitment to

extrusion technology, we have emerged as a leading manufacturer of Plastic Extrusion

Machinery for PVC pipes Extrusion Line, HDPE pipes Extrusion Line, PVC compounding

Extruder, PPR Pipes Extrusion Line, PVC profiles Extrusion Line.

Especially High speed Plastic mixer, PVC compounding mixer, SPC mixer.WPC mixer,Plastic Granulating and Pelletizing Line,Plastic pvc pelletizing machine,Soft PVC shoes granulator, PVC compounding pelletizer and Plastic PVC pulverizer, PVC miller,SPC milling machine, WPC pulverizer, SPC pulverizer, PE pulverizer,LDPE pulverizer,PET pulverizer,ABS pulverizer,HDPE pulverizer,Plastic pulverizer, Plastic milling machine, Plastic miller machine,Plastic Crusher,PVC crusher,PE crusher,PP shredder, Plastic PVC Shredder etc for a wide range of extrusion processes.

Installation Instructions

1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.

Our Advantages

1.Reliable

• Most popular design with years' verification.

• Mature supply chain for raw materials with strict quality assurance.

• International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.

2. Economy

• BEISU Stable technology commercialized in China.

• High efficiency mixing performance.

• Cost effective solutions.

After Sales Service

Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
