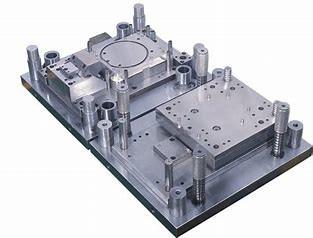

Aluminum Foil Fin Ra3.2 Progressive Press Die For Condenser
Aluminum Foil Fin Ra3.2 Progressive Press Die For Condenser
Specifications
Brand Name :
OEM
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
100-5000;
Price :
Negotiable
Payment Terms :
D/P, D/A, L/C, T/T, Western Union, MoneyGram
Delivery Time :
40days / Negotiable
name :
progressive stamping die
Fin material :
copper, aluminum ,sus, steel
Working principle :
Fin pressing system
Fin Speed :
200-300spm
Type :
progressive
Standard :
DIN GB ISO JIS BA ANSI
Material :
Die plate:SKD11,Stripper plate:P20 or As specified by the customer
Description

Aluminum Foil Fin Progressive Press Die for Condenser

Mould building process

Step Item high speed stamping die
1 Quotation Quote competitive price according to your details (drawing or sample, and related requirements).
2 Order Sign agreement after confirming price
3 Mould design

Design the mould structure drawing according to your product drawing or sample,

then send to you for confirmation.
4 Mould making

After your confirmation of our drawing, we begin to make the moulds,

during manufacturing program,

we send you mould building progress with pictures every week, for you to know our process.
5 First trial

We will make the stamping die first trial on time, then send you video or picture

and trial samples for you to confirm.

Or you can also come to our factory .And we will inspect them and issue the report.
6 Quality confirm

You will confirm our stamping die quality according to sample.

If you need to adjust the product structure, we can help you to change it further.
7 Delivery

Ship the stamping die after it is completely OK, packed by wooden case.

And together with mould, mould detailed drawing, mould label will be also delivered.

1) Equipment: We own Stamping machines, Hydraulic press machines, Auto-Turning machines, CNC-Turning machines, Milling machines, Precision wire cutting machines, more than 160 sets in total;

2) Material: iron, carbon steel, stainless steel, brass, copper, alloy steel, aluminum, cold rolled steel with various plating;

3) Surface treatment: kinds of plating (Zinc, Nikel, Chrome, Tin, Ag); Painting, Powder, Anodizing, E-coating, Silkscreen, Heat treatment, Black oxid;

4) Standard/ specification: OEM service as per customers' requests, within-house tooling design & fabricating;

5) RoHS compliance for export

6) Quality assurance in accordance with ISO9001:2008

7) Concurrent engineering capability on product design

8) Just-in-time manufacturing capability to meet customer's requirement

9) Tailor-made packaging method according to customer's requirement

Product Name power press dies
Material of Die D2, SKH-9, SKD11, A3,SKD61 etc.
Design Software AutoCAD, PRO/E
Die Type Stamping press moulds , stamping die, punching die, sheet metal mould , progressivedie, terminal die,single die, double die or according to your parts
Drawing format igs,stp, prt, asm, pdf, dwg, dxf
Die Life 1,000,000-3,000,000 shots
First Trial 15-25 days after mold drawing confirmed

Services CNC Machining
Sheet Metal Fabrication
Mould
Laser Cutting Service
Steel Bracket
Stamping Parts
Material * Aluminum
* Steel,Stainless Steel
* Copper,Brass
* Die Casting
Finished Sandblasting, Anodizing Color, Blackenning, ZincNickl Plating, Polishing And Brushing,Etc.
Main Equipment CNC Machining Center(Milling), CNC Lathe, Griantry CNC Machining Center,Etc.
CNC Machining Center(Milling), CNC Lathe, Griantry CNC Machining Center,Etc.
Tube Laser Cutting Machine,Flame Cutting Machine,Robert Welding Arm,Etc.
Bending Machine,Stamping Machine,Sand Blasting Machine,Powder Coating Line
Drawing Format Step,Stp,Gis,Cad,Pdf,Dwg,Dxf Etc Or Samples.
Delivery Time 5-30Days Depends On Quantities
QC ROSH, CE, ISO
Tolerance +/-0.02mm ~ +/-0.05mm
Surface Roughness Ra 0.6-3.2

Advantage:

1. In-house mold design and mold manufacturing

2. Precision Single-cavity and multi-cavity molds

3. Design for Manufacturability

4. Fast Turnaround

About Us

Changzhou BaiYang Machinery company was found in 2009. We are a manufacturing company with the design, production, sales capability. We have the plastic injection, metal die-casting, metal stamping machine. Main products includes automotive parts, manual tool components and etc. We are located in Minghuang Town, Wujin District, Changzhou, Jiangsu. The company registered capital is RMB 1 millions. Sales volume in 2014 was RMB25 millions. Total employee amount is 65 including 12 technicians. There are formal production plant with good quality management. ISO9001 certification was authorized in Oct 2013.

Aluminum Foil Fin Ra3.2 Progressive Press Die For Condenser

Factory

Aluminum Foil Fin Ra3.2 Progressive Press Die For Condenser

Certifications

Aluminum Foil Fin Ra3.2 Progressive Press Die For Condenser

FAQ

1. How can I get a quotation?
Please email us and provide 2D or 3D files drawing ,including quantity, material, surface treatment, the quotation will be sent in 24 hours.
2. Do you provide samples ?
Yes, 1~100pcs are available, trial order before mass production are welcomed.
3. Are you trading company or manufacturer ?

We are a specialized manufacturer.
4. Do you support OEM customized service ?
Yes, of course. we can custom make for you based on your drawing.
5. What is your terms of payment ?
T/T
Payment<=1000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before
5. What is your after sale service?
Regardless of the ability of any machine shop, things can sometimes go wrong. If your part isn't to spec, send it back to us. We will fix or remake it for free.
