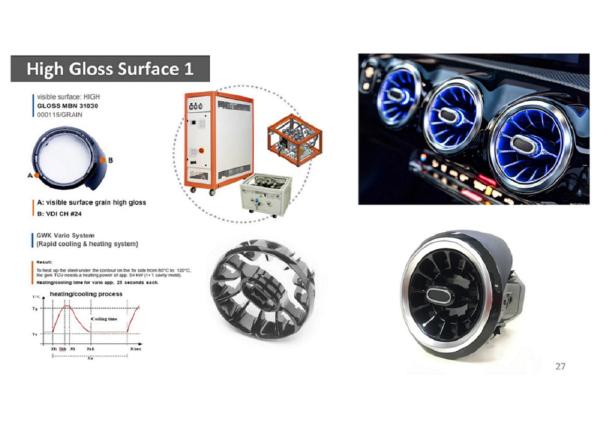

High Glossy tooling & Parts

Plastic Material:PP,ABS,ASA, PA6,PC,PMMA,or other you want

Plastic Surface finish:Polishing finish,Texture Finish,Glossy Finish, VDI-3400,

Drawing format:UG, IGES, STEP,x_t, AutoCAD, Solidworks,Catia, PTC Creo, DWG, PDF, etc..

Certificated:ISO 9001, IATF 16949, ISO 13485,ISO 14001

Range of markets:Automotive, Home Appliance, Medical, Communication, Air conditioner,

Mould Material:2343ADG, 2343, 2344, S136, 2085, M310,M333,W300, 8407, Unimax, NAK80,H13,

Hot runner:Synventive, Incoe, HRS, moldmasters, HUSKY, EWIKON, Guenther, BHT

Injection machine size:45 ton, 80 ton, 120 ton, 160 ton, 220 ton, 300 ton, 400 ton, 650 ton, 850 ton

Cavities:1,2,4,8,16, 32,64

Product Info

Project Procedure

1:Purchasing Order- When we receive order and will get the order in our production system.

2:Pre-design meeting- We will assign a project engineer to follow your project and have the pre-design meeting together with other department.

3:DFM / Moldflow- The project engineer will offer DFM and Moldflow if necessary to customer for checking and approval.

4:2D / 3D- The project engineer will send the mold 2D and 3D layout to customer for approval.

5:Ordering steel- Once get mold drawing approval and deposit payment we will order steel.

6:Machining- The project engineer will provide the timing schedule for reference and every Monday we will send the progress and live machining pictures.

7:Tool assembly-Fitting tool

8: Mould Trial- We will send the sample report, injection parameter to customer.

9: Part Inspection- We will send dimension inspection report and SGS Lab certificate for simple physical test.

10: Tool Correction-Improve the tool according to customer’s feedback.

11: Tool Checking and Packing- We will check the mold item one by one based on our checking list.

12: Tool delivery- We will offer the mold package details and photos, all drawing and components will be inside together with the mold delivery.

13: After-sales Services- We will follow with customer the mold running process when the mold in customer’s shop.

Plastic Injection Mold

Drawing Format: STEP, STP, IGS, STL, CAD, PDF, JPG

Cavity Material: P20, 718, H13, 2316, 2738, S136 etc.

Base Material: LKM, FUTA, HASCO, DME etc.

Surface Treatment: EDM, texture, high gloss polishing, mirror polishing.

Cavity: single cavity, multi cavity, as your required.

Runner: cold runner, hot runner.

Gate Type: side gate, sub gate, pin point gate...

Mold Life: 5000 shots ~ 500,000 shots, according to your requirement.

Equipment: high speed CNC, standard CNC, EDM, wire cutting, WEDM, grinder etc.

Lead Time: 25~60 days, according to the complexity and the items number.

Injection Molding

Molding Type: ordinary molding, overmolding, insert molding, two shot molding.

Production Material: ABS, PC, PP, PS, POM, PVC, PMMA, PBT+GF, PC/ABS,TPU etc.

Production Color: white, black, gray, red, pink, as you required.

Injection Molding Machine: for trial out mold from 50 ton to 1000 ton are available.

Surface Treatment: spray painting, printing, ultrasonic welding, nut insert and assembly.
