32 Cavities 1.2344 HDPE PP Plastic Injection Mold

Specifications

Brand Name :

HOWE/OEM

Model Number :

HW-201113-6

Certification :

ISO9001

Place of Origin :

Dongguan, China

MOQ :

1 set

Price :

2000-10000usd/set

Payment Terms :

T/T

Supply Ability :

40 sets/month

Delivery Time :

25-40days

Packaging Details :

wooden case, or as customer requested

Mould Base :

DME

Mould Cavity :

Multi Cavity

Mould Steel :

P20,NAK80,SKD11,S316,S50C,718H,718, etc

Plastic Material :

PP, PC, PE, PVC, PS, ABS, PTFE

Gate Type :

Sub gate, PinPoint gate

Ejection System :

Stripper plate, Push Bar, Ejection Pin, etc

Mould Runner :

Cold runner

Mould Life :

500,000 shots - 2,000,000 shots

Surface Finish :

Polishing

Cycle Time :

10-300 seconds, according to the products, cavity, and equipment

Machine Type :

150T-1200T

Design Software :

UG, AutoCAD

Description

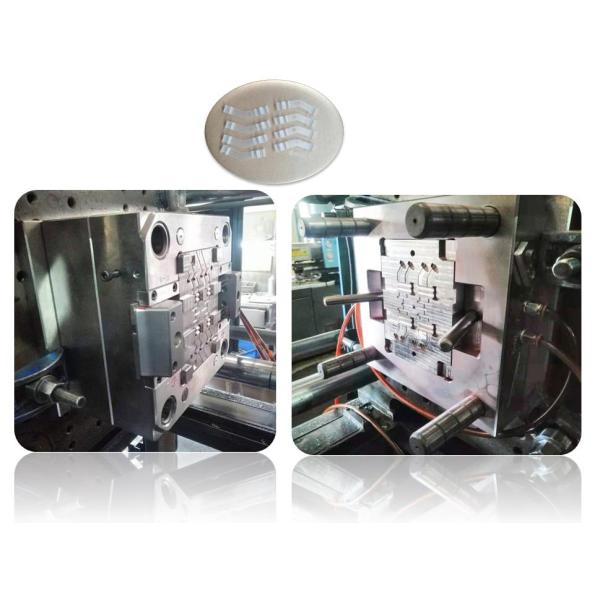

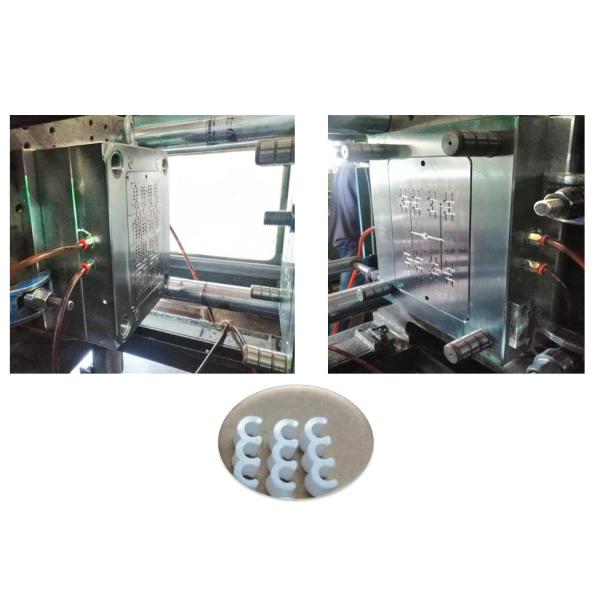

Medical Micro Clip Parts HDPE Plastic Bracket 32 Cavities 1.2344 Injection Mold

Howe mold presentation

As for medical consumables mold, the mould dimension should be controlled in precision. For such products, Howe Mould always uses high-speed milling machines and some other high precision tooling machines to deal with it, the dimension tolerance controlled in 0.01mm.

Mould Information:

Injection Material	ABS, PP, PC, PP+GF, PA, PA+GF, PS, POM, PMMA, PC, etc.
Steel of Cavity&Core	Depends on Products, we help customers to choose a suitable material. Commonly used material are P20,NAK80,718,etc.
Steel of Mold Base	Depends on Products, we will help customers to choose a suitable material. Commonly used material is S50C.
Cavities	Customized
Hardness of Cavity & Core	Pre-Hardness Steel: HRC 32 ~ 36, Heat Treatment Steel: HRC 48~50°
Core pulling or Ejection system	Depends on the Product. Commonly used: Angel pin, oil cylinder, motor, stripping plate, ejector pin, etc.
Surface Finish	Depends on the product. Commonly used: Texture Hatching, EDM Hatching, Polishing, Diamond Polishing, etc.
Mold Life	Depends on the steel hardness and the plastic material
Runner	1. Cold Runner, 2. Hot Runner.
Machine Center	CNC milling machine, CNC Lathing machine, EDM, NC milling & lathing machine, etc.
R & D	We offer customers drawings for products and mold design. Also, we provide extra services such as Reversing Engineering Drawing, etc. We can work with 2D/3D drawings or with provided samples.
Production	Pilot Run Production and Molding Production.

Mold making process:

STEP	DETAIL
1.Enquire /Quote	Discuss with customers after received buyer's samples or drawings.
2.Negotiation	Quality,Technique requests,Mould material,Price,Delivery time,Payment,etc.
3.Place order	Sales contract + proforma invoice.
4.prepaid	Customer T/T deposit to us to start to design mould.
5.Mould design	We will communicate&exchange the opinion with customers during making drawing according to the sample.
6.Design confirmation	Send mould drawings to customers for confirmation.
7.Mould processing	Start to manufacture, we will send photos to show the tooling process.
8.Sample confirm	Send the sample or as negotiation.
9.Mass production	If customers need mass production plastic products, We can also
