Specifications
Brand Name :
OEM/ODM
Model Number :
HW-347
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
2000dollars~10000dollars
Payment Terms :
T/T,Paypal
Supply Ability :
40sets per month
Delivery Time :
25-30days
Packaging Details :
Wood case or carton box
Base material :
718、718H、738、738H、2316、M300、S136、S136H、NAK80、CR12、CR12MOV、SKD11、DF-2、SKS3、D2、SLD、DC53、H13、SKD61、2344、8407、HD、8418、FDAC、M2、SKH-9 、SKH-51、M35、M42、ASP23
Mould Type :
Injection Plastic Mould
Type of plastic mold :
3-plate mold,2-plate mold
Finish :
mirror finish,pitting the word, matte surface, striae
Runner :
Hot/Cold runner
Mould Precision :
+/-0.05mm--+/-0.1mm
Gate Type :
Pin Point Gate
Mould Life :
300k~500k Shots
Mould Cavity :
One cavity, multi-cavity or same different products be made together
Payment :
TT,Paypal
Description

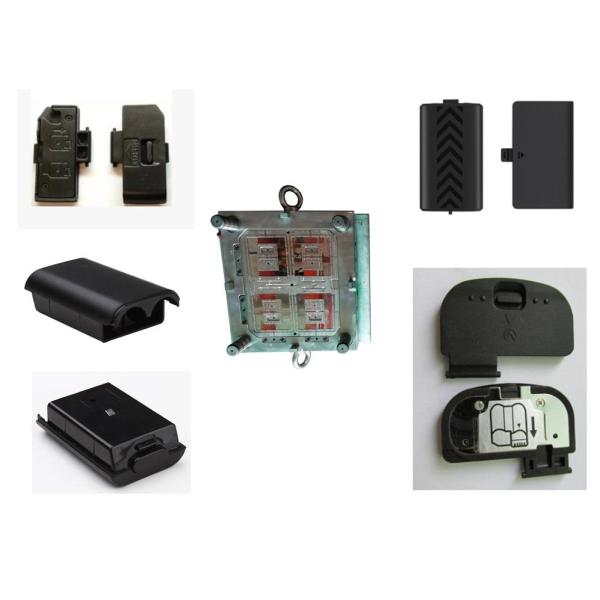

Customize Digital Products Plastic Components with Smooth Surface Injection Mold

High quality pp material, excellent toughness, not easy to break.We are a professional manufacturer for OEM and ODM--plastic injection molding products.

0.06mm Precision Pin Point Gate Plastic Injection Mold


Mould Preform Weight Refer

Type Height(mm) Width(mm) Thickness(mm) Weight(kg)
6 Cav 710 290 490 760
8 Cav 540 400 490 810
12 Cav 750 360 490 1020
16 Cav 880 360 510 1240
24 Cav 940 505 510 1880
32 Cav 910 660 510 2360
48 Cav 1110 610 555 2930
64 Cav 1355 610 555 3560
72 Cav 1140 880 555 4320
Above mentioned data is based on 16gr preform with PCO neck.

28mm Neck Finish 20gr Water Bottle 21gr CSD Bottle 48gr CSD Bottle
12 Cavities Approx.2200pcs/hr Approx.2100pcs/hr Approx.1200pcs/hr
16 Cavities Approx.2700pcs/hr Approx.2800pcs/hr Approx.1500pcs/hr
24 Cavities Approx.3700pcs/hr Approx.3600pcs/hr Approx.2400pcs/hr
32 Cavities Approx.5000pcs/hr Approx.4800pcs/hr Approx.3000pcs/hr
48 Cavities Approx.7200pcs/hr Approx.6700pcs/hr Approx.4300pcs/hr
48 Cavities with robot arm cooling system Approx.10000pcs/hr Approx.9000pcs/hr Approx.7000pcs/hr


Company Profile

0.06mm Precision Pin Point Gate Plastic Injection Mold

Workshop show

0.06mm Precision Pin Point Gate Plastic Injection Mold

0.06mm Precision Pin Point Gate Plastic Injection Mold

0.06mm Precision Pin Point Gate Plastic Injection Mold

0.06mm Precision Pin Point Gate Plastic Injection Mold

Our Customers

0.06mm Precision Pin Point Gate Plastic Injection Mold

0.06mm Precision Pin Point Gate Plastic Injection Mold

0.06mm Precision Pin Point Gate Plastic Injection Mold

0.06mm Precision Pin Point Gate Plastic Injection Mold

Packaging

0.06mm Precision Pin Point Gate Plastic Injection Mold

Shipment & Payment
0.06mm Precision Pin Point Gate Plastic Injection Mold
FAQ About Plastic injection mold
Q1: What kind of molds do you make? Plastic injection mold, Compression mold or something else?
A1: We are mainly making plastic injection mold and die-casting mold.
Sometimes we also make rubber molds according to our customer’s requirements.
Q2: Do you build hot runner plastic moulds?
A2: Yes. We build hot runner Plastic Moulds and specialized in many different systems, such as DME, Master, Mastip, Hasco, Yudo, Incoe, Husky, etc.
The manifold recommended for your tool is selected to meet your individual needs.
Q3: What types of files do you accept (drawings)?
A3: With our CAD systems we can accept the following files:STP, IGS, DXF, DWG, Cad Key PPT, STL, X_T, CATIA, UG files, etc.
Q4: What kind of steel do you use for plastic mouldings?
A4: We can use any type of steel appointed by customer or popular in the market.
Such as P20, 718, 8407, NAK80, H13, S136, DIN 1.2738, DIN 1.2344, etc.
Q5: Can you provide the steel certificate and heat-treatment certificate?
A5: Yes, We can provide steel certificate or hardness certificate to prove.
Q6: Can you make the texture/text/heat-treatment/nitriding for the injection mold plastic?
A6: Yes, As a plastic mold factory, we have long-term cooperated subsidiary factories that do those processes.
They are professional and well reputed in our local market.
Q7: How long is the lead-time for a plastic injection mold?
A7: It all depends on the mold’s size and complexity. Normally, the lead time is 25—45days.
If the Plastic Mouldings are very simple and not big size, we can work out within 15 days.
Q8: Do you make spare parts for your customer?
A8: Yes, we will provide spare parts for the mold if needed or required by clients.
Q9: How do you pack the plastic moulds?
A9: We pack the plastic moulds with a wooden box.
There are the main 3 operation steps.
First Step: We daub some rust preventive oil on the mold.
Second step: We pack the mold with thin plastic film to avoid moisture.
Third step: We put this plastic film packed mold in a wooden box, and fix it to avoid any movement.
