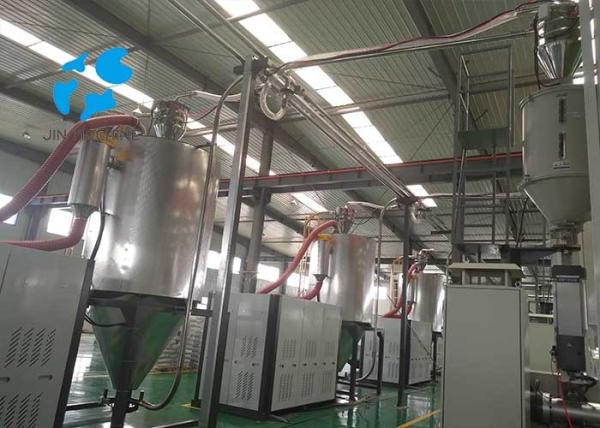

Working principle

In the drying process, hot ait with constant temperature is blown by a blower into a hopper to dry the materials.

Moisture will be separated out and taken away by hot air, thus to gain a satisfied drying effect.

Air blown out of blower became high temperature drying air after being heated. Through screen protector and

hole sceen, hot air can be equably dispersed in the material of storage tank. Hot air recycler is optional so the

air enter drying blower after being filtered to form a closed loop circle and save electricity.

Standard configuration

1. All material contact parts are made of stainless steel to eliminate material contamination.

2. Stainless steel mirror surface hull features with pleasant appearance and no color-changing for a long-term use.

3. Hinged hopper construction for easy opening and easy cleaning.

4. Low noise blower.

5. Both material tank and base installed with material-viewing window.

6. Curve heating cylinder designed to avoid the burning caused by powder pile.

7. Installed with proportional deviation display thermostat,to control temperature accurately.

8. Adopts heat-insulated blower to prolong blower lifespan.

9. Overheat and overload protector are standard equipment.

Accessary optional

Hot air recyclers

Work with hopper dryer to make the hot air form a semi-hermetic circulated loop and has feature as below:

• Hot air recycling and circulating so avoid indoor temperature rise up.
• Keep air in factory clean and insure good product quality.
• Heating by fast hot air circulation can low down energy consumption to 40%.

Material storage tank
Customized tank available for all sized of stainless steel hopper.

Dust collector
Additional dust collector installed to avoid plastic particles splashing and provide a clean environment.

Magnetic separator
Inserts at the lower cone bottom, filter out iron mixed with raw materials, optional model available.

Suction box
For standing type hopper dryer, easy for material suction and discharge.

Support frame
Customized a variety of special structure frame for hopper dryer.
