Specifications
Brand Name :
Jin Machine
Model Number :
PET-1500
Certification :
CE Certificate
Place of Origin :
Jiangsu China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
4 sets 3 month
Delivery Time :
45 work days
Packaging Details :
Film package, 4 x 40 GP containers
Application :
Plastic Recycling Machine, Post consumer PET bottle / flakes
Material :
304 Stainless Steel
Color :
Grey and white
Capacity :
1500KG/H
Name :
PET Washing line
Warranty :
12 Months
Description

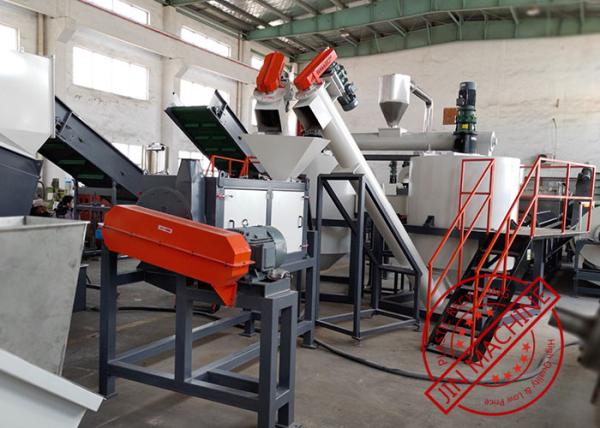

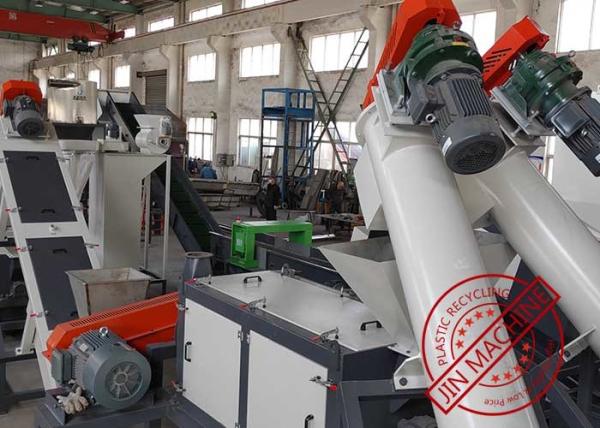

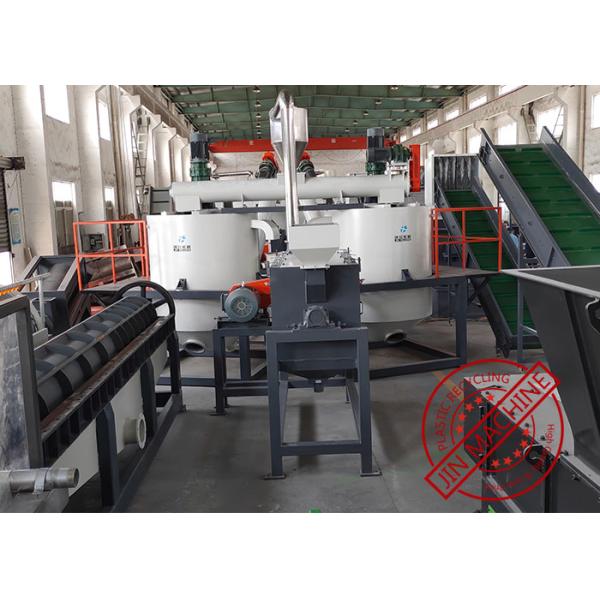

1500kg/H Pet Plastic Flakes Washing Machine Pet Bottle Recycling Line

PET Plastic Flakes Washing Machine PET Bottle Recycling Line

Waste plastic Pet bottle crushing washing recycling machine/line/plant/equipment is widely used to treat waste plastic, such as PET/PVC/ABS bottle, water bottles, cola bottle and PET plastic scrap broken into flakes. Pet bottle recycling line is a crushing, washing, drying line. PET flakes are mainly used for the fiber production PET strap, PET sheet, and other related PET products.With advanced international industry concepts and technologies to meet waste plastic recycling at home or abroad. this line can be displayed "L" or "U" .

It can equipped with the Europe automatic material sorting system and color sorting system.

Features:
1- Labor saving. The bale opening and feeding system we provide will equally feed the material.
2- Can use the manually sorting system to selecting out different color bottles and non-PET material
3- Metal detector is optional for you which used to take out any kind of metal from the PET bottles
4- Specially designed PET bottle granulator can easily get high output and with water doing wet griding can reduce wear of blades.
5- High speed dewatering machine and drying system will insure the final PET flakes moisture <1%
6- The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content

Component List:

SN Item name Function
1 Conveyor belt Loading PET bottle into Bale opener machine
2 Bale opener machine Opening the bales
3 Conveyor belt Loading bottle into trommel
4 Trommel machine Loosen the bottles, remove the sand/rock/stone from bottles
5 Conveyor belt Loading bottle into label remover machine
6 Label remover machine Remove the label from bottles
7 Sorting table Manual sorting out different color and non-PET bottles, remove remain labels
8 Conveyor belt loading bottle into crusher
9 Crusher machine Crushing PET bottle into flakes
10 Screw loader Loading PET flakes into floating washing tank
11 Floaitng washing tank Washing flakes remove caps/rings and prevent dirty goes into hot washing tank
12 Screw loader Loading material
13 1st High Speed Friction Dewatering washer High speed washing material
14 Hot washing tank Washing off glue/oil and dirty with hot water and chemical
15 Screw loader Loading material
16 2nd High Speed Friction Dewatering washer High speed washing flakes
17 2nd Floating washing tank Washing flakes remove caps/rings
18 SLU-380 Screw Loader Loading material
19 3rd Floating washing tank Washing flakes remove caps/rings
20 SLU-380 Screw Loader Loading material
21 Horizontal Dewatering Machine Take out dirty and remove water
22 Hot air dryer Drying the flakes
23 Zig-zag air classifier Remove dust/fines/labels
24 Silo Storage material

FAQ

1- How to choose proper products you want?
• Please tell us as detail as what you want
• What's your raw material it is?
• What's the final products you want to produce?
• What's capacity you want it performance?
2- How to control the quality?
• We have technical, engineer team design the sample machinery before enter into market
• Production QC team ensure the machine manufacturing quality
• We will running every machine after finished before shipment
• Optional choose by client running the machinery by material
• We always up date the new technology to every customer.
