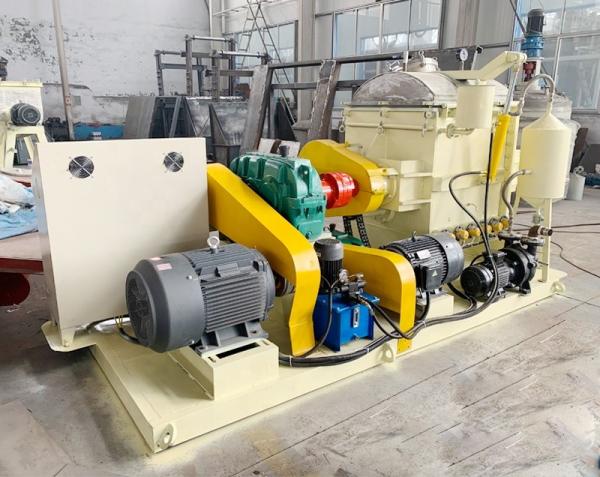

37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
Specifications
Mixer Type :
Sigma / Z blade
Barrel Volume (L) :
500 L
Material Processed :
Chemicals
Max. Loading Volume (L) :
300 L
Range of Spindle Speed(r.p.m) :
21 - 37 r.p.m
Max. Loading Capacity :
300kg
Weight (KG) :
5500 KG
Material :
SUS304, SUS304L, SUS316, SUS316L, SS304, SS316L, Carbon steel
Condition :
New
Product Type :
Adhesive, Butyl Rubber etc.
Application :
Viscous Fluid
Additional Capabilities :
Heating
Place of Origin :
Shandong, China
Brand Name :
SANWEI
Voltage :
Customer Required
Dimension(L*W*H) :
depend on the model
Power (kW) :
37 kW
Warranty :
1 Year
Key Selling Points :
Long Service Life
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, other
Showroom Location :
None
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Product name :
sigma kneader
Function :
Kneading mixing
Machine Type :
Z blade mixer
Keyword :
Sigma mixer machine
Application scope :
High Viscosity Product
Stirrer type :
Sigma / Z blade
Type :
Ordinar type or Vacuum type
Heating method :
electric heating, steam heating, oil circulation heating
Discharge :
screw extruding, hydraulic tilt, bottom valve
After-sales Service Provided :
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
None
Certification :
CE ISO
Packaging Details :
Suitable Delivery And Protect The Machine
Port :
QINGDAO
Supply Ability :
100 Set/Sets per Quarter
Price :
$3,850.00/sets 1-4 sets
Description
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
Product Description

Stainless steel Z blade mixer sigma blade kneader mixer machine screw extruder kneading mixing machine

Sigma kneader is widely used in high viscosity product, such as sealant, silicon rubber, glue, adhesive, dye, BMC, CMC etc.
Main Features:
1. Material: SS304 , SS316L, carbon steel
2. Structure: single layer, double layer with jacket to heating or cooling
3. Heating method: electric heating, circulation oil heating, steam heating
4. Type: normal type , vacuum type.
5. Discharge way: hydraulic tilt , screw extruding , bottom valve.
6. We support customization.
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
Model
Main Motor Power
Blade Rotate Speed (optional inverter regulation speed)
Heating Power （optional）
Discharge Method （optional）
Vacuum Pump Power (optional vacuum)
5L
0.75KW
33/23 rpm
1KW
manual tilt
2.2KW
10L
1.1KW
33/23 rpm
2KW
manual tilt
2.2KW
100L
4KW
35/22 rpm
12KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
200L
7.5KW
35/22 rpm
18KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
300L
15KW
37/21 rpm
24KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
500L
22KW
35/25 rpm
36KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
1000L
37KW
30/16 rpm
36KW
hydraulic tilt
screw extruding
bottom valve
4KW
1500L
45KW
30/16 rpm
45KW
hydraulic tilt
screw extruding
bottom valve
5.5KW
2000L
55KW
30/16 rpm
45KW
hydraulic tilt
screw extruding
bottom valve
5.5KW
Material: SS304, SS316L, Carbon Steel
Type: single layer or with jacket to heating or cooling
Open the cover: by manual or hydraulic opening
Discharge: hydraulic tilt, screw extruding, bottom valve
Vacuum can be selected
The above data is just for your reference, we support customization.
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
Silicone sealant production line, we have all these machines. If you are interested in any items, please feel free to contact us, thanks.
Details Images
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
hard tooth surface reducer
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
electric heating & vacuum
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
open the cover by hydraulic
37 kW Motor Drive Stainless Steel Sigma Blade Kneader Mixer for High Viscosity Product
discharge by screw extruding
