500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
Specifications
Mixer Type :
Agitator
Barrel Volume (L) :
500
Material Processed :
Chemicals
Max. Loading Volume (L) :
300 L
Range of Spindle Speed(r.p.m) :
1 - 20 r.p.m
Max. Loading Capacity :
300L
Weight (KG) :
1800 KG
Material :
SUS304, SUS304L
Condition :
New
Product Type :
Paste
Application :
Viscous Fluid
Additional Capabilities :
Milling
Place of Origin :
Shandong, China
Brand Name :
SANWEI
Voltage :
Customer Required
Dimension(L*W*H) :
according to the prduct's model
Power (kW) :
7.5 kW
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location :
None
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Gear, Gearbox, Pump, Bearing, Engine
Product name :
Double shaft mixer
Function :
Mixer Blender
Usage :
Mixing Paste Proucts
Machine Type :
Double shaft mixing machine
Application scope :
High Viscosity Product
Keyword :
Double shaft agitator
Mixing type :
Low speed & High speed
Speed :
1~20rpm, 1~1440rpm
Advantage :
The frame agitator with scrape the wall
Packaging Details :
Suitable Delivery And Protect The Machine
Port :
QINGDAO
Supply Ability :
100 Set/Sets per Quarter
Price :
$1,150.00 - $5,800.00/sets
Description
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
Double Shaft High Speed Agitator Mixer Dispersing Mixing Machine For Chemical Industry
Product Description
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing

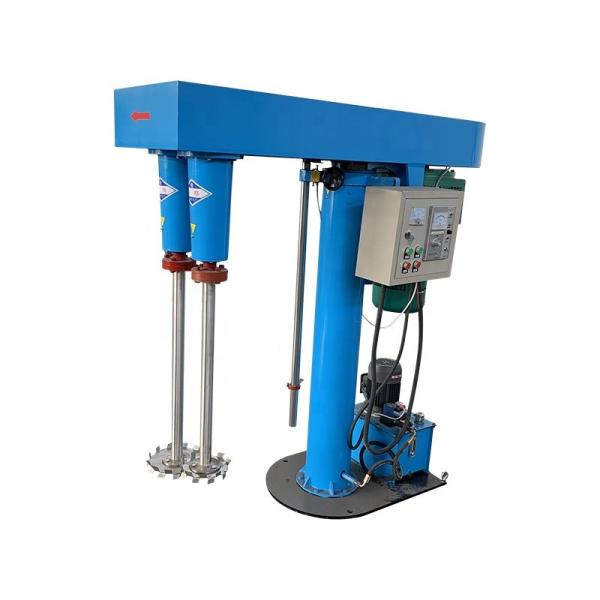

Double Shaft Agitator Mixer
1. capacity: 300kg/batch
2. the motor power of dispersing agitator: 22KW
3. the motor power of frame agitator: 7.5KW, The frame agitator with scrape the wall, the material of scrape is PTFE
4. lifting form: hydraulic lift
5. contact material parts: SS304, others: carbon steel painted with antirust paint
6. the volume of tank: 500L
7. material: SS304, thickness: 6mm
We still have more models
We support OEM
Double shaft mixer
dispersion agitator
22kw, speed: 0~1440rpm, with frequency converter
frame agitator
7.5KW, speed: 0~20rpm, with frequency converter. The frame agitator with scrape the wall, the material of scrape is PTFE
lifting form
hydraulic lift
contact material parts
SS304
the volume of tank
500L, material: SS304, thickness: 6mm
the size of tank
diameter: 900mm, height: 900mm
We support OEM
Details Images
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
Lifting method: hydraulic lift
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
Agitator: frame & dispersion disc
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
The frame agitator with scrape the wall
500L Barrel Volume Double Shaft High Speed Agitator Mixer for Chemical Processing
With movable stainless steel tank
