300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
Specifications
Mixer Type :
Sigma / Z blade
Barrel Volume (L) :
500 L
Material Processed :
Chemicals
Max. Loading Volume (L) :
300 L
Range of Spindle Speed(r.p.m) :
21 - 37 r.p.m
Max. Loading Capacity :
300kg
Weight (KG) :
4000 KG
Material :
SUS304, SUS304L, SUS316, SUS316L, SS304 ; SS316 ; Carbon steel
Condition :
New
Product Type :
High viscosity material
Application :
Viscous Fluid
Additional Capabilities :
Heating
Place of Origin :
Shandong, China
Brand Name :
SANWEI
Voltage :
Customer Required
Dimension(L*W*H) :
According to the prduct's model
Power (kW) :
22 kW
Warranty :
1 Year
Key Selling Points :
Long Service Life
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location :
None
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Gear, Gearbox, Pump, PLC, Bearing, Engine
Product name :
kneader mixer
Machine Type :
z blade sigma mixer
Usage :
used for high viscosity product
Keyword :
blender and kneader atma
Function :
sigma mixer
Stirrer type :
z blade
Type :
kneader mixer machine
Capacity :
5~2000L kneader mixer
Packaging Details :
Suitable Delivery And Protect The Machine
Port :
QINGDAO
Supply Ability :
100 Set/Sets per Quarter
Price :
$2,580.00/sets >=1 sets
Description
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
Industrial blender and kneader atma aluminum paste production line z blade sigma kneader mixer mixing machine

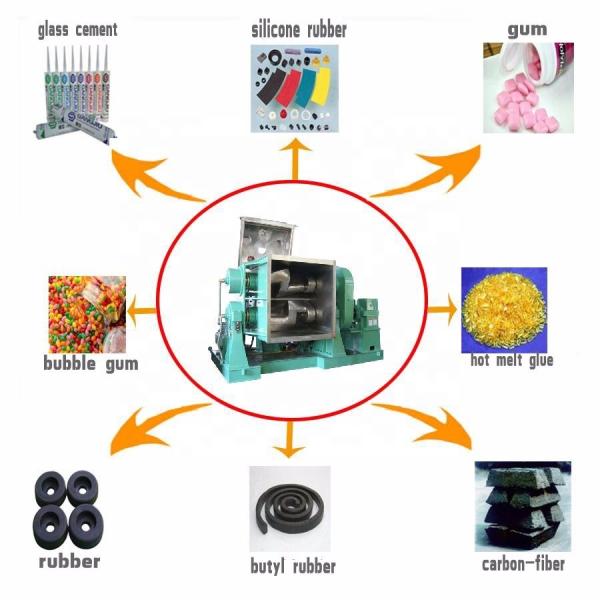

Kneader mixer is widely used in high viscosity product, such as sealant, silicon rubber, glue, adhesive, dye, BMC, CMC etc.
Main Features:
1. Material: SS304 , SS316 or carbon steel can be choose
2. Type: normal type , vacuum type.
3. Function: can be cooling or heating ( electric heating, circulation oil heating or steam heating ).
4. Discharge way: hydraulic tilt , screw extruding , bottom valve.
We support customization.
Product Description
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste


500L Hydraulic Tilt Discharge Kneader Mixer
1. Volume: 500L
2. Material: SS304, jacket: carbon steel
3. Type: electric heating
4. Open the cover by hydraulic power station
5. Discharge by hydraulic tilt
6. With control cabinet
7. We support customization
We still have more models
(100l, 200l, 300l, 1000l, 1500l, 2000l etc.)
Model
Main Motor Power
Blade Rotate Speed (optional inverter regulation speed)
Heating Power （optional）
Discharge Method （optional）
Vacuum Pump Power (optional vacuum)
5L
0.75KW
33/23 rpm
1KW
manual tilt
2.2KW
10L
1.1KW
33/23 rpm
2KW
manual tilt
2.2KW
100L
4KW
35/22 rpm
12KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
200L
7.5KW
35/22 rpm
18KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
300L
15KW
37/21 rpm
24KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
500L
22KW
35/25 rpm
36KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
1000L
37KW
30/16 rpm
36KW
hydraulic tilt
screw extruding
bottom valve
4KW
1500L
45KW
30/16 rpm
45KW
hydraulic tilt
screw extruding
bottom valve
5.5KW
2000L
55KW
30/16 rpm
45KW
hydraulic tilt
screw extruding
bottom valve
5.5KW
Material: SS304, SS316L, Carbon Steel
Type: single layer or with jacket
Open the cover: by manual or hydraulic opening
Vacuum can be selected
The above data is just for your reference, we support customization.
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
Details Images
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste

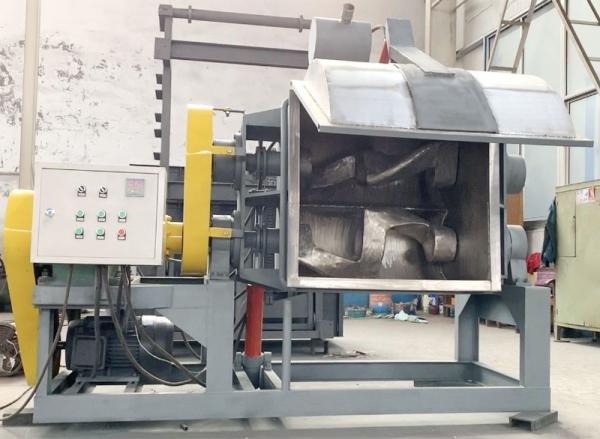

front
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste

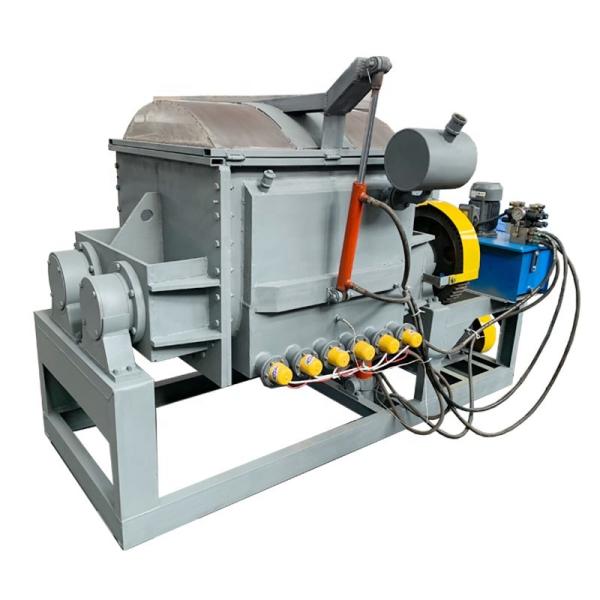

behind
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste
hydraulic open the cover, hydraulic tilt discharge
300L Max. Loading Volume Z Blade Sigma Kneader Mixing Machine for Atma Aluminum Paste

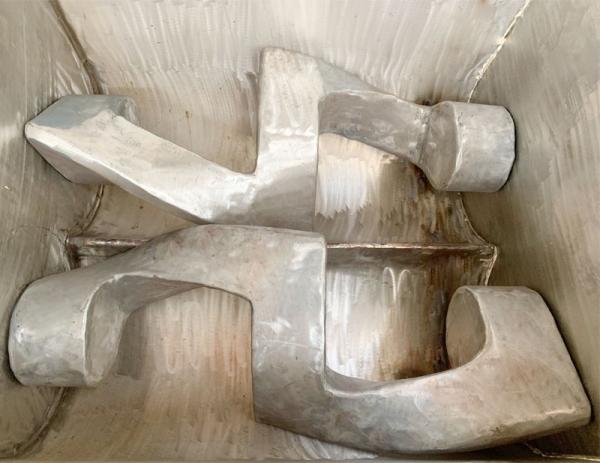

sigma agitator
