Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Specifications
Place of Origin :
Shandong, China
Brand Name :
SANWEI
Certification :
CE ISO
Packaging Details :
Suitable Delivery And Protect The Machine
Supply Ability :
100 Set/Sets per Quarter
Price :
$5,850.00/sets 1-4 sets
Mixer Type :
Sigma / Z blade
Barrel Volume (L) :
500 L
Material Processed :
Chemicals
Max. Loading Volume (L) :
300 L
Range of Spindle Speed(r.p.m) :
21 - 37 r.p.m
Max. Loading Capacity :
300kg
Weight (KG) :
4000 KG
Material :
SUS304, SUS304L, SUS316, SUS316L, SS304 ; SS316L ; Carbon steel
Condition :
New
Product Type :
High viscosity material
Application :
Viscous Fluid
Additional Capabilities :
Heating
Voltage :
Customer Required
Dimension(L*W*H) :
3*2.6*2.8m
Power (kW) :
37 kW
Warranty :
1 Year
Key Selling Points :
Long Service Life
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Co
Showroom Location :
None
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, reducer
Product name :
sigma kneader
Capacity :
5~2000L
Keyword :
sigma mixer
Machine Type :
kneader with screw extruder
Usage :
used for high viscosity product
Stirrer type :
z shape blade
Type :
screw extruder kneader
Discharge :
Screw Extruding
Heating method :
electric heating, steam heating, oil circulation heating
After-sales Service Provided :
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
None
Port :
QINGDAO
Description
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Product Description

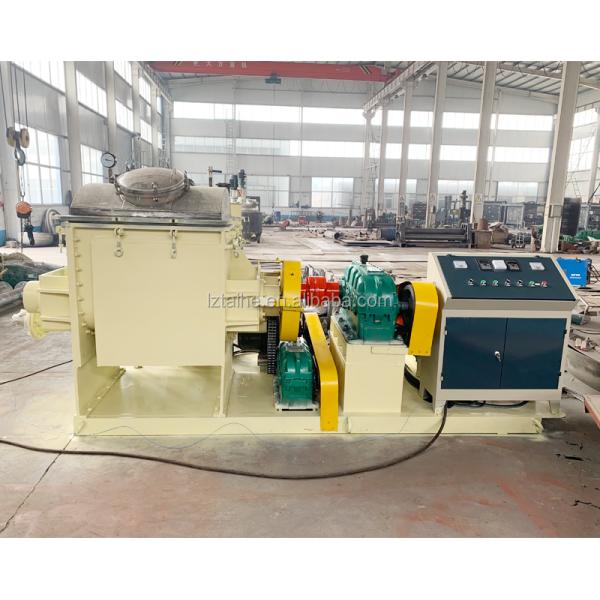

Horizontal Z-shape sigma kneader mixer machine with screw extruder
Kneader machine is widely used in high viscosity product, such as sealant, silicon rubber, glue, adhesive, dye, BMC, CMC etc.
Main Features:
1. Material: SS304 , SS316L, carbon steel
2. Structure: single layer, double layer with jacket to heating or cooling
3. Heating method: electric heating, circulation oil heating, steam heating
4. Type: normal type , vacuum type.
5. Discharge way: hydraulic tilt , screw extruding , bottom valve.
6. We support customization.
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Model
Main Motor Power
Blade Rotate Speed (optional inverter regulation speed)
Heating Power (optional)
Discharge Method (optional)
Vacuum Pump Power (optional vacuum)
5L
0.75KW
33/23 rpm
1KW
manual tilt
2.2KW
10L
1.1KW
33/23 rpm
2KW
manual tilt
2.2KW
100L
4KW
35/22 rpm
12KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
200L
7.5KW
35/22 rpm
18KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
300L
15KW
37/21 rpm
24KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
500L
22KW
35/25 rpm
36KW
hydraulic tilt
screw extruding
bottom valve
2.2KW
1000L
37KW
30/16 rpm
36KW
hydraulic tilt
screw extruding
bottom valve
4KW
1500L
45KW
30/16 rpm
45KW
hydraulic tilt
screw extruding
bottom valve
5.5KW
2000L
55KW
30/16 rpm
45KW
hydraulic tilt
screw extruding
bottom valve
5.5KW
Material: SS304, SS316L, Carbon Steel
Type: single layer or with jacket
Open the cover: by manual or hydraulic opening
Discharge: hydraulic tilt, screw extruding, bottom valve
Vacuum can be selected
The above data is just for your reference, we support customization.
Viscous Fluid Horizontal Z-Shape Sigma Kneader Mixer Machine With Screw Extruder
Silicone sealant production line, we have all these machines. If you are interested in any items, please feel free to contact us, thanks.
