500l 1000l Stainless Steel Mixing Tank Batch Polymerization Chemical Reactor Tank

Specifications

Place of Origin :

Shandong, China

Brand Name :

SANWEI

Certification :

CE ISO

Packaging Details :

Suitable Delivery And Protect The Machine

Supply Ability :

100 Set/Sets per Quarter

Price :

$3,390.00/sets >=1 sets

Capacity :

500L

Automatic Grade :

Automatic

Type :

Tank Reactor

Condition :

New

Video outgoing-inspection :

Provided

Machinery Test Report :

Provided

Marketing Type :

Ordinary Product

Warranty of core components :

1 Year

Core Components :

PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump

Voltage :

Customer Required

Power :

2.2KW

Warranty :

1 Year

Key Selling Points :

Long Service Life

Applicable Industries :

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location :

None

After-sales Service Provided :

Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Material :

SS304 ; SS316 ; Carbon steel ; Lined PTFE

Working pressure :

Ordinary pressure

Product name :

Reactor

Machine type :

reactor tank

Heating method :

electric heating

Mixing Type :

anchor, frame, paddle etc.

Application :

reactor for chemical industry

Sealing Type :

mechanial seal

Product type :

stainless steel reactor

After Warranty Service :

Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location :

None

Port :

QINGDAO

Description

500l 1000l stainless steel mixing tank batch polymerization chemical reactor tank price

1. Volume: 50 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, double layer (jacketed type), external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.

Details Images

upper cover

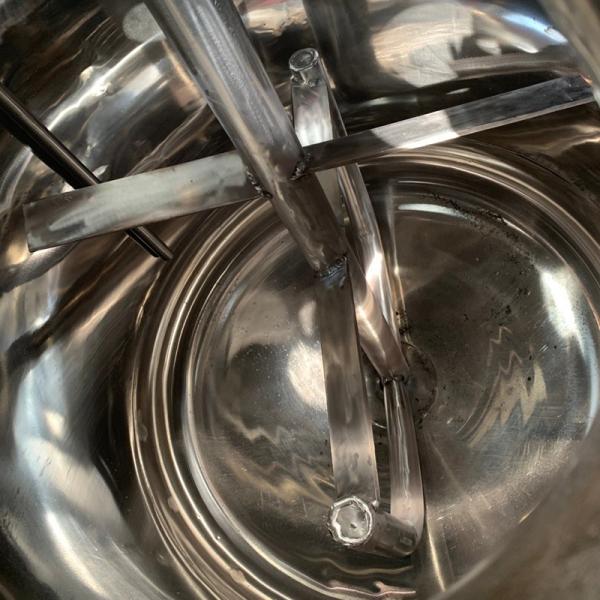

anchor agitator

More Type

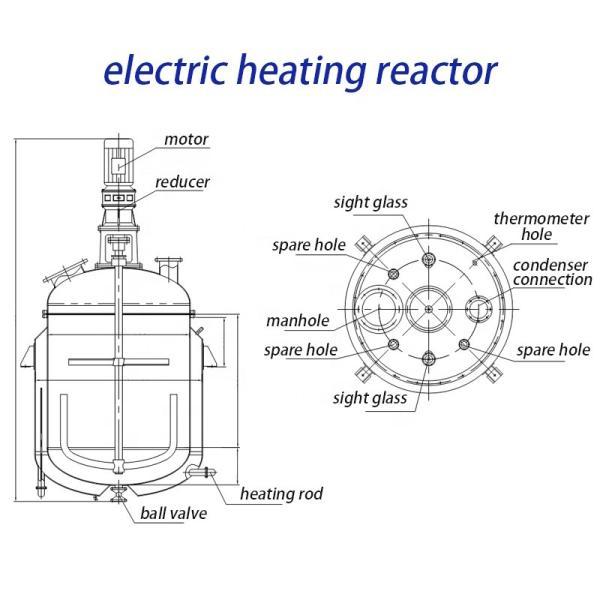

Electric Heating Reactor

Steam Heating Reactor

Limpet Coil Reactor

Multifunctional Reactor

Model

50L

100L

300L

500L

1000L

2000L

3000L

5000L

Mixing Motor Power

0.75KW

1.1KW

2.2KW

4KW

5.5KW

7.5KW

15-18.5KW

Heating Motor Power

8KW

12KW

24KW

36KW

48KW

60KW

75KW

90KW

Inner Plate Thickness

5mm

6mm

8mm

Jacket Plate Thickness

5mm

6mm

8mm

Material

SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement.

Heating Type

electric heating, steam heating, oil circulation heating etc.

Agitator

anchor, paddle, frame etc.

Sealing Method

packing seal or mechanical seal (vacuum)

Model

We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)

Remarks

We support OEM
