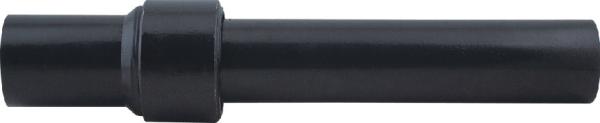

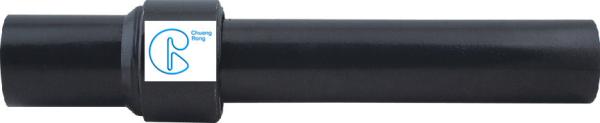

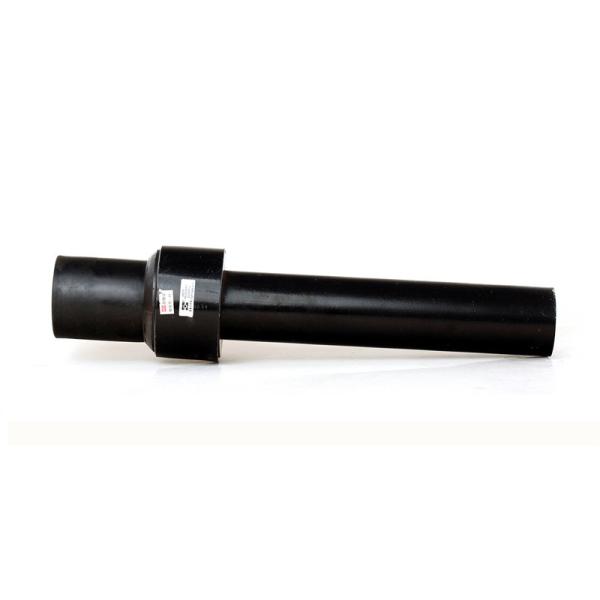

Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16
Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16
Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16
Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16
Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16
Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16
Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16
Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16
Specifications
Brand Name :
CR
Model Number :
25mm*3/4"-315mm
Certification :
ISO9001-2008, CE,BV,SGS,Factory test
Place of Origin :
Sichuan, China
MOQ :
1 - 499 Pieces
Price :
$5.96~$ $5.96~$178.04 /PCS
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
100000 Ton/Tons per Year
Delivery Time :
40GP during 3~4 weeks or as required
Packaging Details :
Carton
Product name :
PE/steel transition for Gas supply PN16 HDPE Electrofusion Fittings
Standard :
EN 1555-3:2010
Application :
Gas,Water,Oil etc
Material :
PE100 Virgin raw material and Steel
Corlor :
Black
Port :
China main port
Description

PE/steel transition for Gas supply PN16 HDPE Electrofusion Fittings

Production Description of PE/steel transition Fittings for Gas supply

Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together: After

electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse

HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Outstanding stable performance of CHUANGRONG Electrofusion HDPE Fittings

CHUANGRONG's PE (polyethylene) pipeline system meets and exceeds international and European standa

-rds, and provides customers with the most cost-effective solutions with reliable quality and reasonable prices:

HDPE products have been exported to more than 60 countries around the world, and have been satisfied with

customers. The service life is at least 50 years. Not just Reliable in any case, but they also contribute to the su

stainable development of the world. One of the lowest carbon footprints compared to metal or other plastic sys

-tems.

1.Safety and Reliability

Life span of at least 50 years

Completely maintenance-free

In all weather conditions

Excellent chemical resistance

Good impact and abrasion resistance

2.Cost-effective

Highest cost performance

Compared with traditional steel pipes, it is light and easy for workers to install and repair(Speed,Simplicity/Time

and labor cost saving)

Low installation and maintenance costs

Easy loading and transportation

Suitable for non-excavation

3.Flexiblity

Multiple connection methods, suitable for electric melting, hot melting, socket, flange connection. Electrofusion is

the most efficient, time-saving, and labor-saving welding method.

CHUANGRONG provides high-, middle- and low-end brands of electric fusion welding machines to meet the vari

-ous needs of customers.

Including RITMO and CHUANGRONG Brand.

4.Sustainability

Relatively low carbon footprint

Fully recyclable, environmentally friendly materials

Production workshop & Equippments of Electrofusion HDPE Fittings

Own over 100 sets of injection molding machine;

The largest(300,000g) domestic injection molding machine;

Over 20 units hautomation robot;

8 sets automation Electrofusion HDPE fittings production system.

Annual capacity of over 13000 tons which gives customers huge inventory support.

Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16

Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16

Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16

Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16

Details of PE/steel transition for Gas supply

Products name

PE/steel transition for Gas supply

Sizes Available

As below specification sheet in detail

PN

PN16

Material Brand

SINOPEC, BASELL, SABIC, BOROUGE etc

Executive Standard

EN 1555-3:2010

Colors Available

Black color or as request.

Packing Method

Normal export packing. by carton

Production Lead Time

Depending on the order quantity.
Normally about 2~3 weeks for 20' GP, 3~4 Weeks for a 40'GP.

Certificate

ISO, CE,BV,Factory Test Report

Supply Ability

100000 Ton/Year

Payment Method

T/T, L/C at sight

Trading Method

EXW, FOB, CFR, CIF,DDU

Specification of Electrofusion HDPE Fittings PE/steel transition for Gas supply

Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16 Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16

Specification

PE

ΦD1

Steel

ΦD2

L

mm

A

mm

B

mm

Steel Pipe

inch

Steel Pipe Diameter

mm
25×3/4” 25 27 375 80 230 3/4” 20
32×3/4” 32 27 375 80 230 3/4” 20
32×1” 32 34 375 80 230 1” 25
40×1” 40 34 375 80 230 1” 25
40×1 1/4” 40 42 375 80 230 1 1/4” 32
50×1 1/2” 50 48 375 80 230 1 1/2” 40
63×1 1/2” 63 48 375 80 230 1 1/2” 40
63×2” 63 57 375 80 230 2” 50
63×2” 63 60 375 80 230 2” 50
75×2 1/2” 75 76 570 80 370 2 1/2” 63
90×2 1/2” 90 76 570 100 370 2 1/2” 63
90×3” 90 89 570 100 370 3” 80
110×3” 110 89 570 100 370 3” 80
110×4” 110 108 570 100 370 4” 100
160×6” 160 159 560 160 310 6” 150
200 200 203 580 150 330
200 200 219 580 150 330
250 250 245 650 180 360
250 250 273 650 180 360
315 315 299 650 210 350
315 315 325 650 190 460

Applications of Electrofusion HDPE Fittings

1. Municipal water supply, gas supply and agriculture etc.
2. Commercial & Residential water supply
3. Industrial liquids transportation
4. Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks

Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16

Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16

Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16

Package of PE / Steel Transition For Gas Supply PN16

Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16

Inspection Equipment of Electrofusion HDPE fittings

Finished products get well inspection before delivery.

Electrofusion HDPE Pipe Fittings PE / Steel Transition For Gas Supply PN16

Certifications of Electrofusion HDPE Fittings

We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test,

quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products

totally reach the relevant standards from raw materials to finished products.
