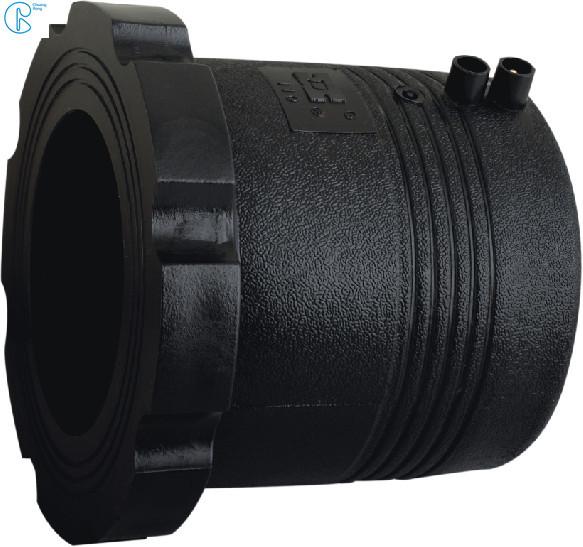

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100
CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100
CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100
CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100
CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100
CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100
Specifications
Brand Name :
CR
Model Number :
50mm~400mm
Certification :
ISO9001-2008, CE,BV,SGS,Factory test
Place of Origin :
Sichuan, China
MOQ :
1 - 499 Pieces
Price :
$2.15~231.65 USD/PCS
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
100000 Ton/Tons per Year
Delivery Time :
40GP during 2~3 weeks or as required
Packaging Details :
Standard exporting carton
Product name :
HDPE Electrofusion Fittings Flange Adapter for Gas and Water supply PN16 SDR11 PE100
Connection :
Electrofusion
Standard :
EN 12201-3:2011,EN 1555-3:2010
Material :
PE100 Virgin raw material
Technic :
Injection Molding
Application :
Gas,Water,Oil etc
Description

HDPE Electrofusion Fittings Flange Adapter for Gas and Water supply PN16 SDR11 PE100

Production Description of Electrofusion Flange Adapters

Electrofusion is a method of joining MDPE, HDPE and other plastic pipes using special fittings that have

built-in electric heating elements which are used to weld the joint together.

Electrofusion HDPE fittings(Include electrofusion reducing tee, Elbow, Reducer, End cap, Stub end etc.)

are welded by electrofusion machine to connect HDPE pipes together: The electrofusion welding machine

plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and

make HDPE melt, Which joint HDPE pipe and fittings well.

Excellent Performances of CHUANGRONG Electrofusion HDPE Fittings

1.Flexiblity

Multiple connection methods, suitable for electric melting, hot melting, socket, flange connection. Electrofu

-sion is the most efficient, time-saving, and labor-saving welding method.

CHUANGRONG provides high-, middle- and low-end brands of electric fusion welding machines to meet

the various needs of customers.

Including RITMO and CHUANGRONG Brand.

2.Sustainability

Relatively low carbon footprint

Fully recyclable, environmentally friendly materials

3.Professional Solution

1) Accept customer OEM production, large quantity customization requirements.

2) Technical support:Professional engineers and senior, special engineers provide technical support:More

than 80 Technique personnel,20 Middle class engineer,8 Senior Engineers.

3)More than 100 sets injection molding machine and the largest (300,000g)domestic injection molding ma

-chine;Over 20 units of automation robot, 8 sets automation Electrofusion fittings production system.

4)Various type(Elbow,Coupler,Tee,End Cap,Saddle,Ball Valve etc) and completed specification(Ranged

from 20-630 Electrofusion type)

5)Annual production capacity up to 13000 tons(More than 10 million pieces or more)

4.Technical Support

In order to better serve our customers, we have documented a wide range of Expertise in production and

installation of piping systems to support large and medium-sized projects.

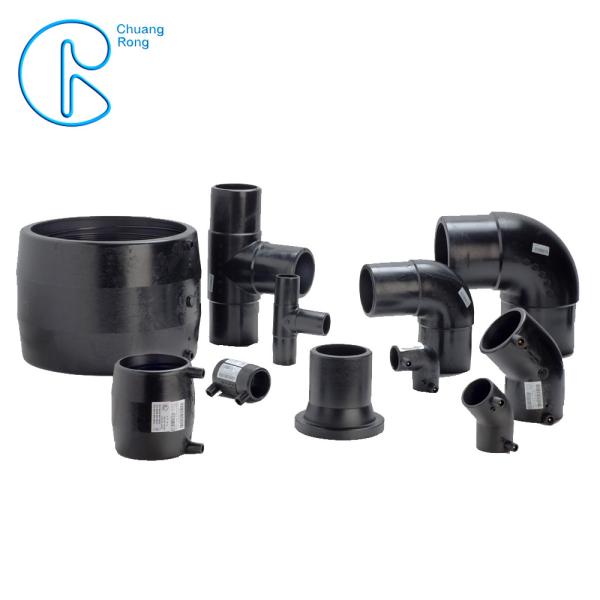

Pictures of Electrofusion HDPE fittings

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

P2:4.7 Pin(4.0 welded by Switched adaptor) P3:Printed Parameters P4:Embedded copper wire

1)Fusion Pin

Invented by fusion,the fusamtic pin provides a totally automatic method for ensuring the correct welding

parameters are used.Within each fusamatic pin is resistor.When the electrofusion box is connected to the

fitting,the fusamatic pin enables it to automatically identify the correct fusion time requited to make the joint.

All the operator has to do is press go.

2)Moulded-in welding parameters

Manual welding parameters are moulded into the body of all fusion's fitting.Information provided includes

fitting size,material(PE80 or PE100),applicable pipe SDRs,weld parameters,and pressure ratings for gas

and water applications.

3)Element&Stops

To promote joint quality,all elements are coated with polyethylene before being moulded into the fitting body.

All fittings have removable pipe stops.The stops ensure pipes cannot be inserted past the midpoint,but can

be removed for use in,for example,repair situations.

Details of Electrofusion HDPE Reducing Tee

Products name

Electrofusion HDPE Reducing Tee

Sizes Available

As below specification sheet in detail

SDR

SDR11,SDR17

PN

PN16,PN10

Material Brand

SINOPEC, BASELL, SABIC, BOROUGE etc

Executive Standard

EN 12201-3:2011,EN 1555-3:2010

Colors Available

Black color , blue color, Orange or as request.

Packing Method

Normal export packing. by carton

Production Lead Time

Depending on the order quantity.
Normally about 2~3 weeks for 20' GP, 3~4 Weeks for a 40'GP.

Certificate

ISO, CE,BV,Factory Test Report

Supply Ability

100000 Ton/Year

Payment Method

T/T, L/C at sight

Trading Method

EXW, FOB, CFR, CIF,DDU

Specification of HDPE Reducing Tee

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

Specifications

φdn

 Φdn1

Φdn2

L

mm

A

mm

B

mm

 Φd
50 89 65 116 110 17 4.7
63 102 79 115 115 18 4.7
75 121 94 125 125 20 4.7
90 139 109 140 140 23 4.7
110 172 139 145 145 25 4.7
160 228 189 152 152 28 4.7
200 289 234 174 174 30 4.7
250 339 280 123 123 32 4.7
315 390 349 127 127 39 4.7
400 513 436 153 153 39 4.7

Applications of Electrofusion HDPE fittings

1.Municipal water supply, gas supply and agriculture etc.
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

Production workshop & Equippments

Own over 100 sets of injection molding machine;

The largest(300,000g) domestic injection molding machine;

Over 20 units hautomation robot;

8 sets automation Electrofusion HDPE fittings production system.

Annual capacity of over 13000 tons which gives customers huge inventory support.

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

Certifications

We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test,

quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products

totally reach the relevant standards from raw materials to finished products.
