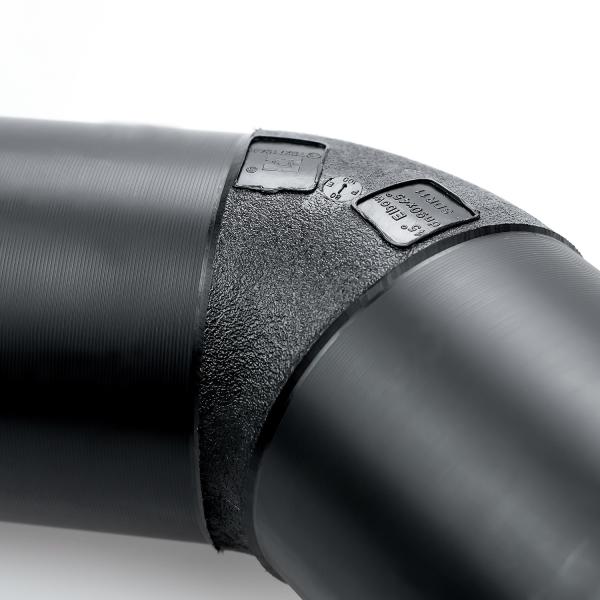

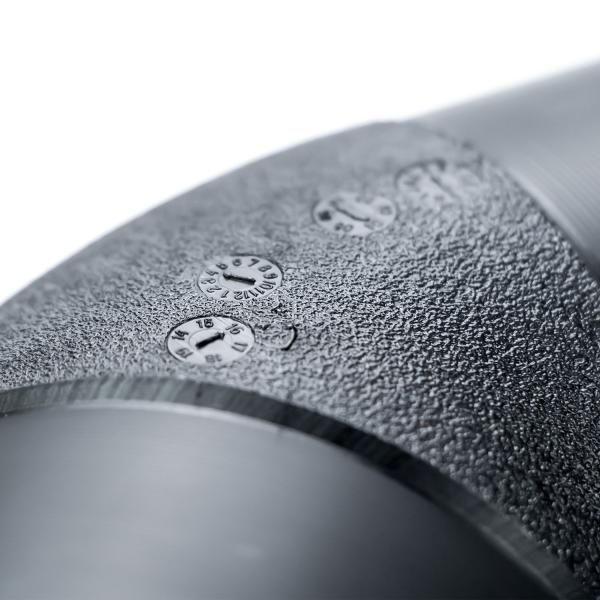

SDR11 PN16 45 Degree Elbow Hdpe Socket Fusion Fittings
SDR11 PN16 45 Degree Elbow Hdpe Socket Fusion Fittings
SDR11 PN16 45 Degree Elbow Hdpe Socket Fusion Fittings
SDR11 PN16 45 Degree Elbow Hdpe Socket Fusion Fittings
SDR11 PN16 45 Degree Elbow Hdpe Socket Fusion Fittings
SDR11 PN16 45 Degree Elbow Hdpe Socket Fusion Fittings
Specifications
Brand Name :
CR
Model Number :
90mm
Certification :
ISO,CE,SHS,WRAS .ETC
Place of Origin :
China
MOQ :
1 pc
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100000 Ton/Tons per Month
Delivery Time :
3-10 days
Packaging Details :
carton
Color :
Black,orange,Blue or as required
Material :
100% HDPE
Packing :
35 pcs/carton
MOQ :
one pc
Sample :
Available
Service :
OEM,one year warranty
Description

SDR11 PN16 Butt Fusion HDPE Water Fittings 45 Degree Elbow Bend Suppliers

HDPE is a non-polar thermoplastic resin with high crystallinity. PE has excellent resistance to most household and industrial chemicals. The polymer is not hygroscopic and has good water vapor resistance, and can be used for packaging purposes. Medium to high molecular weight grades have excellent impact resistance, even at room temperature or even at low temperatures of -40F.

Description of HDPE 45 Degree Elbow Bend
The HDPE 45 Degree Elbow Bend is connected to the HDPE pipe by heat fusion. Its working principle is to heat the two ends and press them together with the pipe to form a permanent joint, which transforms each part of the pipeline into a continuous line. This step requires the help of a butt fusion welder to weld and connect them together.
Parameter Of HDPE Reducing Tee
SDR11 PN16 45 Degree Elbow Hdpe Socket Fusion Fittings
Specifications L
mm		 A
mm		 B
mm
63x45° 160 63 80
75x45° 180 70 89
90x45° 227 79 112
110x45° 245 82 118
125x45° 244 87 118
160*45° 302 98 145
180*45° 340 105 155
200x45° 355 112 168
225*45° 390 120 170
250x45° 405 130 189
280x45° 460 140 215
315x45° 505 150 220
355x45. 530 145 235
400*45° 580 160 270
450x45° 650 155 280
500x45° 735 180 320
560x45° 760 160 330
630x45° 820 16 360

HDPE 45 Degree Elbow installation
It is safe to refill HDPE containers or water bottles as it does not leach anything. HDPE is a very STURDY plastic and does not melt unless under VERY extreme heat.
SDR11 PN16 45 Degree Elbow Hdpe Socket Fusion Fittings
SDR11 PN16 45 Degree Elbow Hdpe Socket Fusion Fittings
