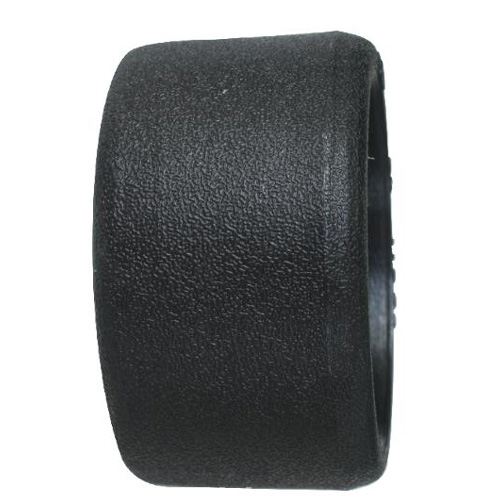

20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11
20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11
20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11
20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11
20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11
20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11
20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11
20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11
Specifications
Brand Name :
CR
Model Number :
20-75mm
Certification :
ISO9001-2008, CE
Place of Origin :
Sichuan, China
MOQ :
1 - 499 Pieces
Price :
$0.1~$3.87/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 Ton/Tons per Year
Delivery Time :
40GP during 2 weeks or as required
Packaging Details :
Standard exporting carton
Product name :
HDPE Socket Fusion Fittings End Cap for Water Supply PE100 PN16 SDR11
Size :
20-75mm
Connection :
Socket Fusion
Material :
PE100 Virgin raw material
Application :
Water Supply
Port :
China main port
Description
HDPE Socket Fusion Fittings End Cap for Water Supply PE100 PN16 SDR11
Production Description of Socket Joint Or Fusion HDPE fittings
Socket fusion is distinguished from butt-welding by using custom-shaped and -sized heating plates
rather than a basic flat surface. These heads allow for more surface contact, reducing the time nee
-ded to heat and fuse the pipe. Socket fusion joins pipe and fittings together, rather than simply join
-ing pipe to pipe. It requires less pressure than butt-welding and is more commonly used on smaller
sizes of pipe (4" or less). Socket welding has additional advantages of requiring less machinery and
is more portable than the heavier equipment required for butt fusion.

Adavantages of Socket Fusion HDPE Fittings

1.Eco-friendly and Safer Use: Non-toxic, no heavy metal additives

2.Good Corrosion Resistance/Corrosion Resistance

3.Good Flexibility

4.Excellent Shock Resistance

5.Small Flow Resistance

6.Safe and Reliable Connection Method

7. Good service life/Long Service Life, At least 50 years of usage life.

8. Impact Resistance

9. Wear Resistance/Good Wear Resistance

10. Low Temperature Resistance

11. Lower system and maintenance costs

Details of HDPE Socket Joint Fusion End Cap
Products name Socket Joint Fusion HDPE End Cap
Sizes 20-110mm
Connection Socket Joint Fusion
Executive Standard EN 12201-3:2011
Colors Available Black color , blue color, Orange or as request.
Packing Method Normal export packing. by carton
Production Lead Time Depending on the order quantity.
Normally about 15-20 days for 20ft container, 30-40 days for a 40ft container
Certificate WRAS,CE,ISO,CE
Supply Ability 100000 Ton/Year
Payment Method T/T, L/C at sight
Trading Method EXW, FOB, CFR, CIF, DDU

Specification sheet of HDPE Socket Joint Fusion End Cap

20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11

Packing & Delivery of HDPE Socket fusion End Cap
SPECIFICATION
φD		 QUANTITY
(PC)		 BOX SIZE
(W×L×D)mm

Unit Volumn

(cbm)

 NW/CTN
(KG)
20 1500 50*41*26 0.0533 7.50
25 1000 50*41*26 0.0533 10.00
32 800 50*41*26 0.0533 12.00
40 350 50*41*26 0.0533 10.50
50 280 50*41*26 0.0533 12.60
63 140 50*41*26 0.0533 11.20
75 100 50*41*26 0.0533 12.50
Application of Socket Fusion HDPE fittings

1.Municipal water supply, gas supply and agriculture etc.
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks

20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11

20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11

20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11

20-75mm Hdpe Pipe Cap , Black Socket Fusion End Cap PE100 PN16 SDR11
Certifications of Socket Joint Fusion HDPE Fittings

We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick

stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach

the relevant standards from raw materials to finished products.
