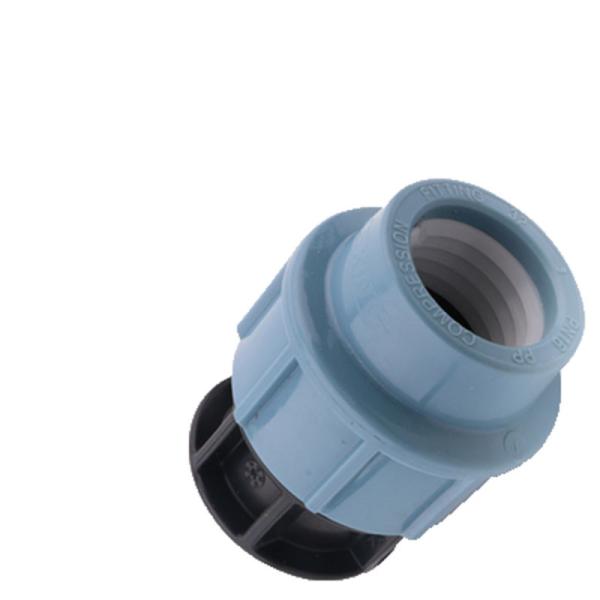

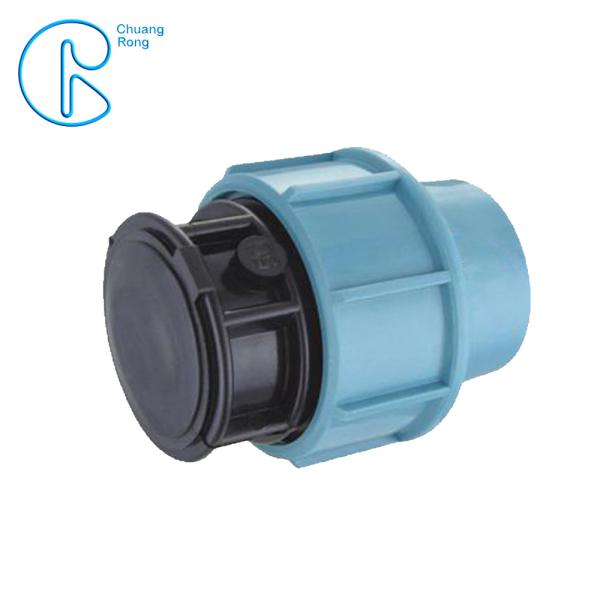

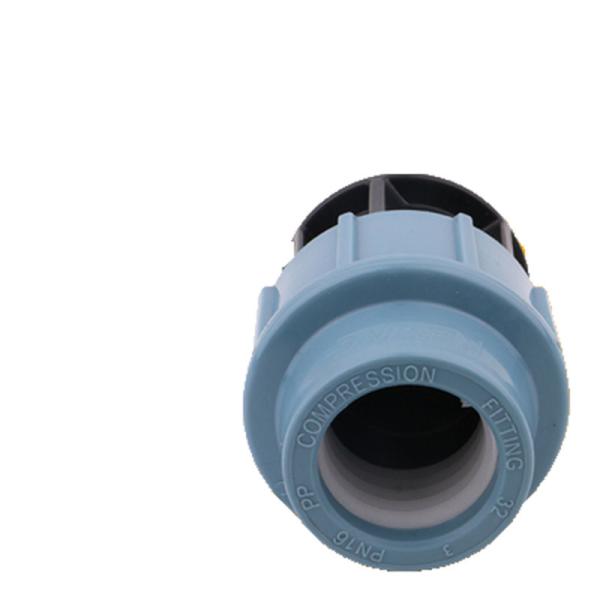

Quick Connector PP Plumbing Fittings Plastic End Cap Aaptor For Water Supply
Quick Connector PP Plumbing Fittings Plastic End Cap Aaptor For Water Supply
Quick Connector PP Plumbing Fittings Plastic End Cap Aaptor For Water Supply
Quick Connector PP Plumbing Fittings Plastic End Cap Aaptor For Water Supply
Quick Connector PP Plumbing Fittings Plastic End Cap Aaptor For Water Supply
Quick Connector PP Plumbing Fittings Plastic End Cap Aaptor For Water Supply
Quick Connector PP Plumbing Fittings Plastic End Cap Aaptor For Water Supply
Quick Connector PP Plumbing Fittings Plastic End Cap Aaptor For Water Supply
Specifications
Place of Origin :
Sichuan, China
Brand Name :
CR
Model Number :
20-110mm
Supply Ability :
200000 Piece/Pieces per Month
Packaging Details :
Carton
MOQ :
10 Pieces
Price :
negotiated
Certification :
EN ISO 9001:2000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Delivery Time :
3-10 days
Technics :
Injection Molding
Connection :
Female
Product name :
pp female adaptor
Application :
water supply,irrigation
Color :
blue,black or as requirement
Package :
Carton Box+plastic Bag
Description
Quick Connector PP Plumbing Fittings Plastic End Cap Aaptor For Water Supply
Material Detailed
Part
Material
Colour
Body
Polypropylene block copolymer(PP-B) of exceptional mechanical properties event at high temperature
black
Nut
Polypropylene with dye master of high stablility to UV rays andsolidity to heat
blue
Clinching ring
Polyacetal resin with high mechanical resistance and hardness
white
Blocking bush
Polypropylene
black
O Ring gasket
Special elastomeric acrylinitrile rubber(NBR)for alimentary use
black
Reinforcing ring
Stainless steel for female threads for 1-1/4" to 4"

Operate Temperature
Operating T[℃]
20℃
25℃
30℃
35℃
40℃
45℃
PFA[bar]
16
14.9
13.9
12.8

11.8
10.8
PFA[bar]
10
9.3
8.7
8
7.4
6.7

Assembly Instruction
Quick Connector PP Plumbing Fittings Plastic End Cap Aaptor For Water Supply
A Chamfer the pipe with beveler tool

B Slackend the ring nut with out removing from the body check that O-ring and clip ring are in proper position.

C Insert the pipe end with out tightening the ring nut.Push the fitting until the pipe oversteps the O-ring and reaches the stop

D Hand tighten the ring unt the tighten further with a strap/chain wrench.

D75-110mm recommended

A After preparing pipe ends unscrew the fitting.Then remove all internal components:the ring nut,the clip ring,the packing presser bush and the O-ring
B Push the pipe into the fittings until it reaches the slop.Insert the O-ring and position the same by inserting the packing-pressure bush
C Displace the clip ring onto the pipe as shown in picture C.
D Slide the ring nut over the clip ring and tighten with a strap/chain wrench in order to complete the assembly.

Package Details
D
g.w.
n.w.
CTN
20
13.44
12.74
260
25
11.99
11.29
166
32
11.62
10.92
120
40
10.93
10.23
66
50
12.76
12.06
45
63
9.94
9.24
20
75
9.82
9.12
16
90
12.16
11.46
12
110
22.18
21.48
12
