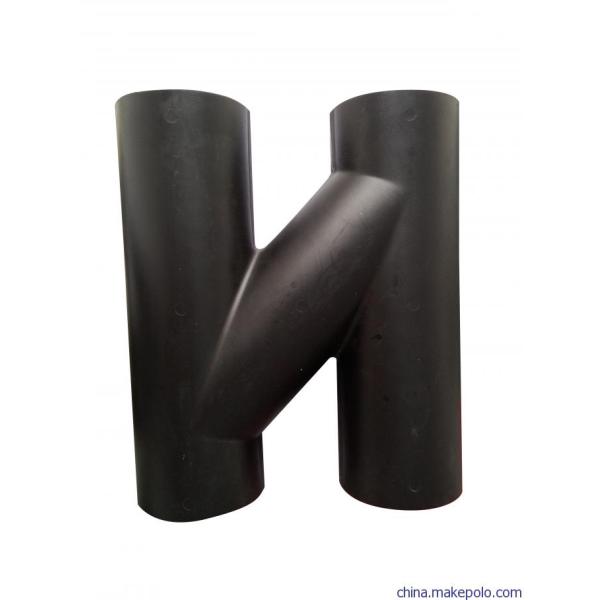

Description of HDPE Siphon Fittings
CHUANGRONG HDPE siphon pipes provide a one-stop solution for drainage.
Contains HDPE siphon pipes, fittings, and metal fittings for fixing HDPE piping systems.

Siphon pipes and fittings are made of high-density polyethylene, it has significant advantages over
traditional drainage systems. CHUANGRONG HDPE siphon pipe system has excellent mechanical
properties, physical properties and chemical properties. High impact and abrasion resistance
Resistors are very flexible and offer multiple connection options.

These comprehensive characteristics make it very suitable as a drainage material,

It satisfies the needs of building drainage well, and the stable quality ensures the safety of drainage
solutions.

Adavantages of Siphon HDPE Pipe System
1.CHUANGRONG High Density Polyethylene HDPE: Density 951 – 955 kg/m3
The density of polyethylene can be 910 – 960 kg / m3. CHUANGRONG fittings and pipes
Weighing 955.29 kg / m3, its characteristics not only have durability. And light weight, very convenient
for transportation and installation.

2.Resistance to cold
CHUANGRON siphon pipeline has anti-freezing performance. When the water in the pipeline is frozen,
ordinary pipeline will freeze and crack, but CHUANGRONG HDPE will not.

3.Resistance to radioactive effluents
There is no risk of damage caused by medical waste. However, for more information on specific applica
-tions, ask the manufacturer.

4.Heat expansion
The thermal expansion of HDPE also needs to be considered in the design and installation. As a rule
Thumb, for every 50 ° C increase in temperature, 15 mm expansion per meter of pipe
Can be expected.

5.Resistance to impact

6.CHUANGRONG HDPE is also very suitable for installation in
The parking lot and pedestrian zone are indestructible at room temperature. Its impact resistance is
very high, Even at extremely low temperatures (down to about -40 ° C).
6.1)System principle:The working principle of the siphon drainage system depends on the special design

of the rainwater hopper implement separation, So that the rain is flowing state in theriser, when the rain
reached a certain capacity in the riser, siphonage is generated.In the process of rainfall, due to the cont
-inuous siphonage, the whole system is able toquickly rule out water from the roof. Butt Fusion Welding
and Electrofusion Welding.
6.2) System composition: The siphon drainage system is mainly composed of rainwater head, fastening
systems,polyethylene pipe and the corresponding design software
6.3) Advantage of system:Compared with the traditional gravity drainage system, the siphon drainage
system without slope;less material; the construction are greatly reduced; reduction of pipe diameter;
save installation space;pipe has self-cleaning function;design, construction is simple and quick;widely
applicable to various purposes buildings.
6.4) Features:1, black PE pipeline uv resistant, ageing resistance, long service life of 50 years.
7. Smooth inner wall, and does not change with time, small frictional resistance,save energy, the pres
-sure loss about 30% smaller than the steel tube,can choose smaller than steel pipe diameter. Health
performance is good, no additives, no possibility of pollution of drinking water, ISO standard grading
polyethylene material level 0 (the lowest), no mildew material, compared with some other commonly
used plastic material of polyethylene is much mildew resistance, use for a long time also not fouling.

8. Polyethylene pipe can be welded joint with pipe become an organic whole, without the possibility
of joint leakage, water saving, reducing operation cost and maintenance cost examination, pipe can
be manufactured in any length, but the flexible layout, saving fittings.
9. PE pipe installation available welding or fused to form a completely closed seepage control system.
10. Light, easy to install, handling, connection, construction is convenient and reliable.
11. Has good flexibility, small can winding pipe, pipe winding along the ditch, can resist formation geolo
-gical change, can be used as liner repairing old pipeline.

12. Good low temperature resistance, corrosion resistance, long life, buried pipeline within to 40 °C and
40 °C.
