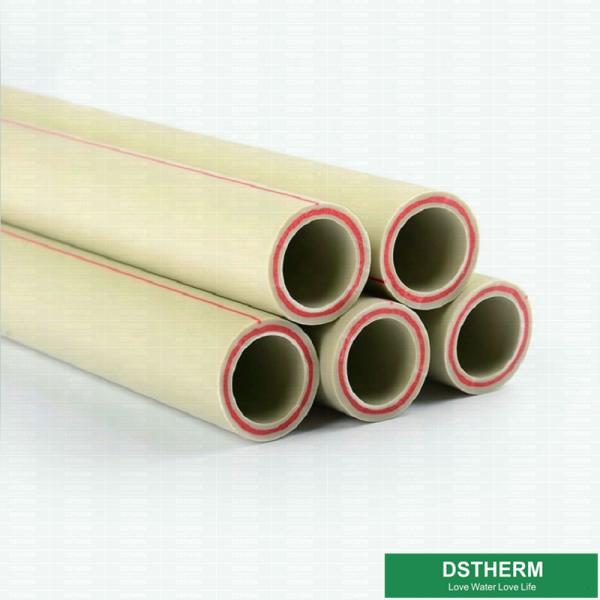

PPR Fiberglass Composite Pipe Furring Resistance For Cold / Hot Water Supply
PPR Fiberglass Composite Pipe Furring Resistance For Cold / Hot Water Supply
PPR Fiberglass Composite Pipe Furring Resistance For Cold / Hot Water Supply
PPR Fiberglass Composite Pipe Furring Resistance For Cold / Hot Water Supply
PPR Fiberglass Composite Pipe Furring Resistance For Cold / Hot Water Supply
PPR Fiberglass Composite Pipe Furring Resistance For Cold / Hot Water Supply
PPR Fiberglass Composite Pipe Furring Resistance For Cold / Hot Water Supply
PPR Fiberglass Composite Pipe Furring Resistance For Cold / Hot Water Supply
Specifications
Brand Name :
DSTHERM
Model Number :
20-160mm
Certification :
ISO9001
Place of Origin :
Zhejiang China
MOQ :
Negotiation
Price :
Negotiation
Supply Ability :
20days /20 feet container , 35days/40 HQ
Delivery Time :
20 days
Packaging Details :
4m/PCS polybag
Product Name :
Glass Fiber Tube
Color :
Color customization
Size :
20-160mm
Advantage :
can work under high temperature and pressure
Application :
Cold or hot water supply
Feature :
High Pressure
Work Pressure :
PN 25
Connection :
Hot melting
Description

Glass Fiber Tube ISO9001 DIN8077/8078 Color customization size 20-160

PPR Fiberglass Composite Pipe Furring Resistance For Cold / Hot Water Supply

PP-R Fiber Composite pipe

OEM Available

Material: PPR HYOSUNG R200P from Korea,

Standard: ISO 15874: DIN8077-8078

Production temperature: -40 - +95°C

Pressure Rating: PN10,PN12.5,PN16 ,PN20
Connection:socket fusion joint,electro fusion joint or transition joint

 PN 1.25MPa PN 1.6MPa PN 2.0MPa PN 2.5MPa

Outer Diameter

dn(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)
20 2.0 2.3 2.8 3.4
25 2.3 2.8 3.5 4.2
32 3.0 3.6 4.4 5.4
40 3.7 4.5 5.5 6.7
50 4.6 5.6 6.9 8.4
63 5.8 7.1 8.7 10.5
75 6.9 8.4 10.3 12.5
90 8.2 10.1 12.3 15.0
110 10.0 12.3 15.1 18.3
160 14.6 17.9 21.7 26.6

Items Index
Pipe Material Pipe Article
Density G/cm³20℃ 0.89-0.91
Heat Transmitting Index W/m.k(20℃) 0.23-0.24
Thread Expand Index Mm/m.k 0.14-0.16
Flip Thread Mode Mete W/m²(20℃) 800
Extend Intendity Mpa More than 20
Minitication in Portrait 135℃, 2h% Less than 2
Swing and Beat Impact Test 15J, 0℃, 2H (disrepair rate)% Less than 10

Features:

1. The service life is so long(The PPR cold and hot water pipe life can over 50 years in the stated condition.)

2. High temperature resistance.(Under the stated pressure condition,the temperature is 0-90°for PPR,the service life is so long.)

3. Chemaical corrosion resistance,furring resistance,increase current.The chemistry of PPR can resist chemical ionization in water,stop furring,increase by 10% compared to plate zinc.

Specification:

1. Complete items:pipe,coupling,tee,elbow,cross.

2. Size(dia):20~160mm

3. Pressure grade:S5PN1.25 S4PN1.60 S3.2PN2.0 S2.5PN2.5

4. Colour: green, white,grey or according to customers request.

Applications:

1 ) Cold, hot water supply facilities for public buildings

2 ) Food, chemical, electronic industrial pipeline networks such as pipeline networks for transporting all kinds of corrosive liquid (such as acid, buck and deionized water )

3 ) Drinking water production system pipeline networks such as pure water and mineral water

4 ) Air conditioning facility pipeline

5 ) Compressed gas pipeline networks for industry

6 ) Pipeline network for swimming pool

7 ) Pipeline network for solar energy facility

8 ) Agriculture and garden production transporting system

We can supply products of different colors as per customer's request.
