Specifications
Brand Name :
DSTHERM
Model Number :
20-110mm
Certification :
CE / ISO
Place of Origin :
Zhejiang China
MOQ :
3000 Meters
Price :
Negotiation
Supply Ability :
10 days /20 feet container , 15 days/40 HQ container
Delivery Time :
10 days
Packaging Details :
Nylon Bag
Material :
PP-R, PPR(100% imported ppr material)
Color :
Color customization
Size :
20-110mm
Standard :
DIN8077/8078
Head Code :
Rounds
Application :
for cold/hot water pipes connect and water supply
Length :
4m / 6m / or customized
Package :
Nylon Bag with logo
Pressure :
PN12.5-PN25
Description

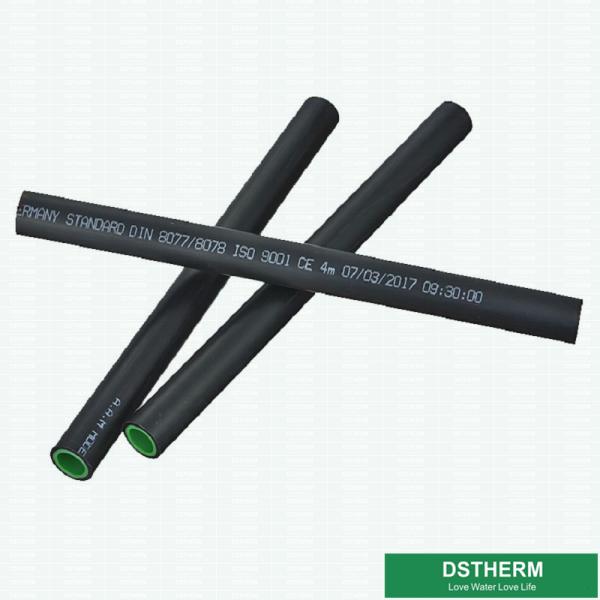

New Fashion Low Price ISO Certificate PPR Plastic Water Tube 20-110mm

Material: PPR

size: 20-110mm

Pressure Rating: PN1.25,PN1.6,PN2.0,PN2.5 Mba

Colour: green ,light grey, white or other colors on request
Connection:socket fusion joint,electro fusion joint or transition joint
Standard: din 8077-8078

Production temperature:-45 to +95 degree cesius

Parameters of the PPR Pipe SDR11/S5/PN10
Nominal Outer Diameter Diameter Wall Thickness Inner Diameter
20 20 2.0 16.0
25 25 2.3 20.4
32 32 2.9 26.2
40 40 3.7 32.6
50 50 4.6 40.8
63 63 5.8 51.4
75 75 6.8 61.4
90 90 8.2 73.6
110 110 10 90.0
160 160 14.6 130.8

Parameters of the PPR Pipe SDR9/S4/PN12.5
Nominal Outer Diameter Diameter Wall Thickness Inner Diameter
20 20 2.3 15.4
25 25 2.8 19.4
32 32 3.6 24.8
40 40 4.5 31.0
50 50 5.6 38.8
63 63 7.1 48.8
75 75 8.4 58.2
90 90 10.1 69.8
110 110 12.3 85.4
160 160 17.9 124.2

Parameters of the PPR Pipe SDR7.4/S3.2/PN16
Nominal Outer Diameter Diameter Wall Thickness Inner Diameter
20 20 2.8 14.4
25 25 3.5 18.0
32 32 4.4 23.3
40 40 5.5 29.0
50 50 6.9 36.2
63 63 8.6 45.6
75 75 10.3 54.4
90 90 12.3 65.4
110 110 15.1 79.8

Parameters of the PPR Pipe SDR6/S2.5/PN20
Nominal Outer Diameter Diameter Wall Thickness Inner Diameter
20 20 3.4 13.2
25 25 4.2 16.6
32 32 5.4 21.2
40 40 6.7 26.6
50 50 8.3 33.4
63 63 10.5 42.0
75 75 12.5 50.0
90 90 15.0 60.0
110 110 18.3 73.4

Applications

1) Cold and hot water supply systems for civil and industrial constructions, e.g. in

residential buildings, hospitals, hotels, school and office buildings, ship building

2) Drinking water systems and food industry pipe works

3) Central air conditioning system

4) Irrigating system for gardens and green houses

5) Public and sport facilities such as swimming pools and stadiums

6) For rainwater utilization systems

Advantages:

1, High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.

2, Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.

Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.

3, Corrosion Resistant: resist chemical matters or electron chemical corrosion.

4, Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.

5, Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.

6, Long Life: more than 50 years under normal conditions.

7, Recycled and Environment-friendly.

Payment term :LC ,TT .

Delivery time : 20days /20 feet container , 35days/40 HQ

Samples lead time: 3-7 days

MOQ: 100-4000pcs

Package: pcs/polybag, 4 meters/tube or as client's request
