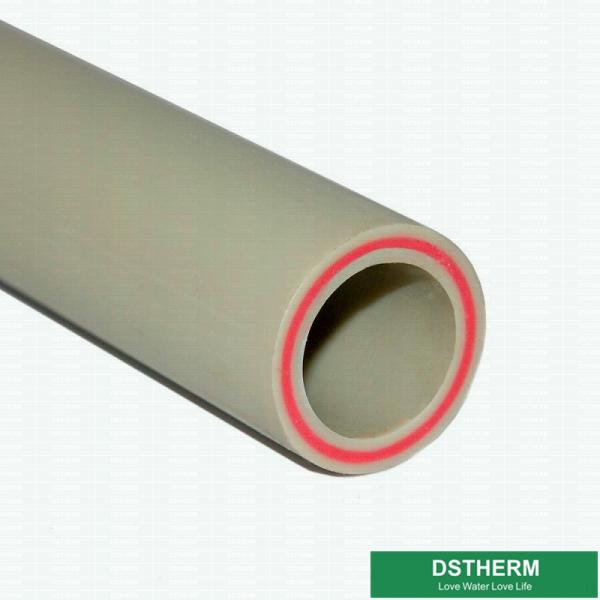

PPR Composite Fiberglass Reinforced Pipe PN25 High Temperature Resistance
PPR Composite Fiberglass Reinforced Pipe PN25 High Temperature Resistance
Specifications
Brand Name :
DSTHERM
Model Number :
20-160mm
Certification :
ISO9001
Place of Origin :
Zhejiang China
MOQ :
Negotiation
Price :
Negotiation
Supply Ability :
20days /20 feet container , 35days/40 HQ
Delivery Time :
20 days
Packaging Details :
4m/PCS polybag
Product Name :
Glass Fiber Reinforces PP-R Composite Pipe
Color :
Color customization
Size :
20-160mm
Standard :
din 8077-8078
Application :
Cold or hot water supply
Feature :
High Pressure
Advantage :
With Fiberglass,Working Under High Temperature
Connection :
Hot melting
Sample :
Available
Description

PPR Composite Fiberglass Reinforced Pipe PN25 High Temperature Resistance

Glass Fiber Reinforces PP-R Composite Pipe ISO9001 DIN8077/8078 Color customization size 20-160

PP-R Fiber Composite pipe

OEM Available

Material: PPR HYOSUNG R200P from Korea,

Standard: ISO 15874: DIN8077-8078

Production temperature: -40 - +95°C

Pressure Rating: PN10,PN12.5,PN16 ,PN20
Connection:socket fusion joint,electro fusion joint or transition joint

 PN 1.25MPa PN 1.6MPa PN 2.0MPa PN 2.5MPa

Outer Diameter

dn(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)
20 2.0 2.3 2.8 3.4
25 2.3 2.8 3.5 4.2
32 3.0 3.6 4.4 5.4
40 3.7 4.5 5.5 6.7
50 4.6 5.6 6.9 8.4
63 5.8 7.1 8.7 10.5
75 6.9 8.4 10.3 12.5
90 8.2 10.1 12.3 15.0
110 10.0 12.3 15.1 18.3
160 14.6 17.9 21.7 26.6

Items Index
Pipe Material Pipe Article
Density G/cm³20℃ 0.89-0.91
Heat Transmitting Index W/m.k(20℃) 0.23-0.24
Thread Expand Index Mm/m.k 0.14-0.16
Flip Thread Mode Mete W/m²(20℃) 800
Extend Intendity Mpa More than 20
Minitication in Portrait 135℃, 2h% Less than 2
Swing and Beat Impact Test 15J, 0℃, 2H (disrepair rate)% Less than 10

Features:

1. The service life is so long (The PPR cold and hot water pipe life can over 50 years in the stated condition.)

2. High temperature resistance.(Under the stated pressure condition,the temperature is 0-90°for PPR,the service life is so long.)

3. Chemaical corrosion resistance,furring resistance,increase current.The chemistry of PPR can resist chemical ionization in water,stop furring,increase by 10% compared to plate zinc.

Applications:

1. Cold and hot water supplying system for civil and industrial construction.

2. Traditional heating systems.

3. Dringking and air condition systems.

4. Good economic.Light weight.Easy and fast installation saving your cost.

5. It iis a safety healthy and green material.(That PPR pipe is not poisonous,suitable for dringing piping completely)

Specification:

1. Complete items:pipe,coupling,tee,elbow,cross.

2. Size(dia):20~160mm

3. Pressure grade:S5PN1.25 S4PN1.60 S3.2PN2.0 S2.5PN2.5

4. Colour: green, white,grey or according to customers request.

5. Packing: pipe is packed into polyester bag.The fittings are packed into plastic bag inner and carton outside.

6. Material: PPR

PPR Composite Fiberglass Reinforced Pipe PN25 High Temperature ResistancePPR Composite Fiberglass Reinforced Pipe PN25 High Temperature Resistance
