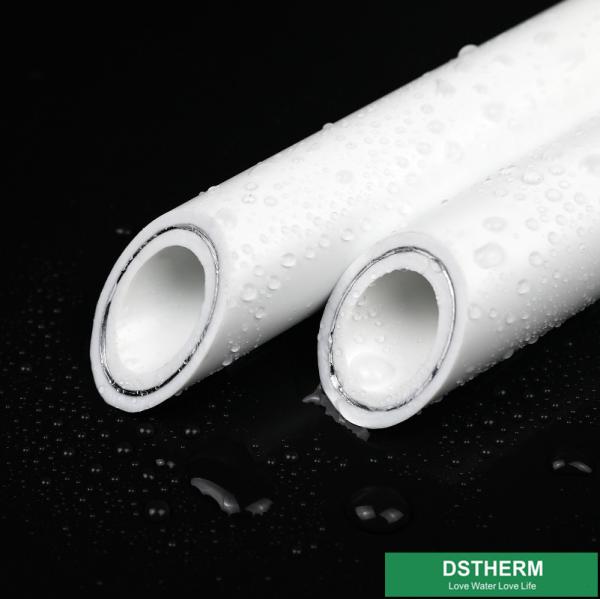

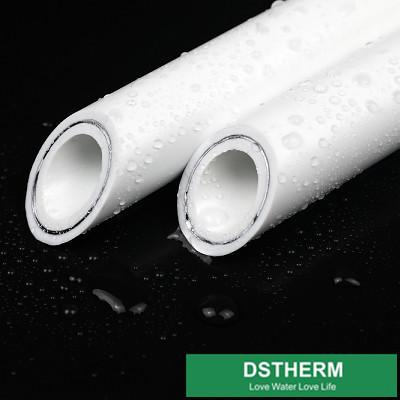

Pn25 Industrial PPR Aluminum Pipe White Color For Irrigation Project
Pn25 Industrial PPR Aluminum Pipe White Color For Irrigation Project
Pn25 Industrial PPR Aluminum Pipe White Color For Irrigation Project
Pn25 Industrial PPR Aluminum Pipe White Color For Irrigation Project
Specifications
Brand Name :
DSTHERM
Model Number :
20-160mm
Certification :
ISO9001
Place of Origin :
Zhejiang China
MOQ :
Negotiation
Price :
Negotiation ISO9001 certification
Supply Ability :
20days /20 feet container , 35days/40 HQ
Delivery Time :
20 days
Packaging Details :
4m/PCS polybag
Product Name :
Aluminum stabilized tube
Color :
Color customization
Size :
20-160mm
Standard :
din 8077-8078
Class :
ppr al pe aluminum composite pipe
Pressure :
pn10 pn12.5 pn16 pn20 pn25
Temperature :
-40---95C, heat resistant
Function :
plumbing materials adapters for water supply sytem
Length :
4m or as your request
Description

Pn25 Industrial PPR Aluminum Pipe White Color For Irrigation Project

Aluminum stabilized tube ISO9001 DIN8077/8078 Material Polypropylene Color customization 20-160mm

Product: PP-R Aluminum Composite pipe
Material: 100% PPR
Size: 16-160mm
Certificate:ISO9001
Standard: ISO15874; DIN8077/8078
Working place: -40°-95°

Series SDR9/S4/PN16
Nominal Outer
Diameter		 Diameter Wall Thickness Inner Diameter Overall Wall
Thickness		 Overall Outer
Diameter
20mm 20.0 2.3 15.4 3.4 21.9
25mm 25.0 2.8 19.4 4.0 27.1
32mm 32.0 3.6 24.8 4.8 34.1
40mm 40.0 4.5 31.0 5.8 42.3
50mm 50.0 5.6 38.8 6.9 52.3
63mm 63.0 7.1 48.8 8.4 65.3
75mm 75.0 8.4 58.3 9.6 77.8
90mm 90.0 10.1 70.0 11.5 93.3
110mm 110.0 13.7 85.8 13.7 114.0





Series SDR7.4/S3.2/PN20
Nominal Outer
Diameter		 Diameter Wall Thickness Inner Diameter Overall Wall
Thickness		 Overall Outer
Diameter
20mm 20.0 2.8 14.4 3.9 21.9
25mm 25.0 3.5 18.0 4.7 27.1
32mm 32.0 4.5 23.0 5.7 34.1
40mm 40.0 5.6 28.8 6.8 42.3
50mm 50.0 6.9 36.2 8.2 52.3
63mm 63.0 8.6 45.6 10.0 65.3
75mm 75.0 10.3 54.4 11.5 77.8
90mm 90.0 12.3 65.4 13.7 93.3
110mm 110.0 15.1 79.9 16.6 114.0


Series SDR6/S2.5/PN25
Nominal Outer
Diameter		 Diameter Wall Thickness Inner Diameter Overall Wall
Thickness		 Overall Outer
Diameter
20mm 20.0 3.4 13.2 4.5 21.9
25mm 25.0 4.2 16.6 5.4 27.1
32mm 32.0 5.4 21.2 6.7 34.1
40mm 40.0 6.7 26.6 8.0 42.3
50mm 50.0 8.3 33.2 9.6 52.3
63mm 63.0 10.5 42.0 11.8 65.3
75mm 75.0 12.5 49.8 13.8 77.8
90mm 90.0 15.0 59.8 16.4 93.3
110mm 110.0 18.3 73.2 19.8 114.0


Application:

1. Hot water and cold water pipe for production and domestic use .

2. Heating pipe , pipe used for heating installation on floor and wall , snow melting devices for building

3. Pipe used for solar energy water heater

4. Coal gas and natural gas pipe

5. Drinking water within a cetin district, pipe used for reclaimed water project

6. Pipe used for central air conditioner, fan coil

7. Industrial pipes used for oil transportation and cooling fluid

8. Pipes used for sleeve of wire or cable.

9. Pipe used for irrigation project in agriculture or garden.


Advantages
1. Light weight, convenient to transport and handle
2. High strength
3. Less resistance
4. Corrosion resistance
5. No pipe furring
6. Sound insulation
7. Easy to install
8. Long lifespan
9. Low cost
10. Long usage life of at least 50 years

Pn25 Industrial PPR Aluminum Pipe White Color For Irrigation ProjectPn25 Industrial PPR Aluminum Pipe White Color For Irrigation Project
