Pvc pc pmma plastic Pipe Haul Off Machine Profile Haul Off Machine sheet extrusion Machine
Pvc pc pmma plastic Pipe Haul Off Machine Profile Haul Off Machine sheet extrusion Machine
Pvc pc pmma plastic Pipe Haul Off Machine Profile Haul Off Machine sheet extrusion Machine
Pvc pc pmma plastic Pipe Haul Off Machine Profile Haul Off Machine sheet extrusion Machine
Pvc pc pmma plastic Pipe Haul Off Machine Profile Haul Off Machine sheet extrusion Machine
Pvc pc pmma plastic Pipe Haul Off Machine Profile Haul Off Machine sheet extrusion Machine
Pvc pc pmma plastic Pipe Haul Off Machine Profile Haul Off Machine sheet extrusion Machine
Pvc pc pmma plastic Pipe Haul Off Machine Profile Haul Off Machine sheet extrusion Machine
Specifications
Brand Name :
ZHMC Machiney
Model Number :
PLC Cutter
Certification :
CE
Place of Origin :
China
MOQ :
one unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 + unit + Per month
Delivery Time :
20
Packaging Details :
Wooden package
Electrical Parts :
Siemens, ABB, Schneider
Feeding Knive :
Pneumatic type
Control :
PLC
Motor :
Siemens
Application :
Plastic cutting
Warranty :
1 Year
Key Selling Points :
High-accuracy
Voltage :
380V 50HZ 3P
Description

Pvc pc pmma plastic Pipe Haul Off Machine Profile Haul Off Machine sheet extrusion Machine

Specification

1. Drawing speed: 0-5m/min,Adopting frequency conversion speed regulation, can adjusting according to your requirement.

2. The top and bottom chains are controlled by electric motor and gear box to ensure smooth movement.

3. It’s synchronizing step speed for drawingric motor and gear box to ensure smooth movement.

Application

1. PVC pipe production line mainly used in producing various diameters and wall-thickness of PVC/UPVC/CPVC pipes for agricultural and constructional plumbing, cable laying etc.

2. The whole PVC pipe production line include: Material charger, SJSZ series conical twin screw extruder, pipe mould, vacuum calibration tank, haul-off machine, cutter and stacker; pipe printer and PVC Pipe Belling machine for customers optional choice.

3. Clients also can choose double PVC pipe production line to make small size PVC pipes from 16mm up to 50mm.

PVC Plastic Pipe Knife-Lift Cutter/Cutting Machine

20-63mmCutter machine
1 Cutting method Hydraulic Planet cutting
2 Cutting Pipe range Φ75-Φ250
3 Revolution period 0.75-7(s)
4 Movable bracket moving distance 1200mm
5 Max cutting thickness 30mm
6 Revolution motor power 1.1kw
7 Cutting motor power 3kw
8 Dust-absorption fan power 1.5kw
9 Feeding Motor Power 0.55KW(Hydraulic)
10 Cutting method Cutting by saw blade/ Manual/ automatically
11 Central height of cutting pipe 1050±50mm
12 Cutting precision 1:100
13 The roughness of cutting faces 12.5
14 Speed-adjusting method of revolution Adjusting speed by Frequency conversion (Simens)
15 Pneumatic parts Taiwan
16 Controlling method of electronic appliance PLC control

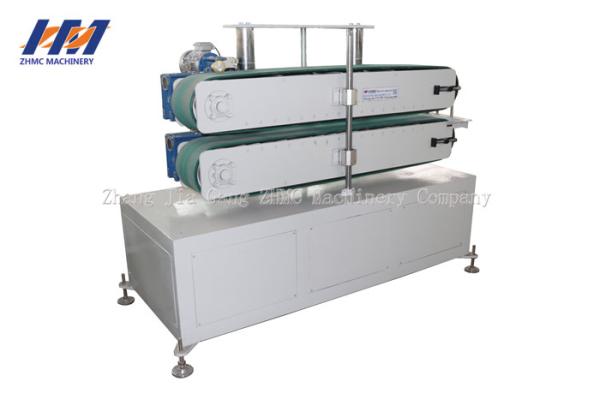

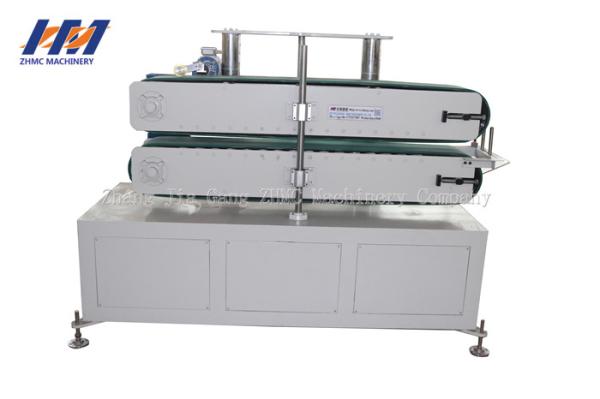

Detailed Picture

Pvc pc pmma plastic Pipe Haul Off Machine Profile Haul Off Machine sheet extrusion Machine
